Engine Control System (Pr25DD) (2 Of 2)
›
Removal And Installation
›
ECM
›
ECM : Exploded View
ECM : Exploded View

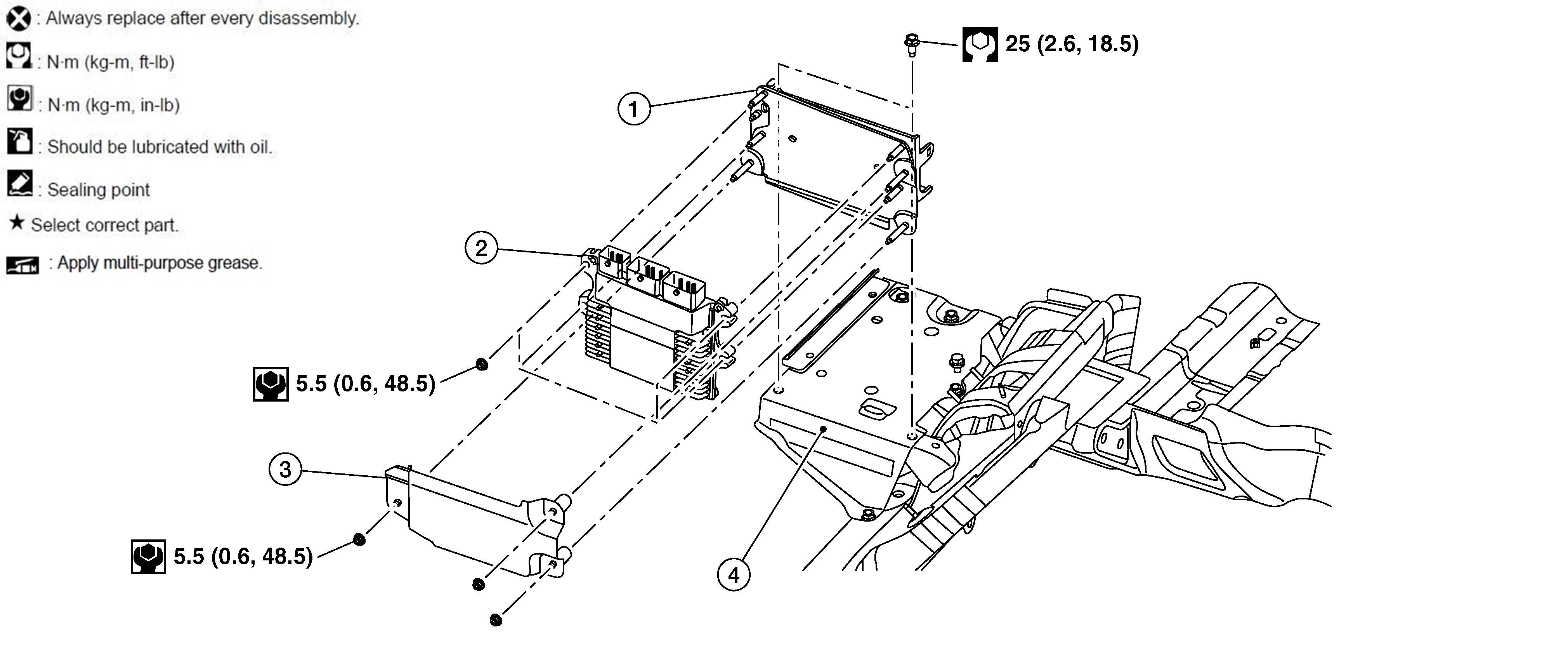

Fig 1: ECM With Torque Specifications
Courtesy of NISSAN
1.
Rear bracket
2.
ECM
3.
Front bracket
4.
Battery tray
Courtesy of NISSAN
