Component Location

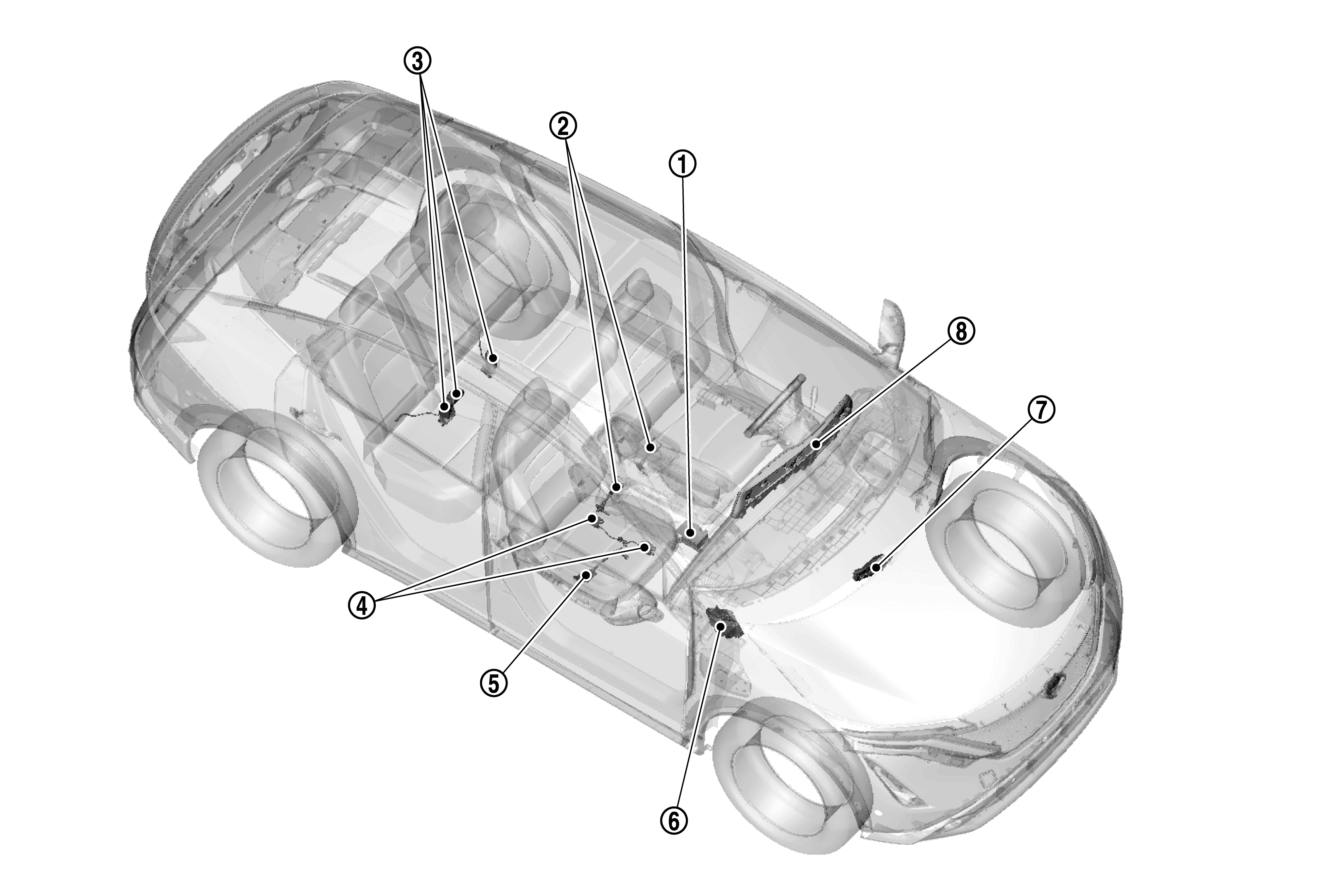

GNSDB153625Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Air bag diagnosis sensor unit Refer to Component Location SYMBOL Seat belt buckle switch (driver side/passenger side) SYMBOL Rear seat belt buckle switch (LH/RH/center)
SYMBOL Occupant detection system sensor SYMBOL Occupant detection system control unit SYMBOL BCM Refer to Component Location
SYMBOL VCM Refer to Component Location SYMBOL Combination meter
