Rear Power Window Motor

COMPONENT FUNCTION WITHIN SYSTEM

Courtesy of NISSAN NORTH AMERICA, INC.

• Power window motor controls door glass.
• Power window motor controls AUTO operation.
• Power window motor controls anti-pinch function.

INDIVIDUAL COMPONENT FUNCTION

Opens/closes door glass.

COMPONENT OPERATION

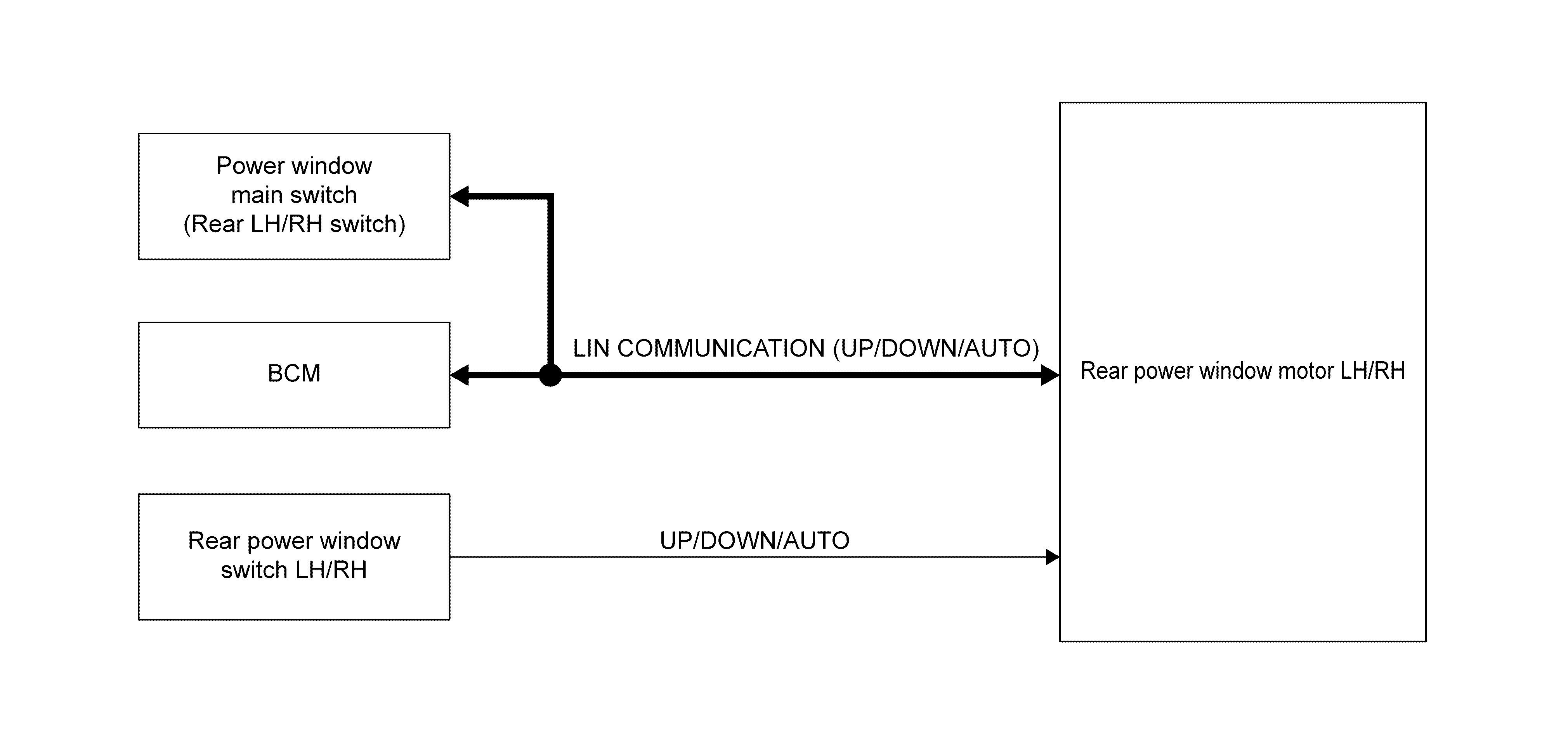

Rear power window motor LH/RH receives signal from rear power window switch LH/RH, and from power window main switch and BCM via LIN communication, then opens/closes door glass.

Courtesy of NISSAN NORTH AMERICA, INC.

COMPONENT LOCATION

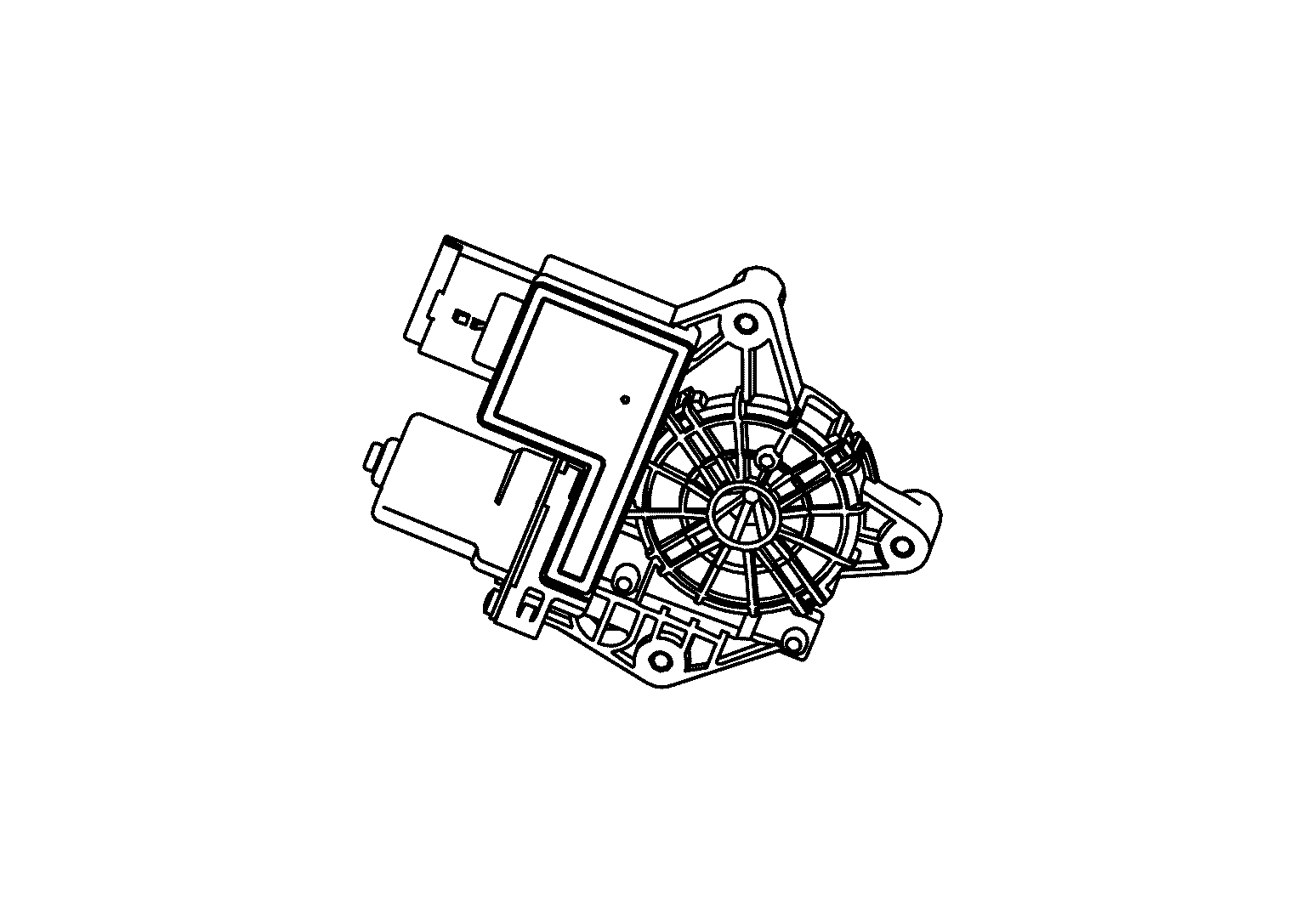

Rear power window motor LH/RH is installed to rear door regulator LH/RH. Refer to Component Location .
