Component Location

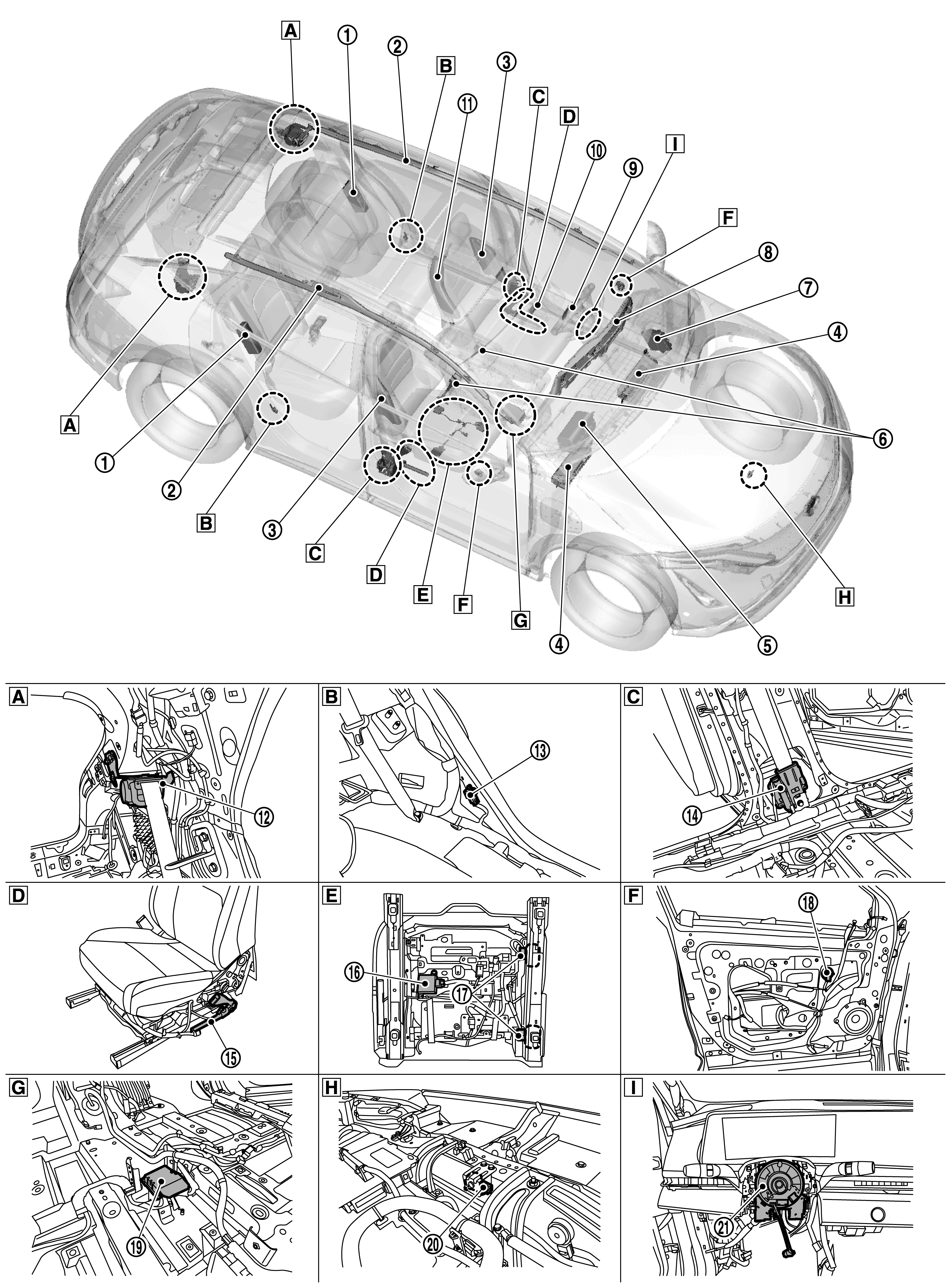

GNSDB151906Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Rear side air bag module SYMBOL Curtain air bag module SYMBOL Front side air bag module
SYMBOL Knee air bag module SYMBOL Passenger air bag module SYMBOL Seat belt buckle switch
SYMBOL BCM Component Location SYMBOL Combination meter (SRS air bag warning lamp) SYMBOL Driver air bag module
SYMBOL Front passenger air bag OFF indicator SYMBOL Front center air bag module SYMBOL Rear seat belt pre-tensioner
SYMBOL C-pillar satellite sensor SYMBOL Front seat belt pre-tensioner SYMBOL Lap pre-tensioner
SYMBOL Occupant detection system control unit SYMBOL Occupant detection system sensor SYMBOL Front door satellite sensor
SYMBOL Air bag diagnosis sensor unit SYMBOL Crash zone sensor SYMBOL Spiral cable
SYMBOL View with luggage side upper finisher removed SYMBOL View with luggage side lower finisher removed SYMBOL View with center pillar lower garnish removed
SYMBOL View with outside seat cushion finisher removed SYMBOL Backside of passenger seat cushion SYMBOL View with front door finisher removed
SYMBOL View with rear ventilator duct removed SYMBOL Radiator core support SYMBOL View with steering wheel removed
