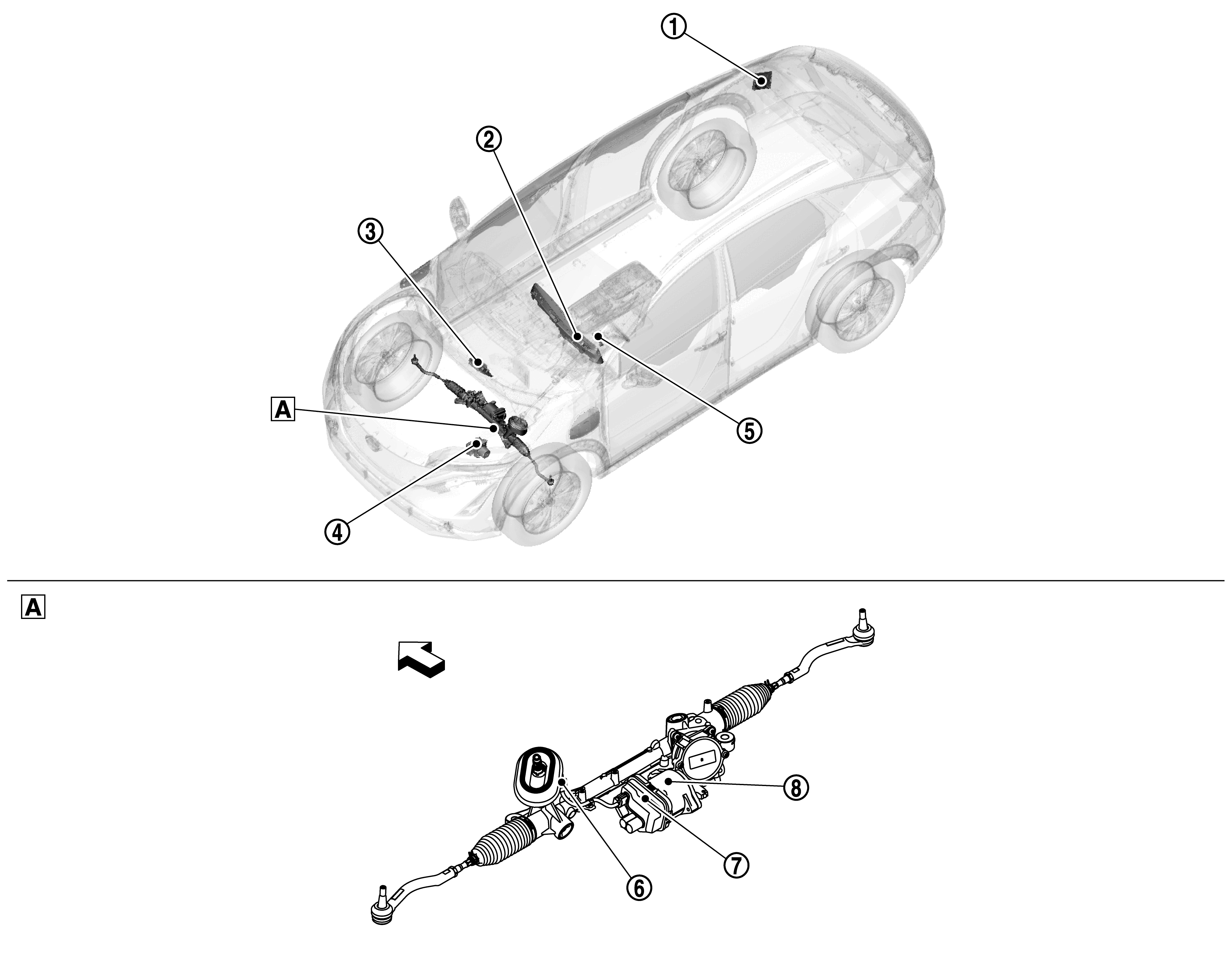

ADAS control unit 2. Refer to Component Part Location
for detailed installation location. |
 |
Combination meter. Refer to Component part location
for detailed installation location. |
 |
VCM. Refer to Component part location
for detailed installation location. |
 |
ABS actuator and electric unit (control unit). Refer to Component part Location
. for detailed installation location. |
 |
Steering angle sensor. Refer to Component part Location
. for detailed installation location. |
 |
Power steering torque sensor |
 |
Power steering control module |
 |
EPS motor |
 |
Vehicle front |
