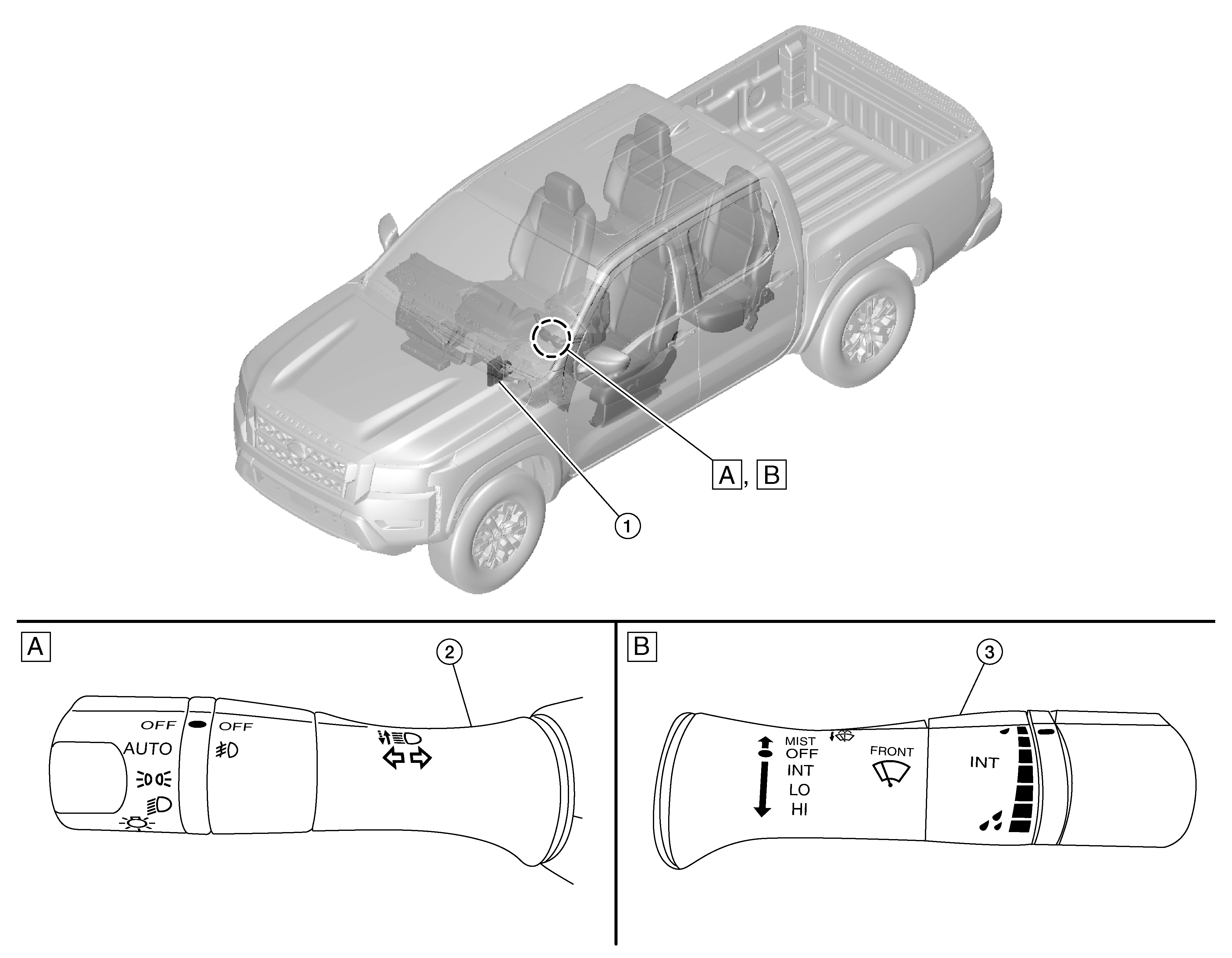

Component Location
NOTE:
Crew cab shown (King cab similar)
| A. | Combination switch (lighting and turn signal) (with front fog lamps shown, without front fog lamps similar) | B. | Combination switch (wiper and washer switch) |
| No. | Component | Function |
|---|---|---|
| 1. | BCM (Body Control Module) | Refer to System Description . |
| 2. | Combination switch (lighting and turn signal) | Refer to System Description . |
| 3. | Combination switch (wiper and washer switch) |
