Exploded View

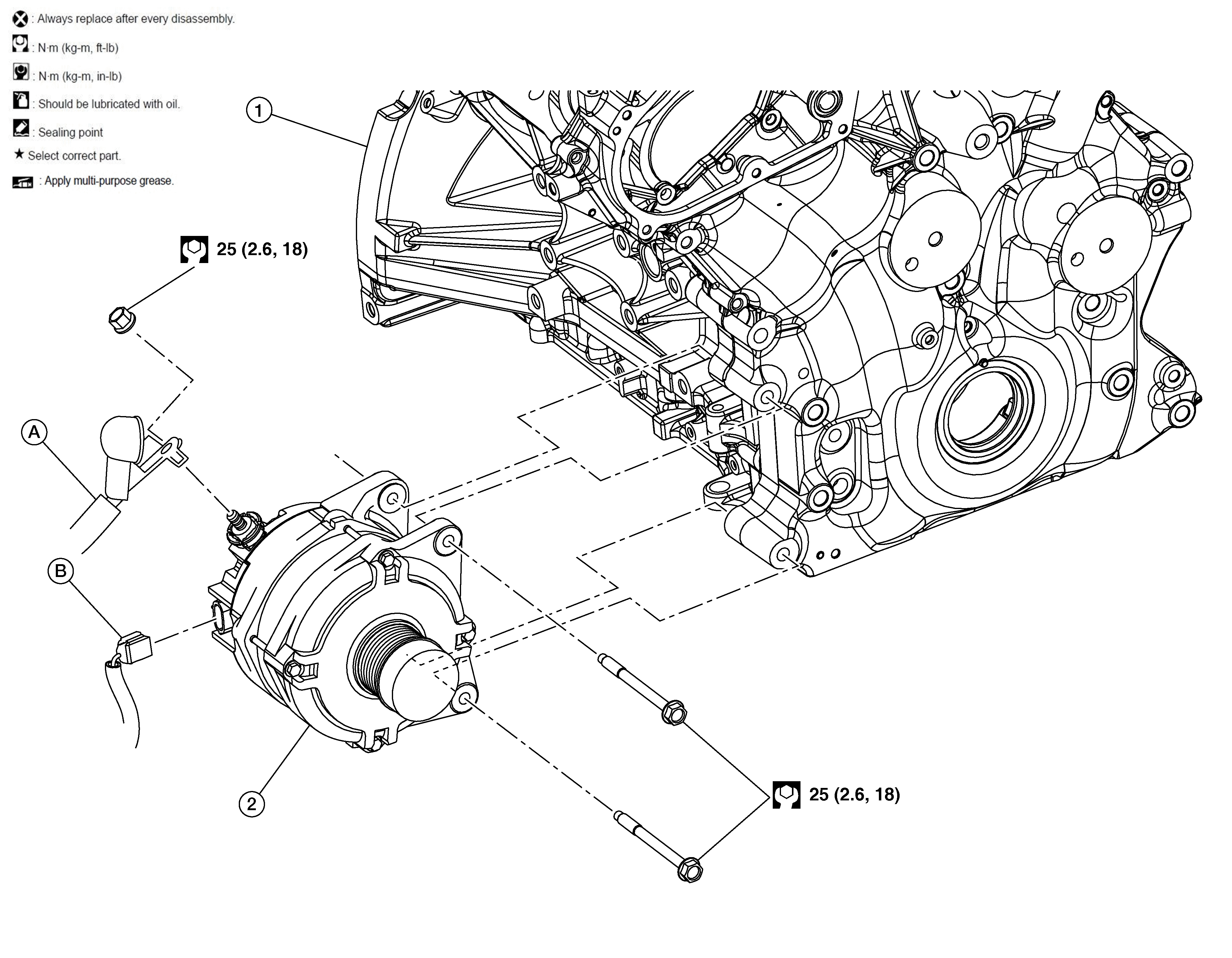

Fig 1: Generator With Torque Specifications
GNSDB43391Courtesy of NISSAN
1. Cylinder block 2. Generator A. "B" terminal harness
B. Harness connector
