Removal and Installation

REMOVAL

  1. Remove the door finisher. Refer to Removal and Installation .

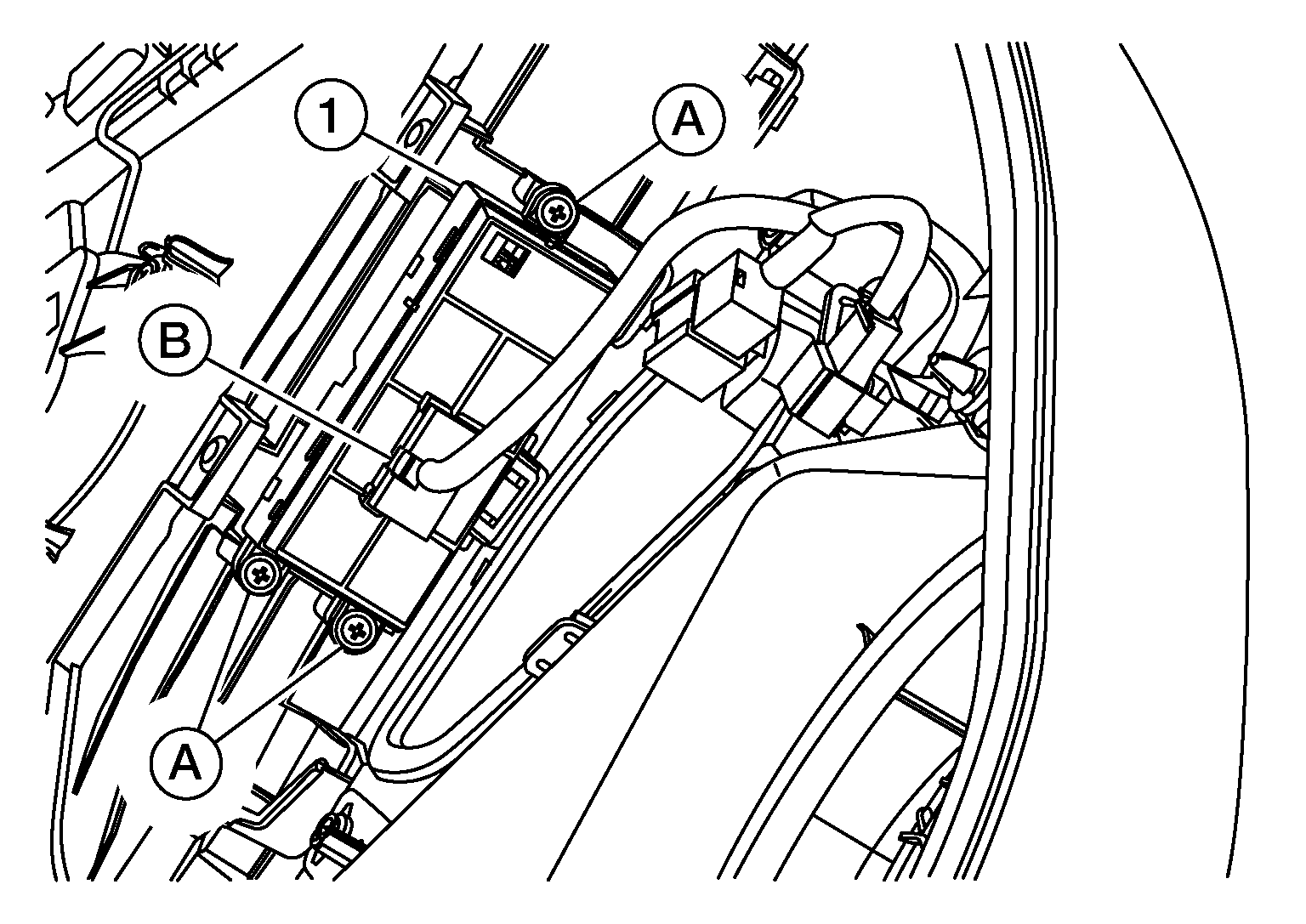

  2. Disconnect the harness connector (B) from the power window and door lock/unlock switch RH (1).
    GNSDB44341Courtesy of NISSAN
  3. Remove the screws (A) and the power window and door lock/unlock switch RH.

INSTALLATION

Installation is in the reverse order of removal.
