Exploded View

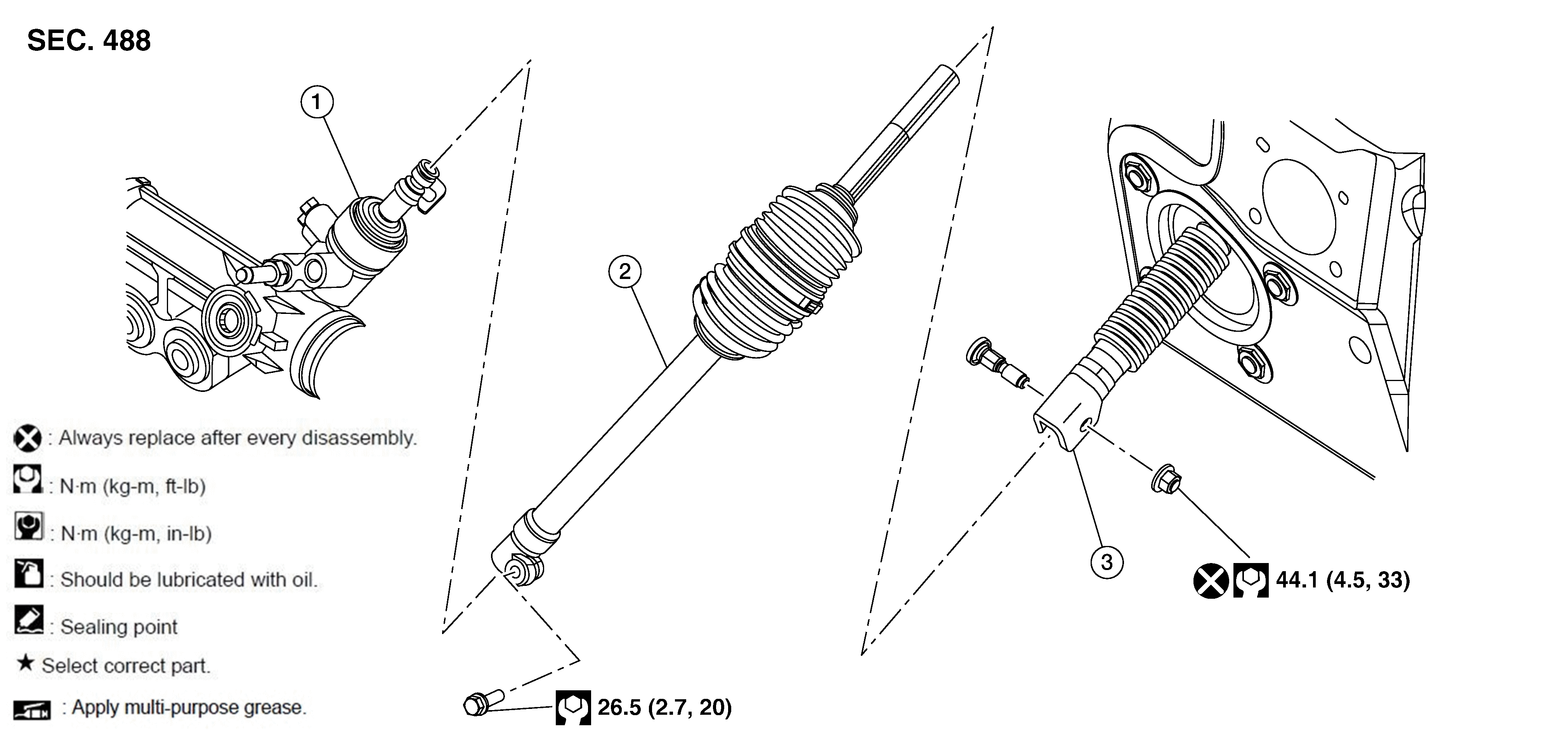

Fig 1: Lower Joint With Torque Specifications
GNSDB42635Courtesy of NISSAN
1. Power steering gear 2. Lower joint 3. Upper shaft
