Exploded View

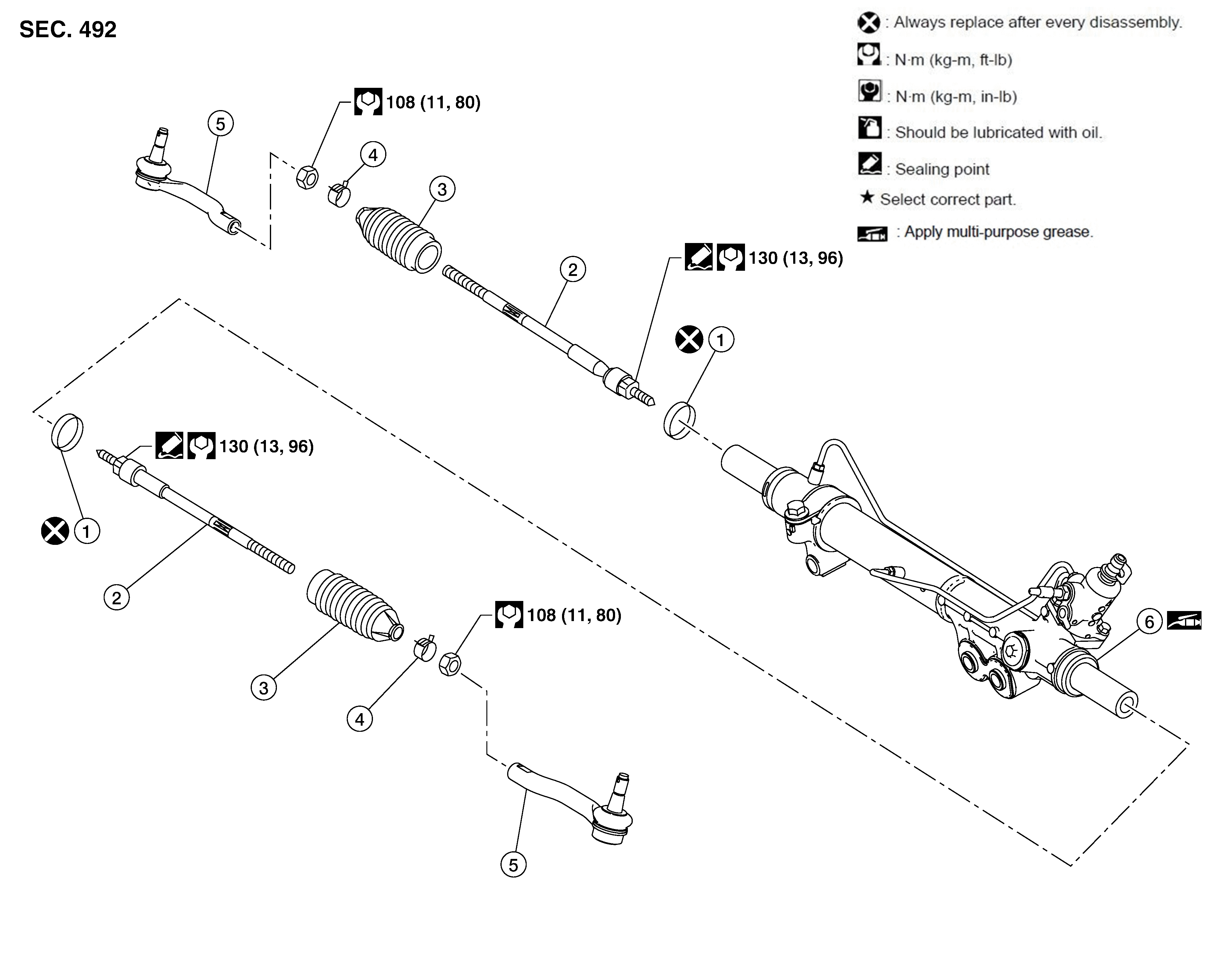

Fig 1: Power Steering Gear And Linkage With Torque Specifications
GNSDB43080Courtesy of NISSAN
1. Boot clamp 2. Inner socket 3. Boot
4. Boot clamp 5. Outer socket 6. Gear housing assembly
