Push-Button Ignition Switch

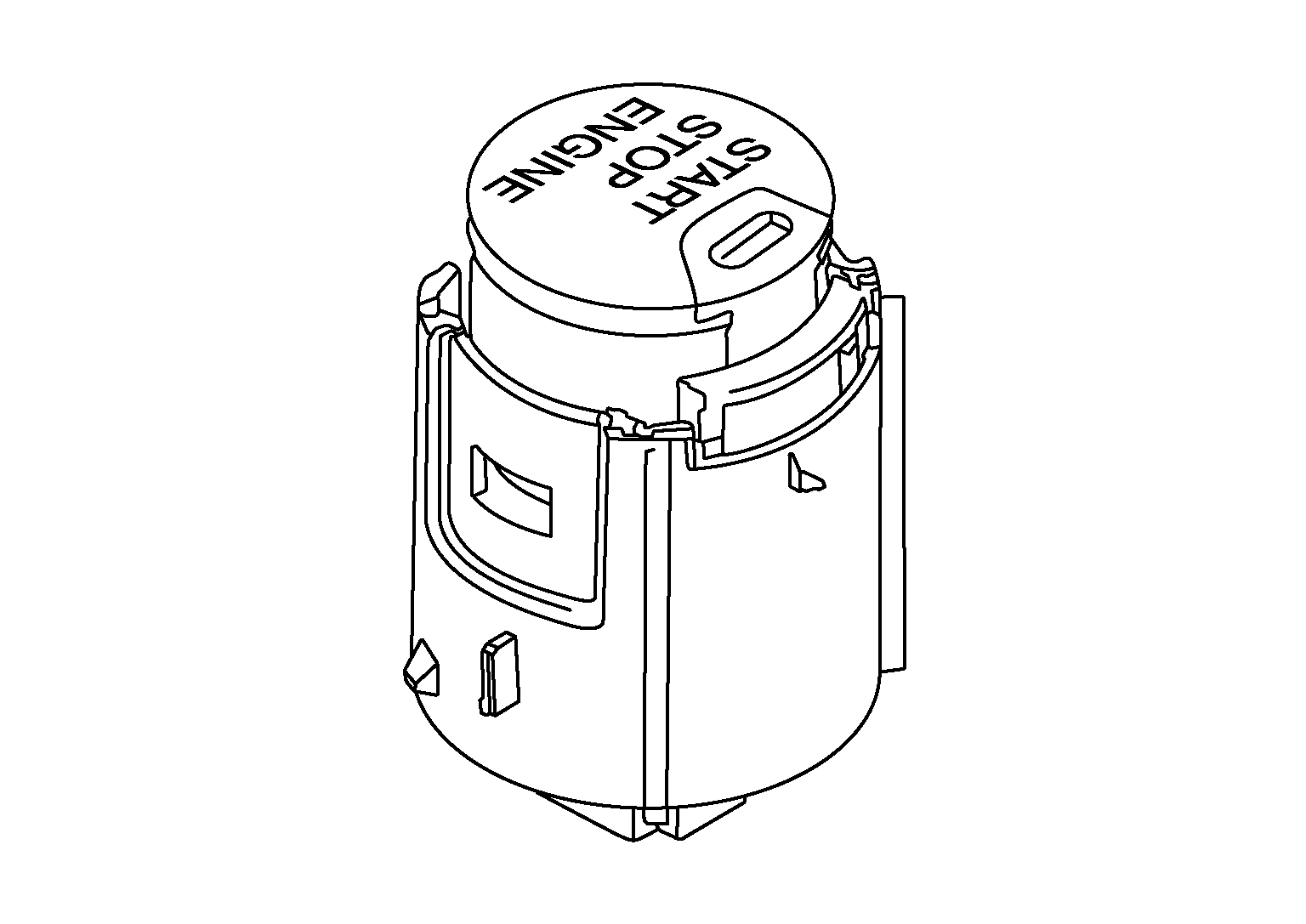

Push-Button Ignition Switch
Push-button ignition switch is installed in the console.
Courtesy of NISSAN
Push-button ignition switch is pressed, and transmits the status signal to Intelligent Key unit and IPDM E/R.
Courtesy of NISSAN
