Exploded View

WITH ELECTRIC PARKING BRAKE

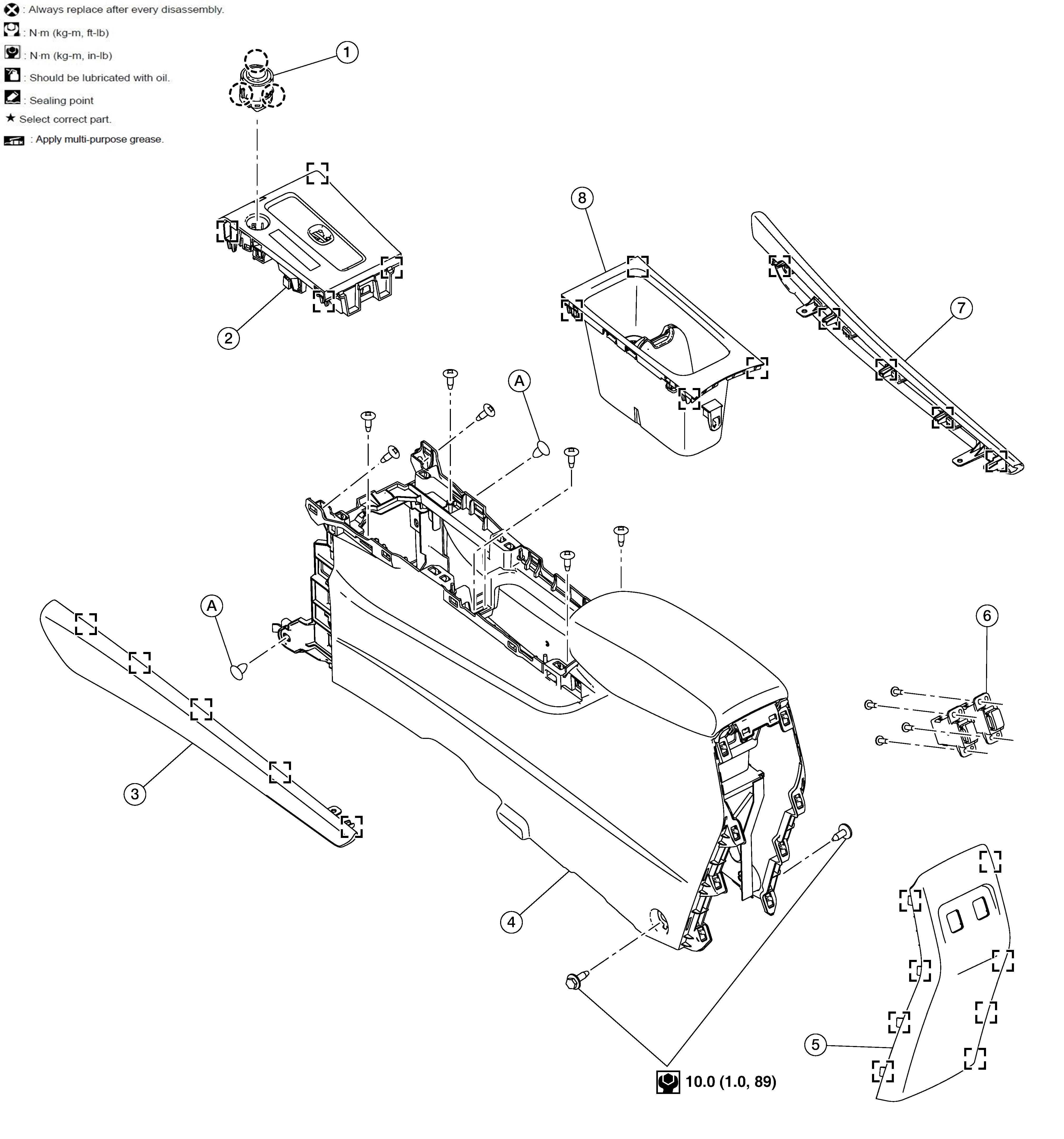

Fig 1: Center Console Assembly With Torque Specifications - With Electric Parking Brake

Courtesy of NISSAN

1.	Push-button ignition switch	2.	Shift selector finisher	3.	Center console finisher (LH)
4.	Center console assembly	5.	Center console rear finisher	6.	Rear USB charge port
7.	Center console finisher (RH)	8.	Cup holder	A.	Clip
	Pawl		Metal clip

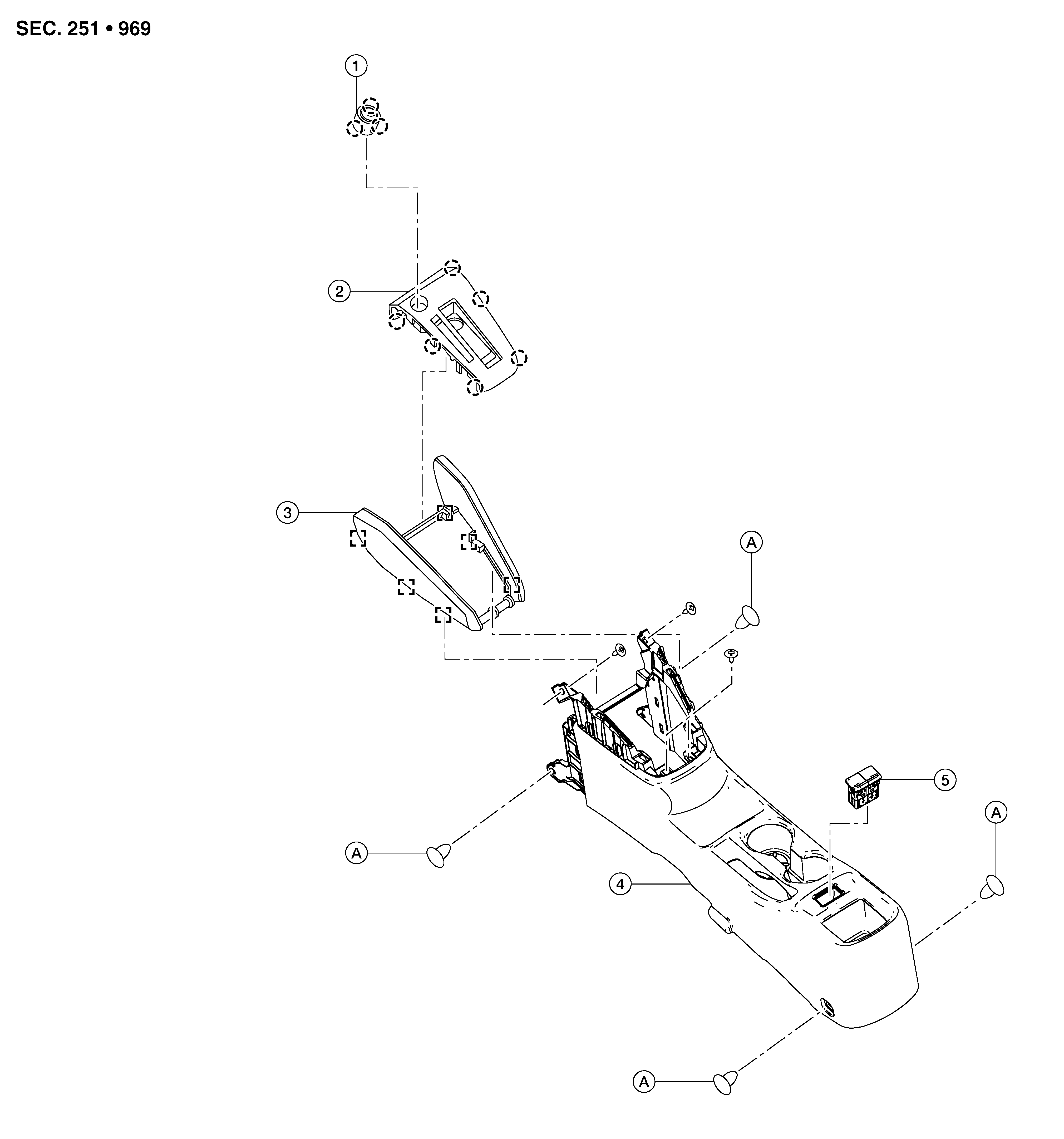

WITHOUT ELECTRIC PARKING BRAKE

Courtesy of NISSAN

1.	Push-button ignition switch	2.	Shift selector finisher	3.	Console upper finisher
4.	Center console	5.	Front USB charge port	A.	Clip
	Pawl		Metal clip
