Exploded View

EXPLODED VIEW

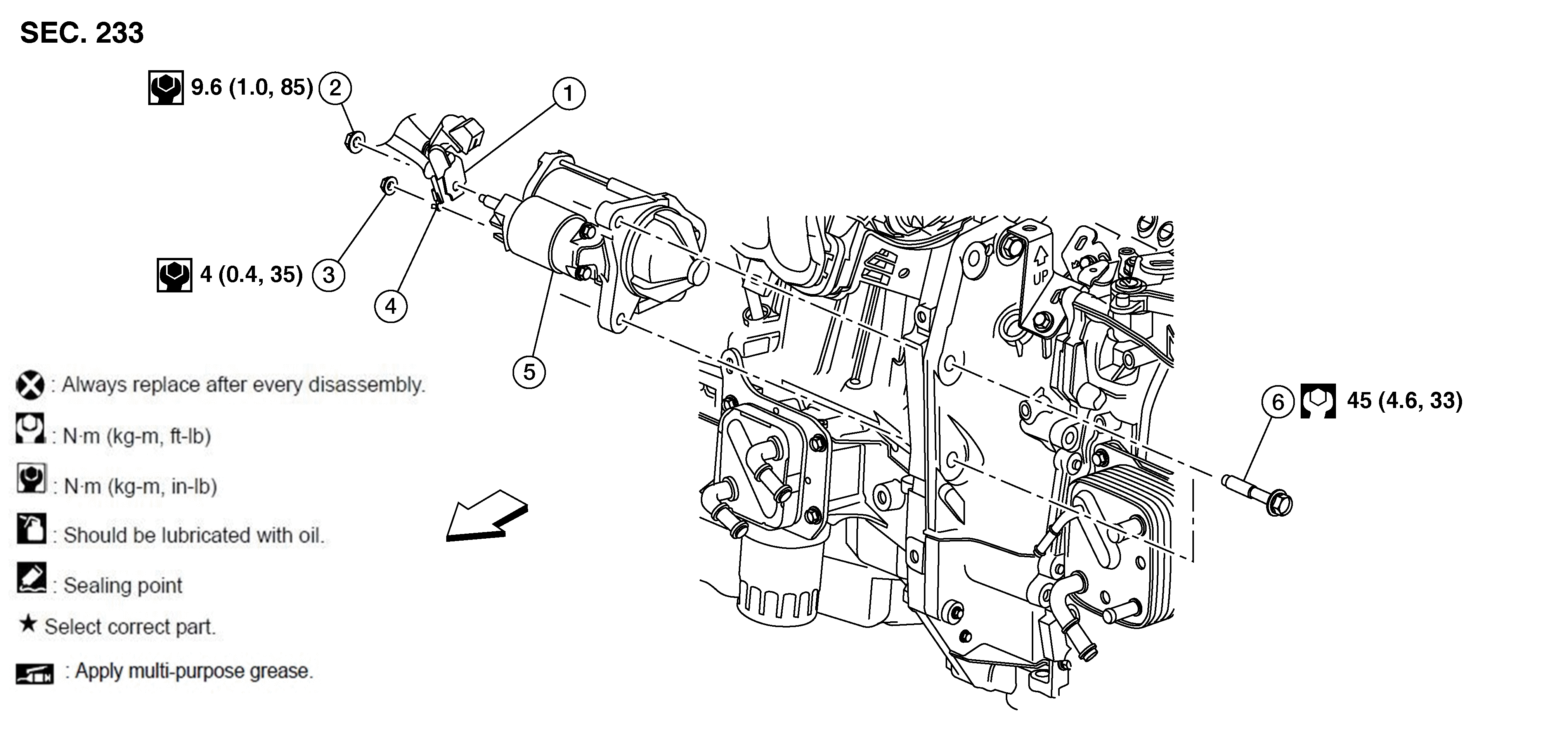

Fig 1: Starter Motor With Torque Specifications
GNSDB52730SYMBOLCourtesy of NISSAN
1. "B" terminal harness 2. "B" terminal nut 3. "S" terminal nut
4. "S" terminal harness 5. Starter motor 6. Bolt
SYMBOL Front
