Exploded View

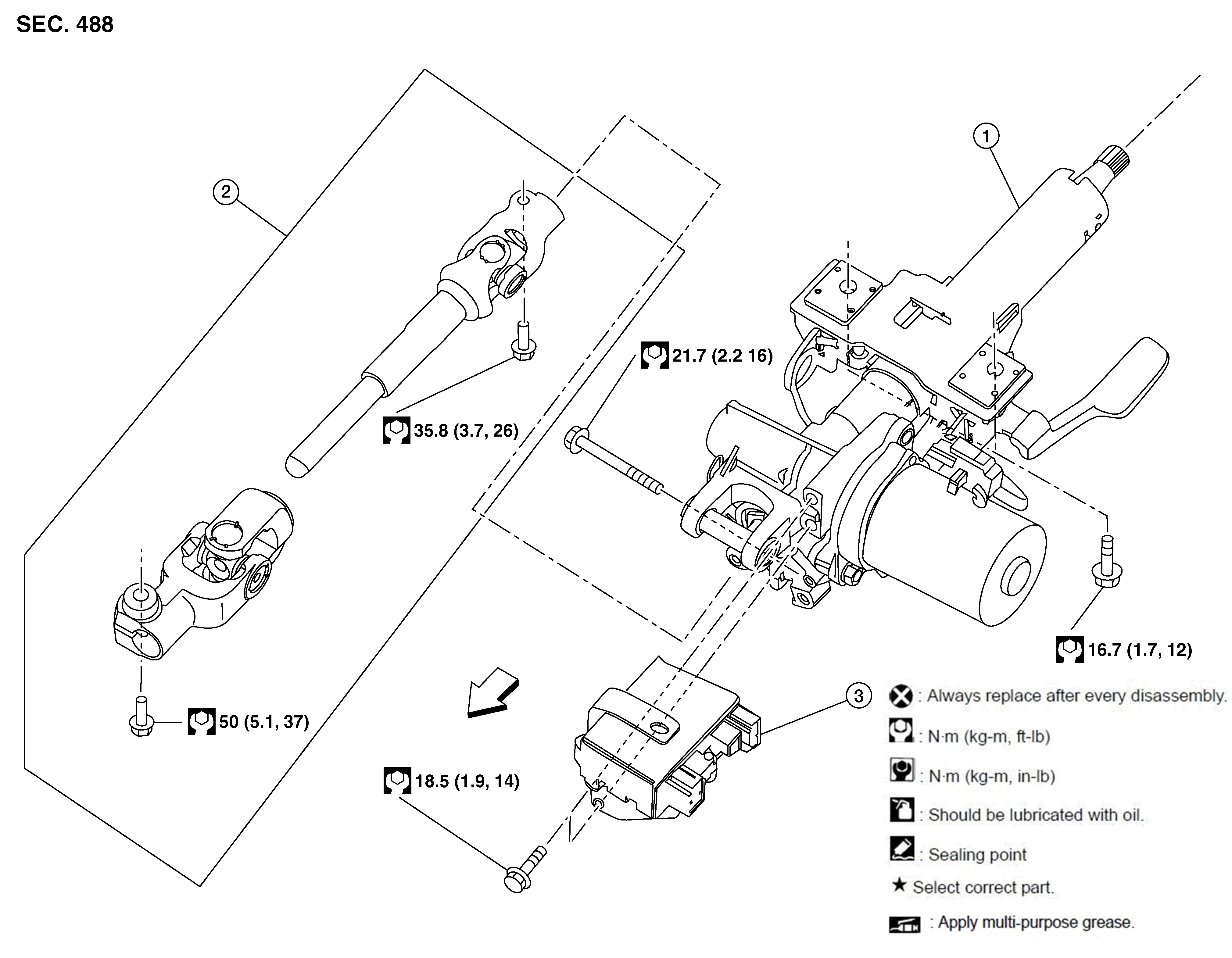

Fig 1: Steering Column With Torque Specifications
GNSDB52286Courtesy of NISSAN
1. Steering column 2. Lower joint 3. EPS control unit
SYMBOL Front
