Exploded View

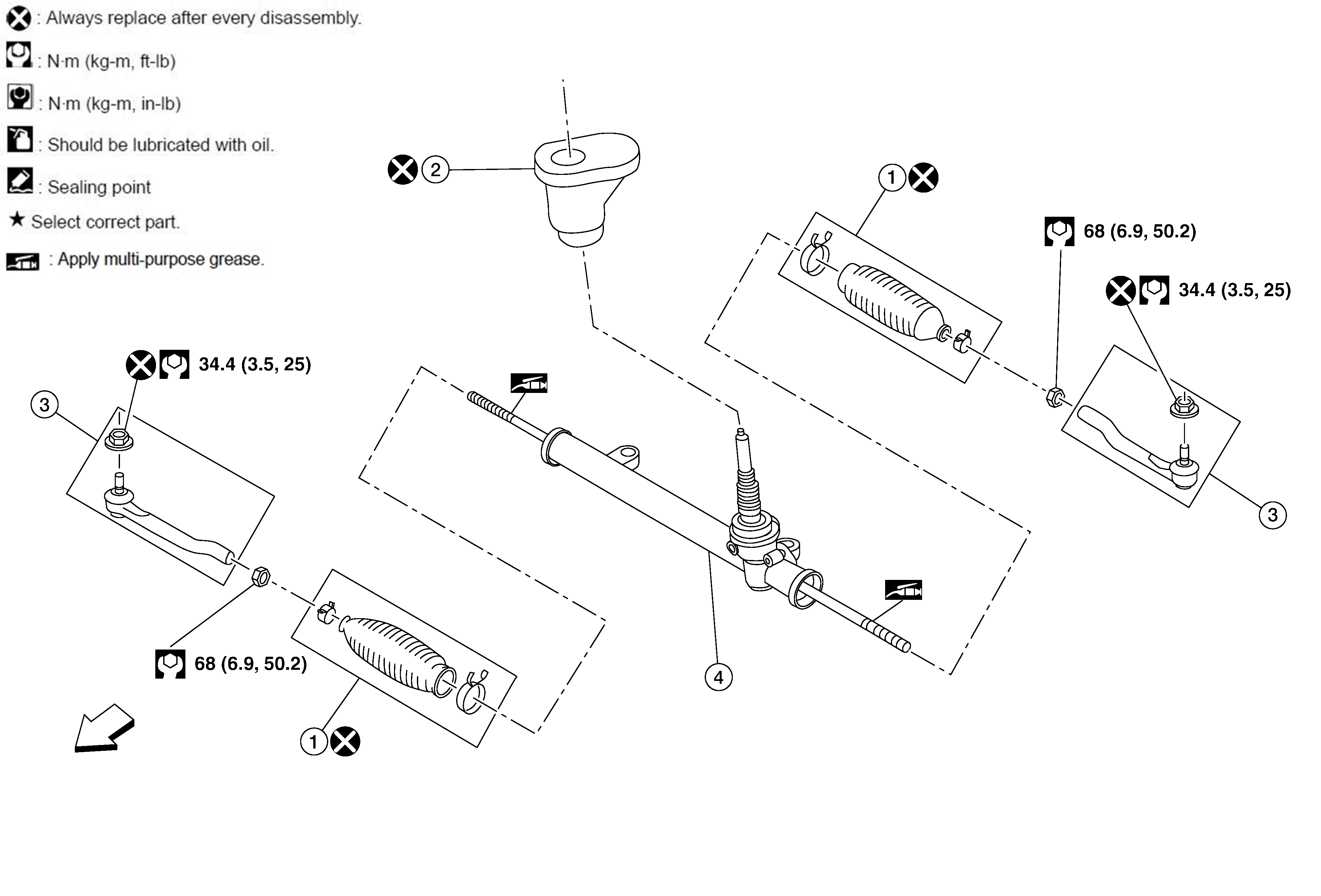

Fig 1: Steering Gear And Linkage With Torque Specifications
GNSDB51761Courtesy of NISSAN
1. Boot assembly 2. Hole cover 3. Outer socket
4. Steering gear SYMBOL Front
