Exploded View

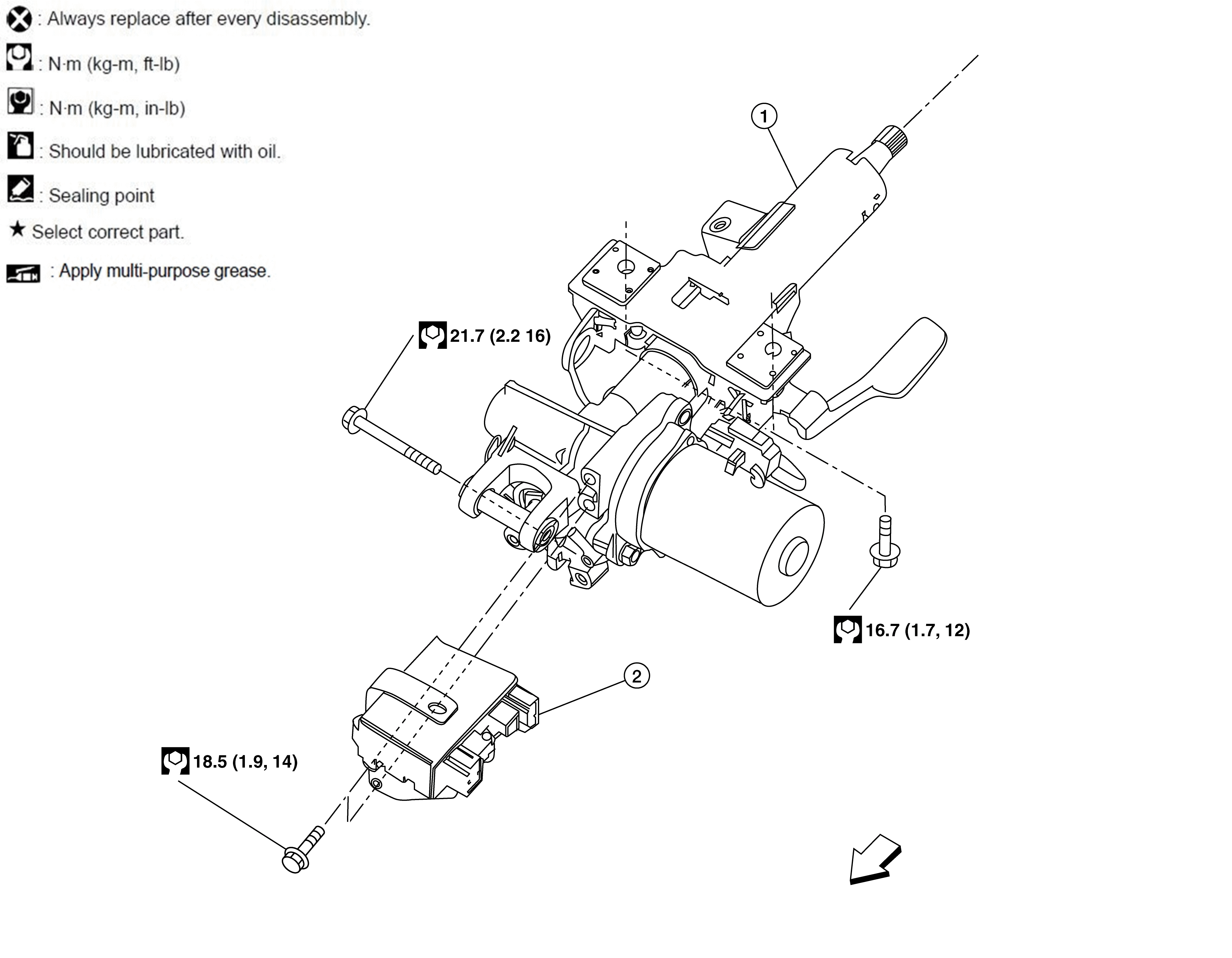

Fig 1: EPS Control Unit With Torque Specifications
GNSDB52271Courtesy of NISSAN
1. Steering column 2. EPS control unit SYMBOL Front
