Component Location

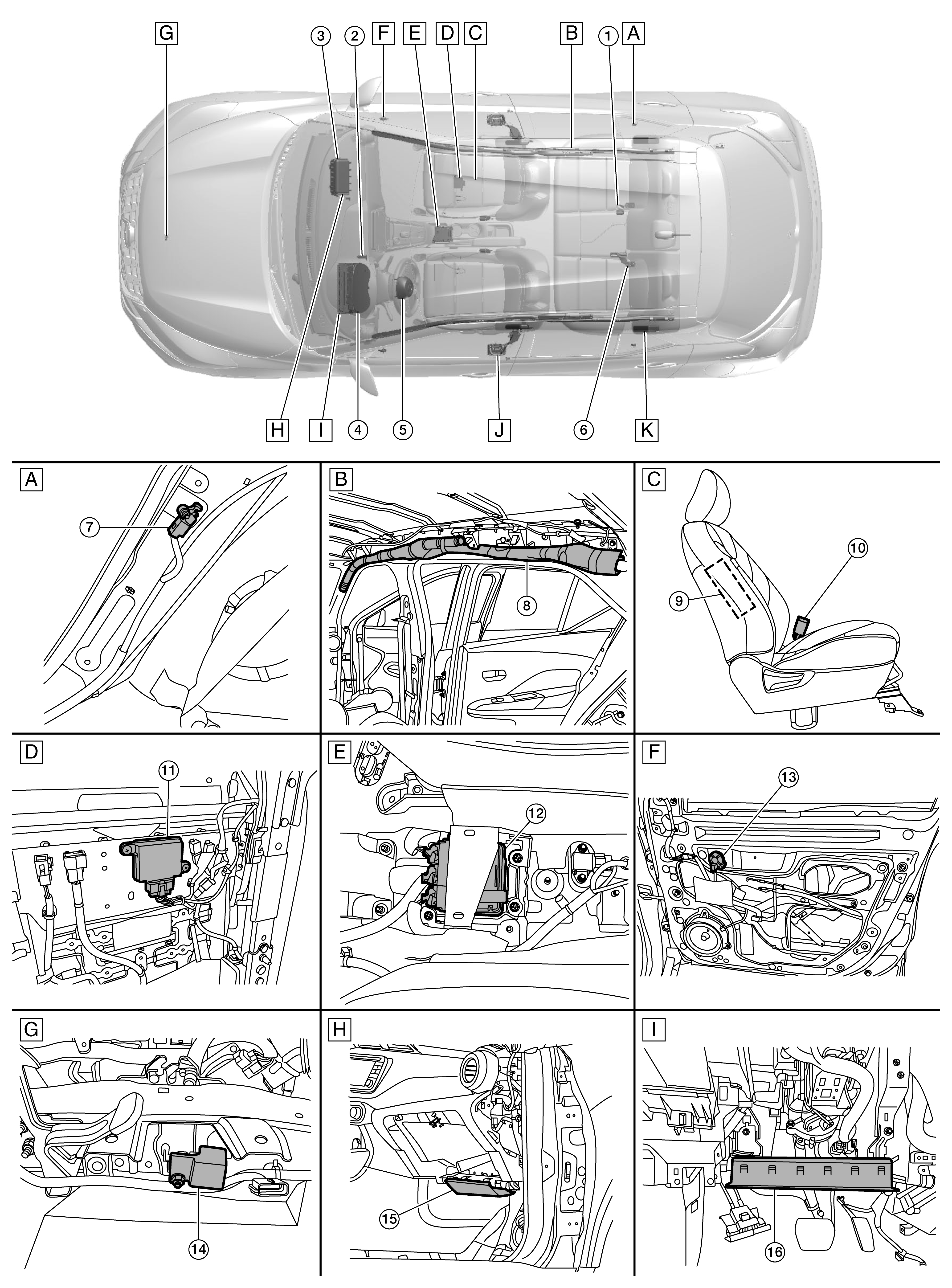

GNSDB52044Courtesy of NISSAN

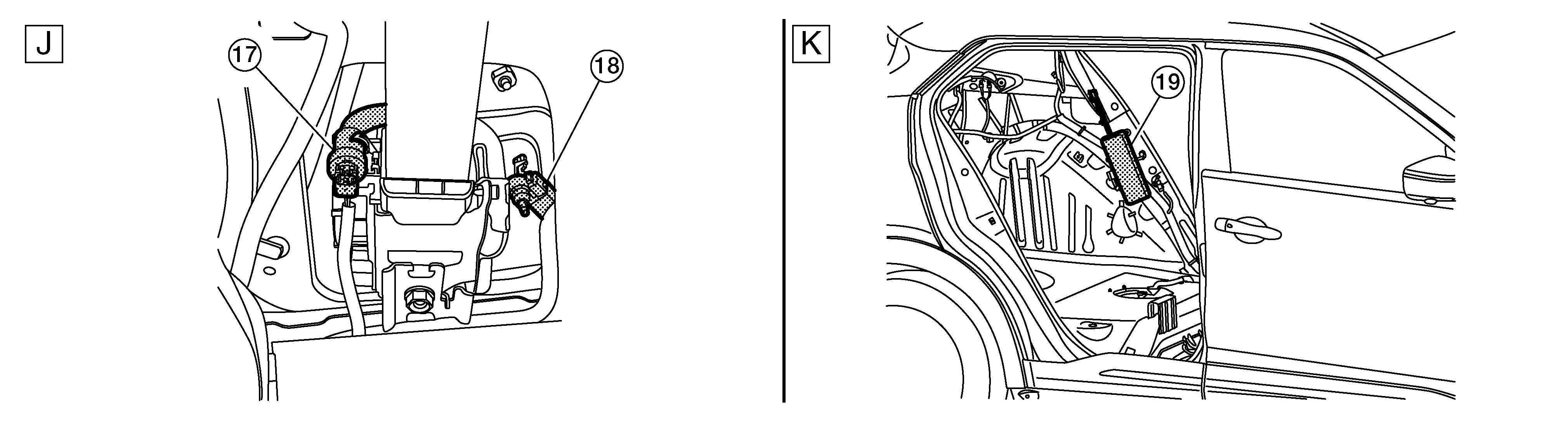

GNSDB51940Courtesy of NISSAN
A. Right of rear passenger seat (view with RH rear lower finisher removed) B. Right side of roof line (view with headliner removed) C. Passenger seat
D. Bottom of passenger seat (view with passenger seat removed) E. Between driver and passenger seat (view with center console removed) F. Passenger door area (view with passenger door finisher removed)
G. Radiator core support assembly H. Right side of instrument panel I. Left side of instrument panel
J. Left of driver seat (view with the lower B-pillar trim removed) K. Left of rear passenger seat (view with rear seat removed)
No. Component Function
1. Rear seat belt buckle switch RH Transmits the rear seat belt buckle switch RH signal to the air bag diagnosis sensor unit.
2. Front passenger air bag off indicator Refer to Front Passenger Air Bag Off Indicator .
3. Front passenger air bag module Refer to Front Passenger Air Bag Module .
4. Combination meter Indicates air bag malfunction and deployment by blinking and illuminating air bag warning lamp. Refer to Component Location (Type A) or Component Location (Type B) for detailed component location.
5. Driver air bag module Refer to Driver Air Bag Module .
6. Rear seat belt buckle switch LH and CTR Transmits the rear seat belt buckle switch LH and CTR signal to the air bag diagnosis sensor unit.
7. Rear side air bag satellite sensor RH (LH similar) Refer to Rear Side Air Bag Satellite Sensor .
8. Side curtain air bag module RH (LH similar) Refer to Side Curtain Air Bag Module .
9. Front side air bag module RH (LH similar) Refer to Front Side Air Bag Module .
10. Front seat belt buckle switch RH (LH similar) The front seat belt buckle switches (LH/RH) provide the front seat belt buckle switch signals to the air bag diagnosis sensor unit and the combination meter.
11. Occupant classification system control unit Refer to System Description .
12. Air bag diagnosis sensor unit Refer to Air Bag Diagnosis Sensor Unit .
13. Front door satellite sensor RH (LH similar) Refer to Front Door Satellite Sensor .
14. Crash zone sensor Refer to Crash Zone Sensor .
15. Right knee air bag module Refer to Right Knee Air Bag Module .
16. Left knee air bag module Refer to Left Knee Air Bag Module .
17. Front LH seat belt pre-tensioner (RH similar) Refer to Front Seat Belt Pre-tensioner .
18. Side air bag satellite sensor LH (RH similar) Refer to Side Air Bag Satellite Sensor .
19. Rear side air bag module LH (RH similar) Refer to Rear Side Air Bag Module .
