Exploded View

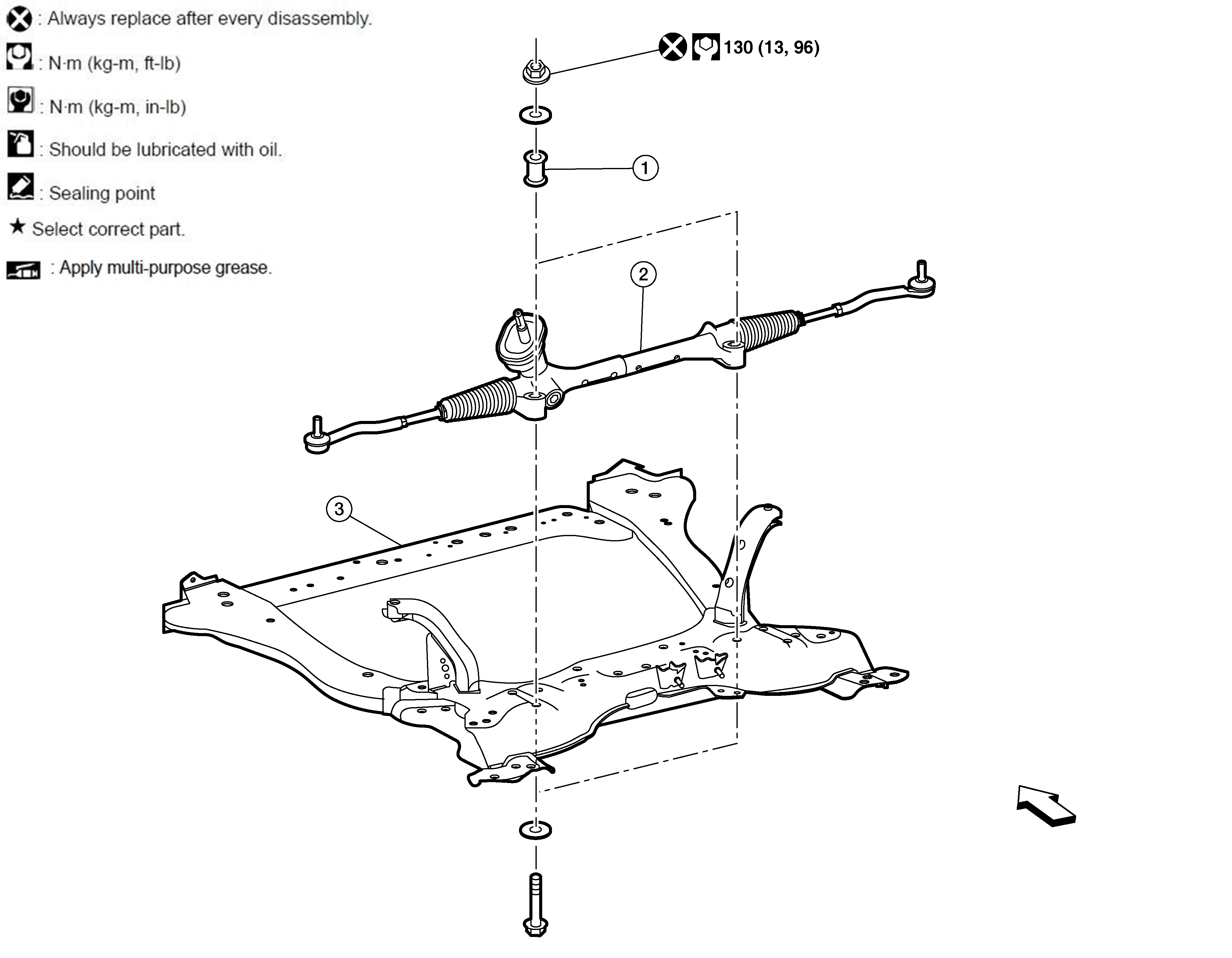

Fig 1: Steering Gear And Linkage With Torque Specifications
GNSDB51623Courtesy of NISSAN
1. Insulator 2. Steering gear assembly 3. Front suspension member
SYMBOL Front
