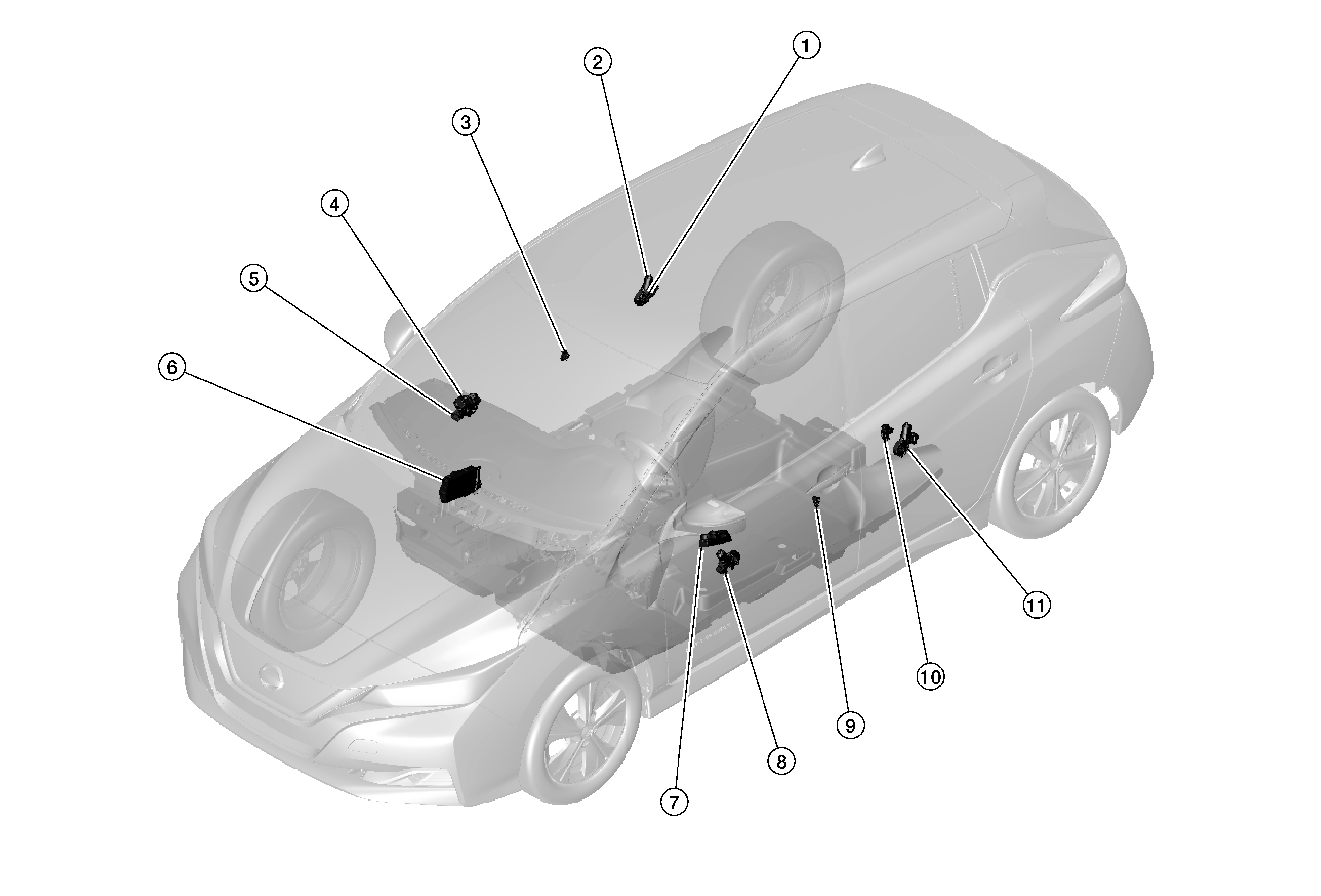

| 1. |
Rear power window switch RH |
Refer to Component Description . |
| 2. |
Rear power window motor RH |
Refer to Component Description . |
| 3. |
Front door switch RH |
Inputs door open/close condition to BCM. Refer to Component Location
for detailed component location. |
| 4. |
Power window and door lock/unlock switch RH |
Refer to Component Description . |
| 5. |
Front power window motor RH |
Refer to Component Description . |
| 6. |
BCM (Body Control Module) |
- Supplies power supply to power window switches.
- Controls retained power.
Refer to Component Location
for detailed component location. |
| 7. |
Main power window and door lock/unlock switch |
Refer to Component Description . |
| 8. |
Front power window motor LH |
Refer to Component Description . |
| 9. |
Front door switch LH |
Inputs door open/close condition to BCM. Refer to Component Location
for detailed component location. |
| 10. |
Rear power window switch LH |
Refer to Component Description . |
| 11. |
Rear power window motor LH |
Refer to Component Description . |
