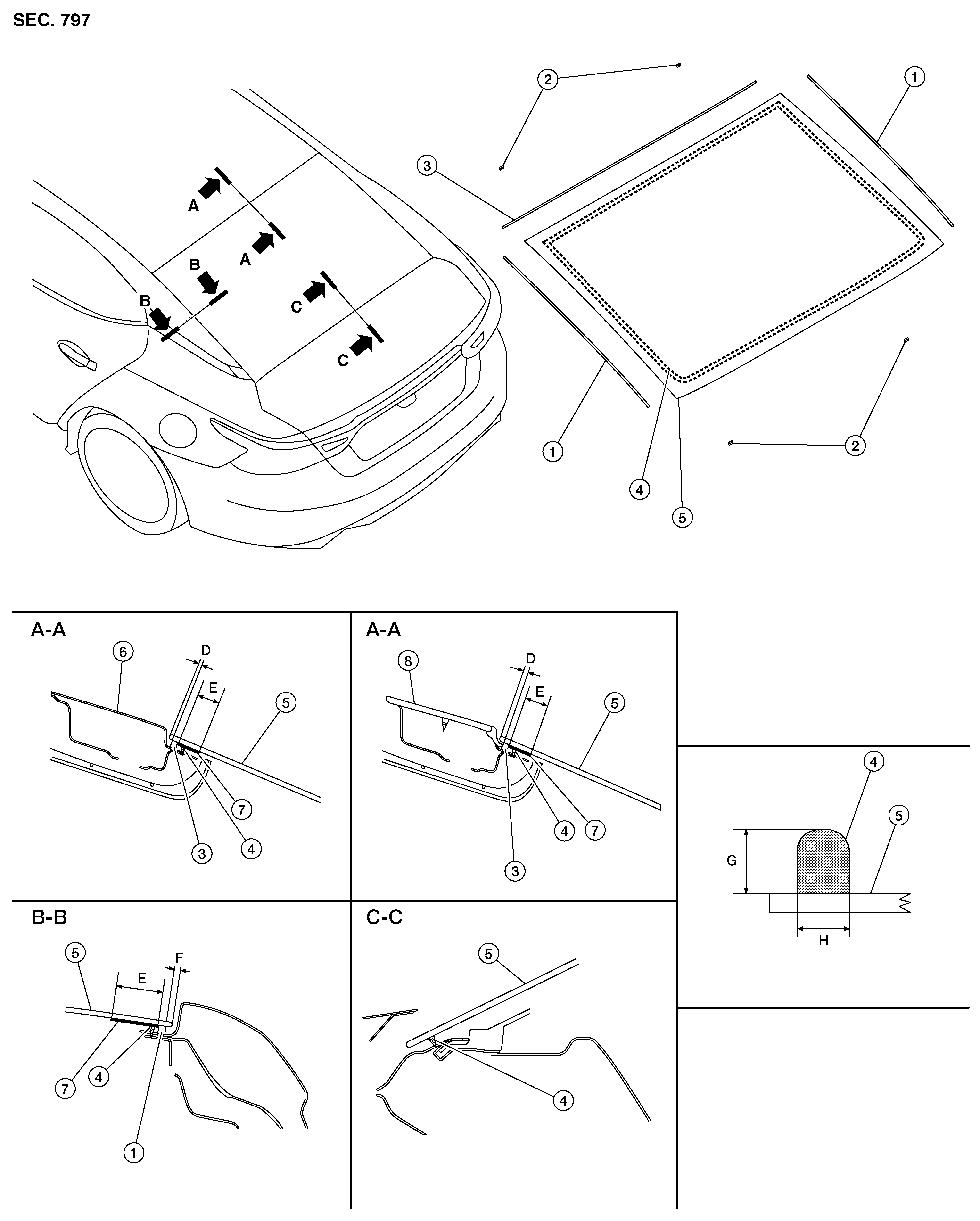

Exploded View
| 1. | Dam sealant rubber (side) | 2. | Spacer | 3. | Dam sealant rubber (upper) |
| 4. | Adhesive | 5. | Rear window glass | 6. | Metal roof |
| 7. | Glass primer | 8. | Double panel moonroof | D. | 2.7 mm (0.11 in) |
| E. | 16 +2, -0 mm (0.63 +0.08, -0 in) | F. | 4 mm (0.16 in) | G. | 12 +2, -0 mm (0.47 +0.08, -0 in) |
| H. | 7 +2, -0 mm (0.28 +0.08, -0 in) |
