Exploded View

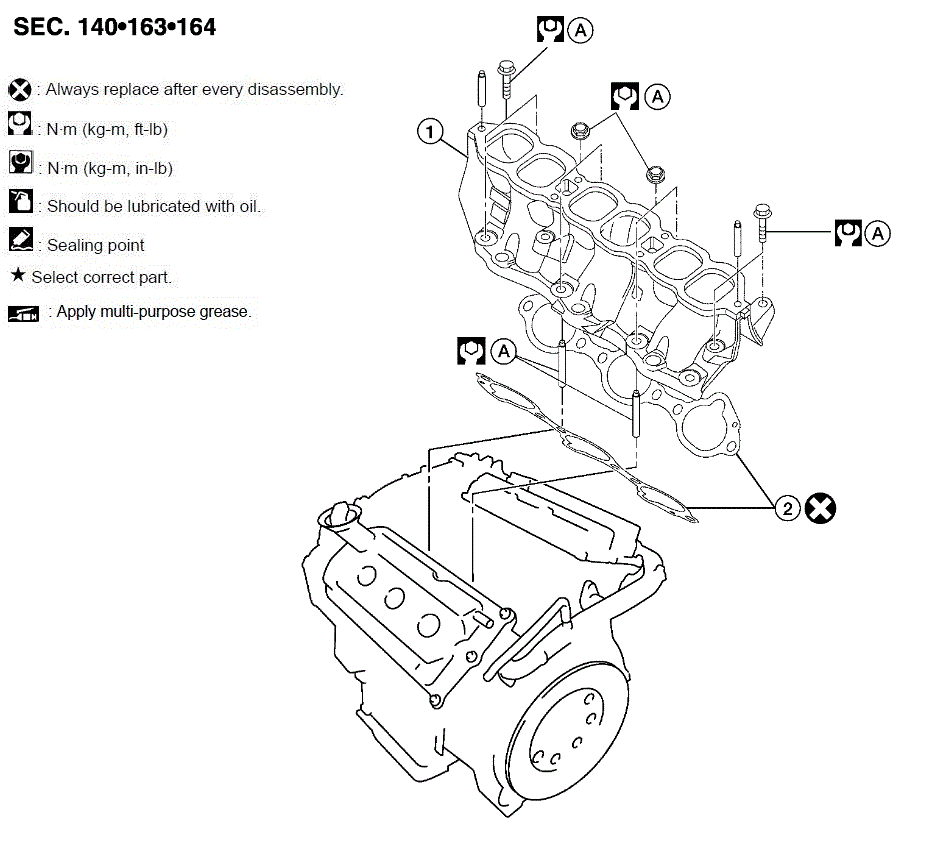

G00613779Courtesy of NISSAN
1. Intake manifold 2. Intake manifold gasket A. Refer to Removal and Installation
