Exploded View

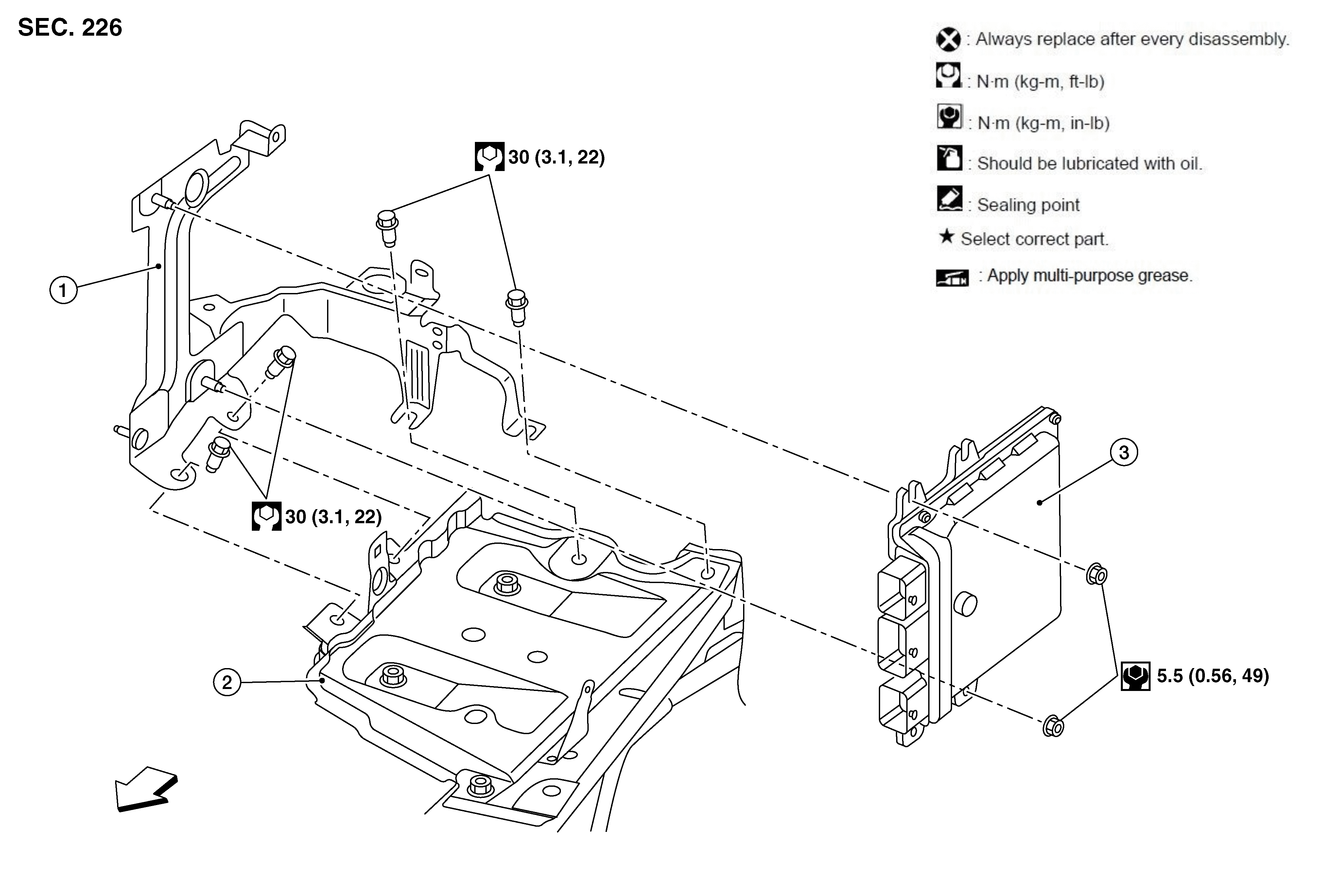

Fig 1: Engine Control Module Components with Torque Specifications
GNSDB55739Courtesy of NISSAN
1. ECM bracket 2. Battery tray 3. ECM
SYMBOL Front
