Exploded View

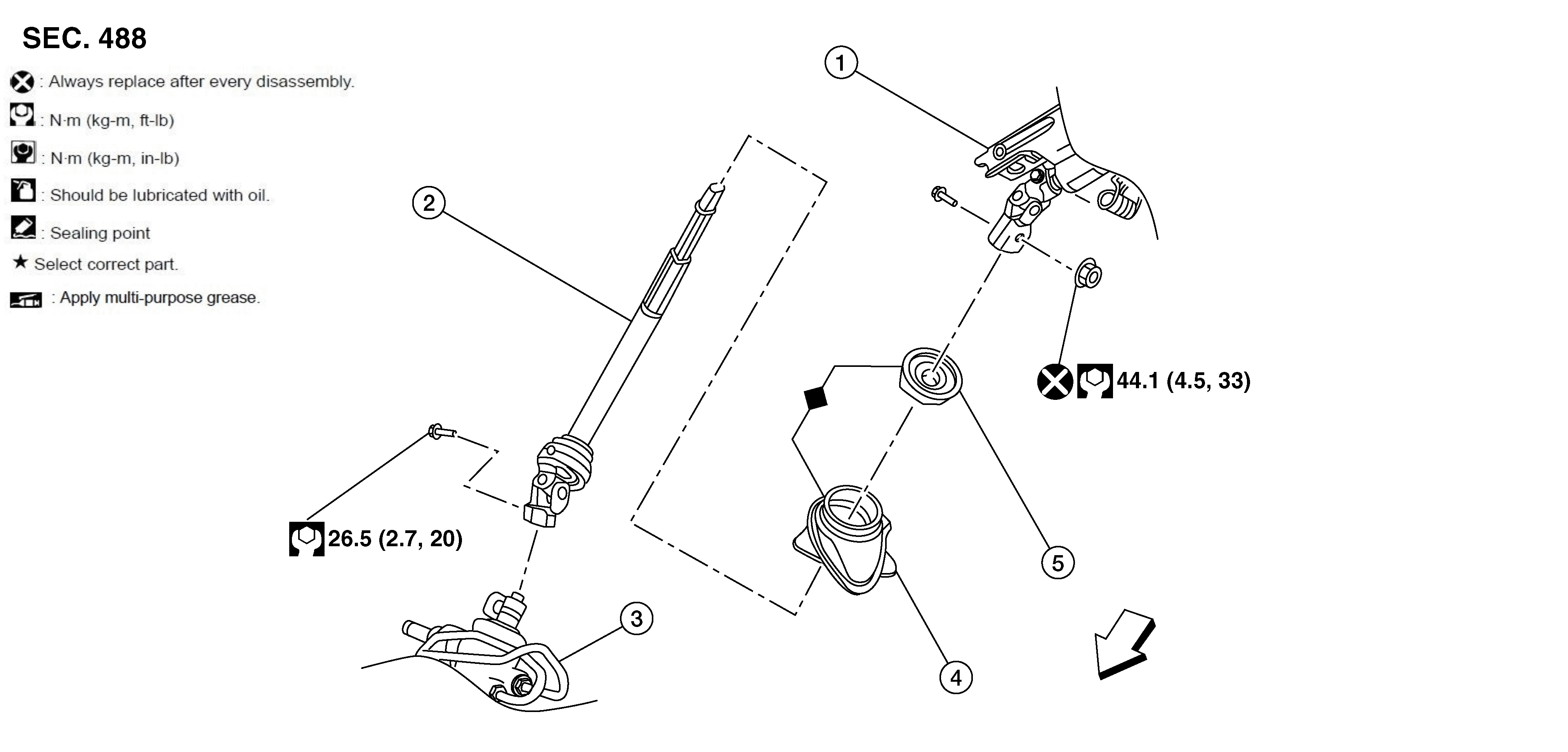

Fig 1: Lower Joint Components with Torque Specifications
GNSDB55435Courtesy of NISSAN
1. Steering column 2. Lower joint 3. Steering gear
4. Hole cover 5. Hole cover seal SYMBOL Replace as a set.
SYMBOL Front
