Exploded View

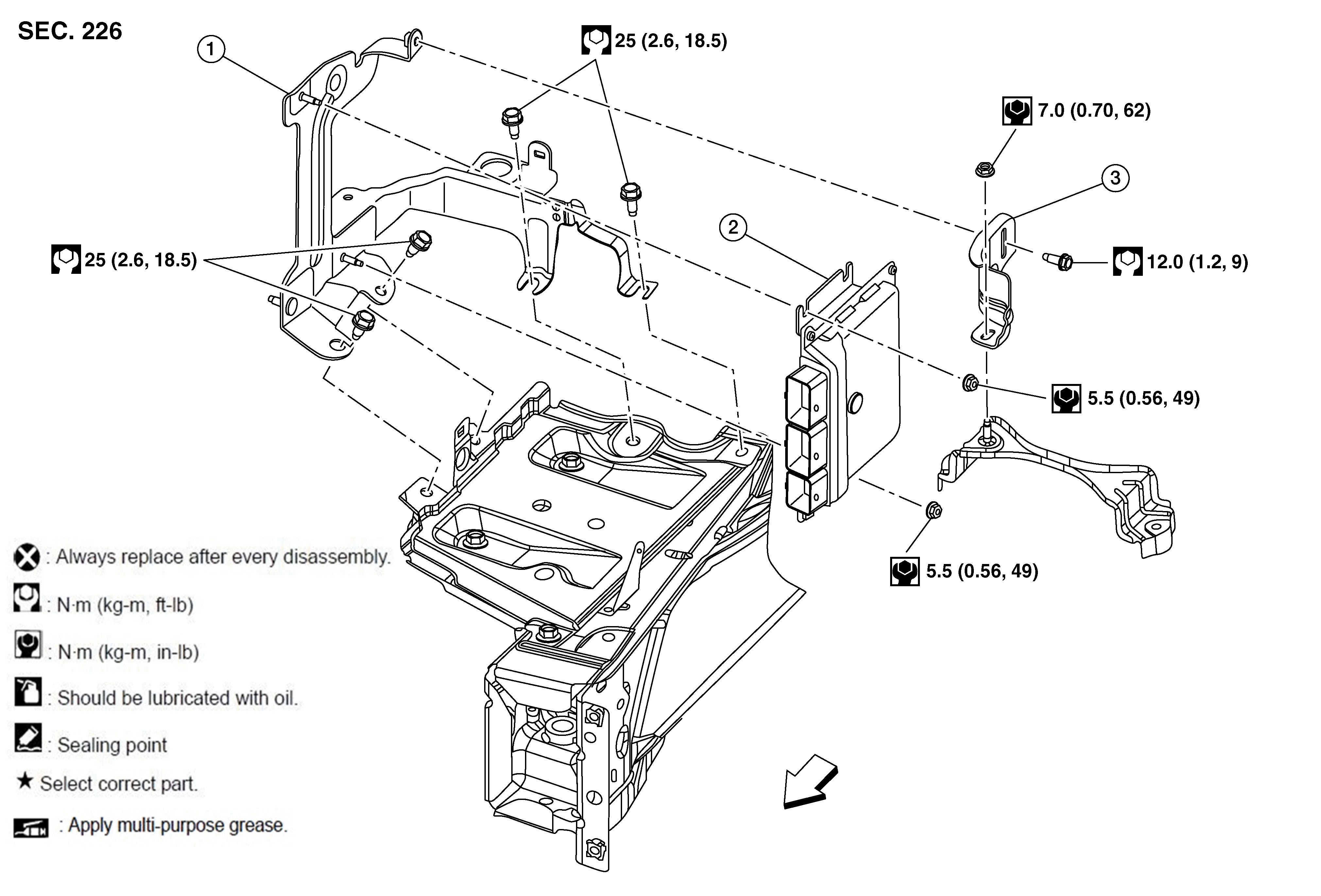

Fig 1: ECM With Torque Specifications
GNSDB53590Courtesy of NISSAN
1. ECM bracket 2. ECM 3. ECM cover
SYMBOL Front     - -
