Disassembly and Assembly

Disassembly

NOTE: Before disassembly, note the proper placement of the wires to the correct terminals and correct wire routing to the terminals.

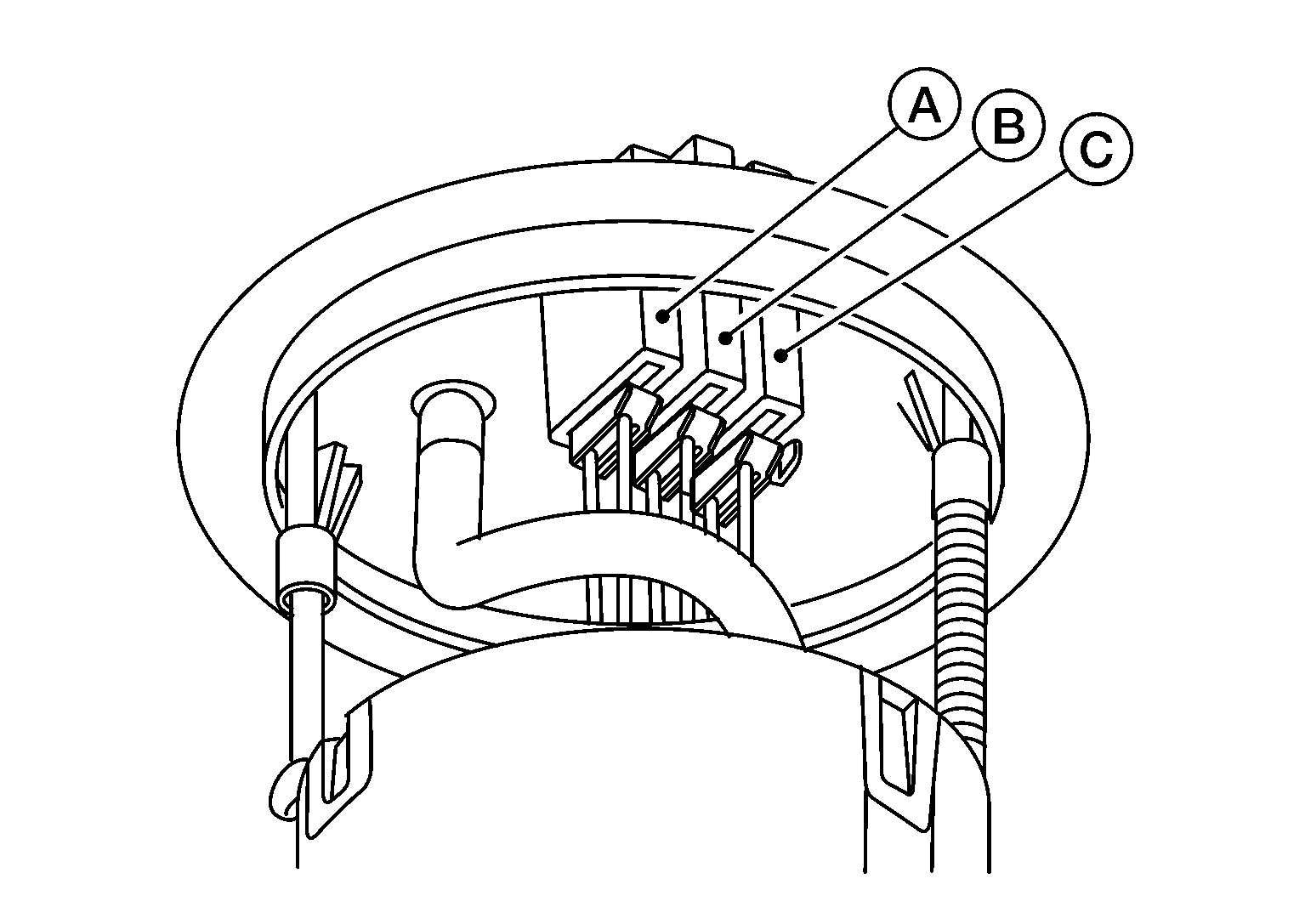

1. Disconnect fuel level sensor unit (A) and fuel tank temperature sensor (C) harness connectors. Press the tabs on the terminals to release the locking tabs.

   Courtesy of NISSAN

   (B)	: Fuel pump harness connector

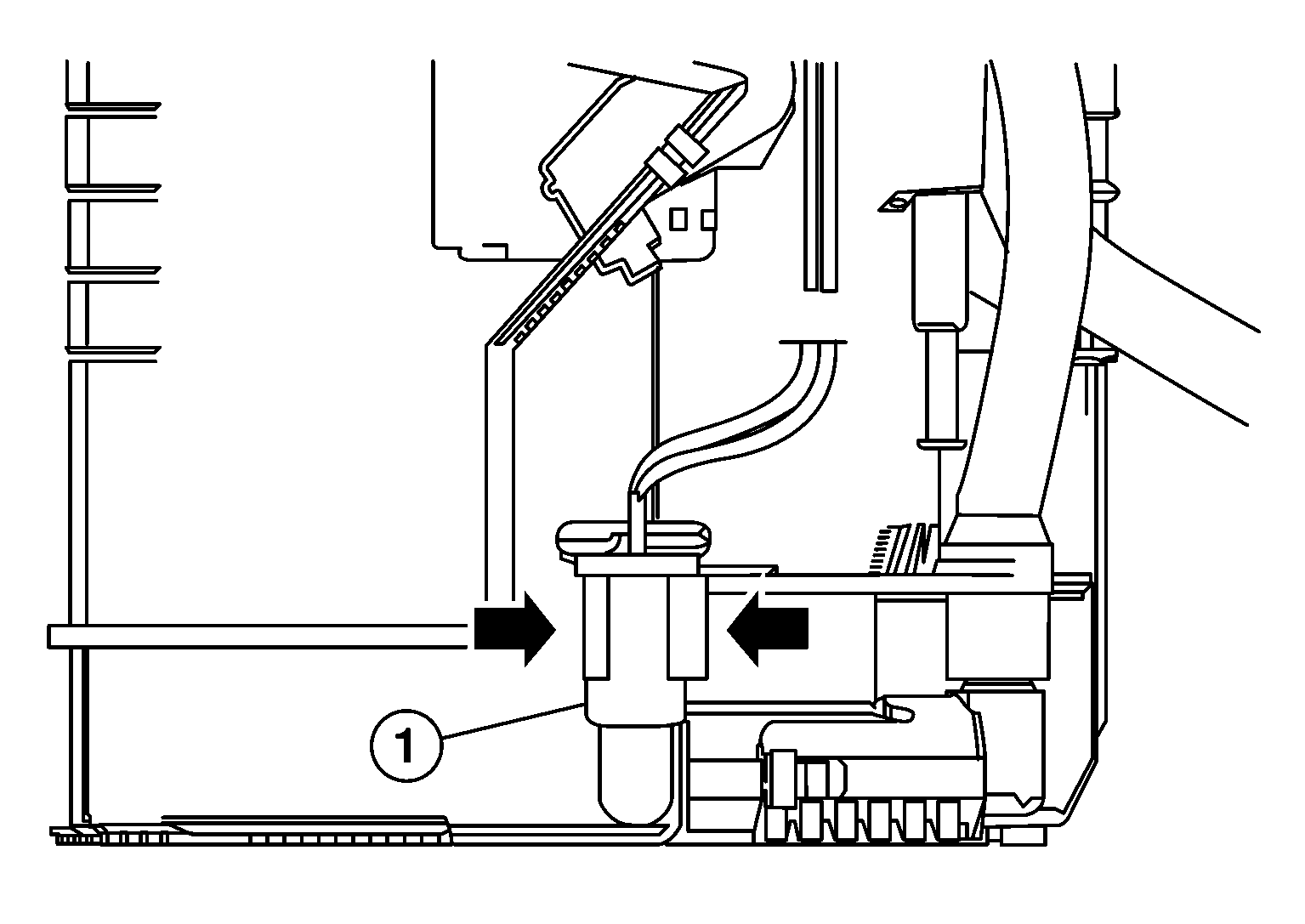

2. Release two clips and remove fuel tank temperature sensor (1) from pump assembly.

   Courtesy of NISSAN

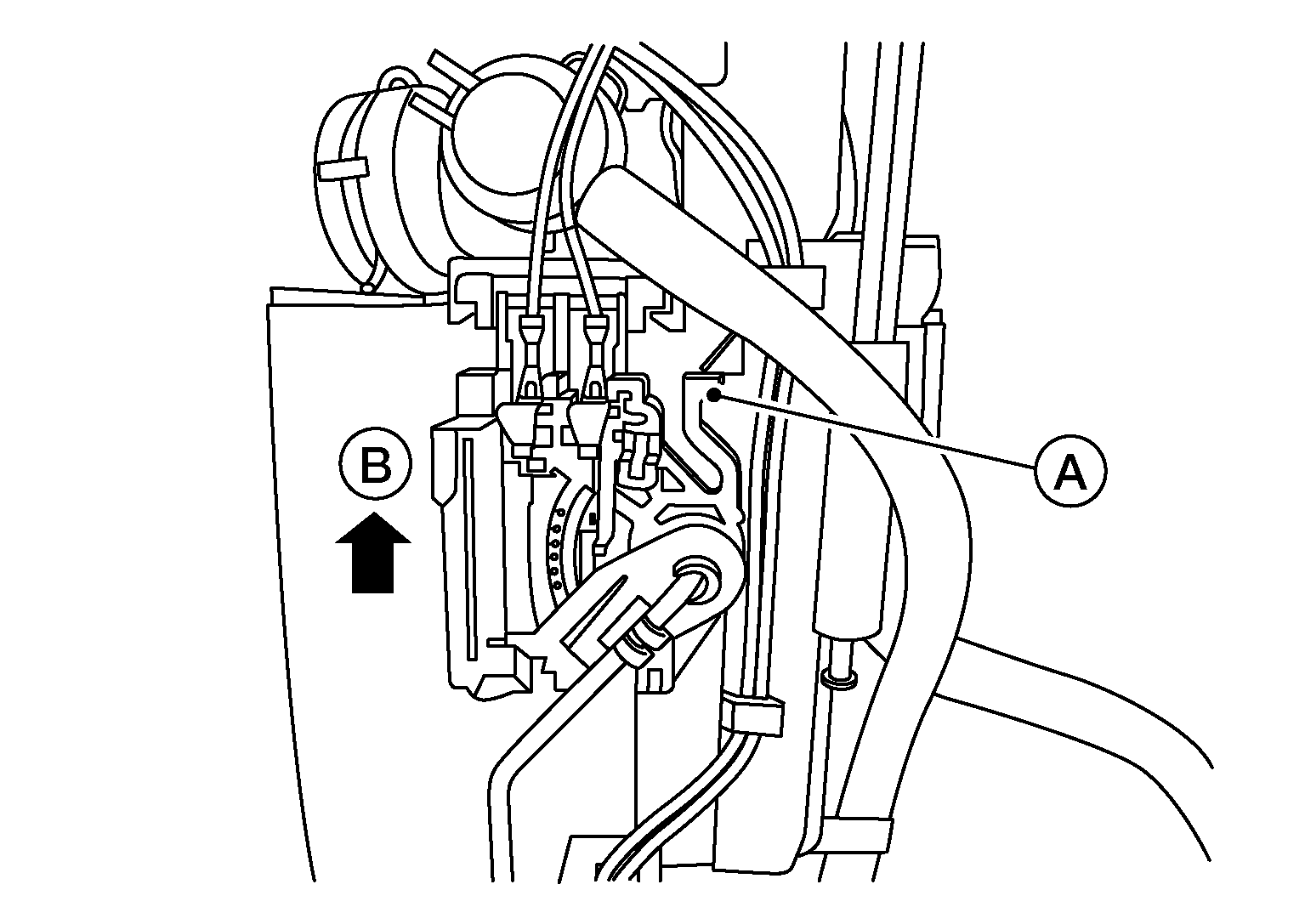

3. Release tab (A) and slide fuel level sensor unit and float arm assembly up (B) to remove.

   Courtesy of NISSAN

Assembly

Assembly is in the reverse order of disassembly.

NOTE:

• Ensure proper placement of the wires to the correct terminals and correct wire routing to the terminals.
• After connecting terminals, ensure they are securely locked and cannot be pulled out.
• When installing the fuel level sensor unit, push down until the tab is locked into place.
