Disassembly And Assembly
›
Fuel Level Sensor Unit
›

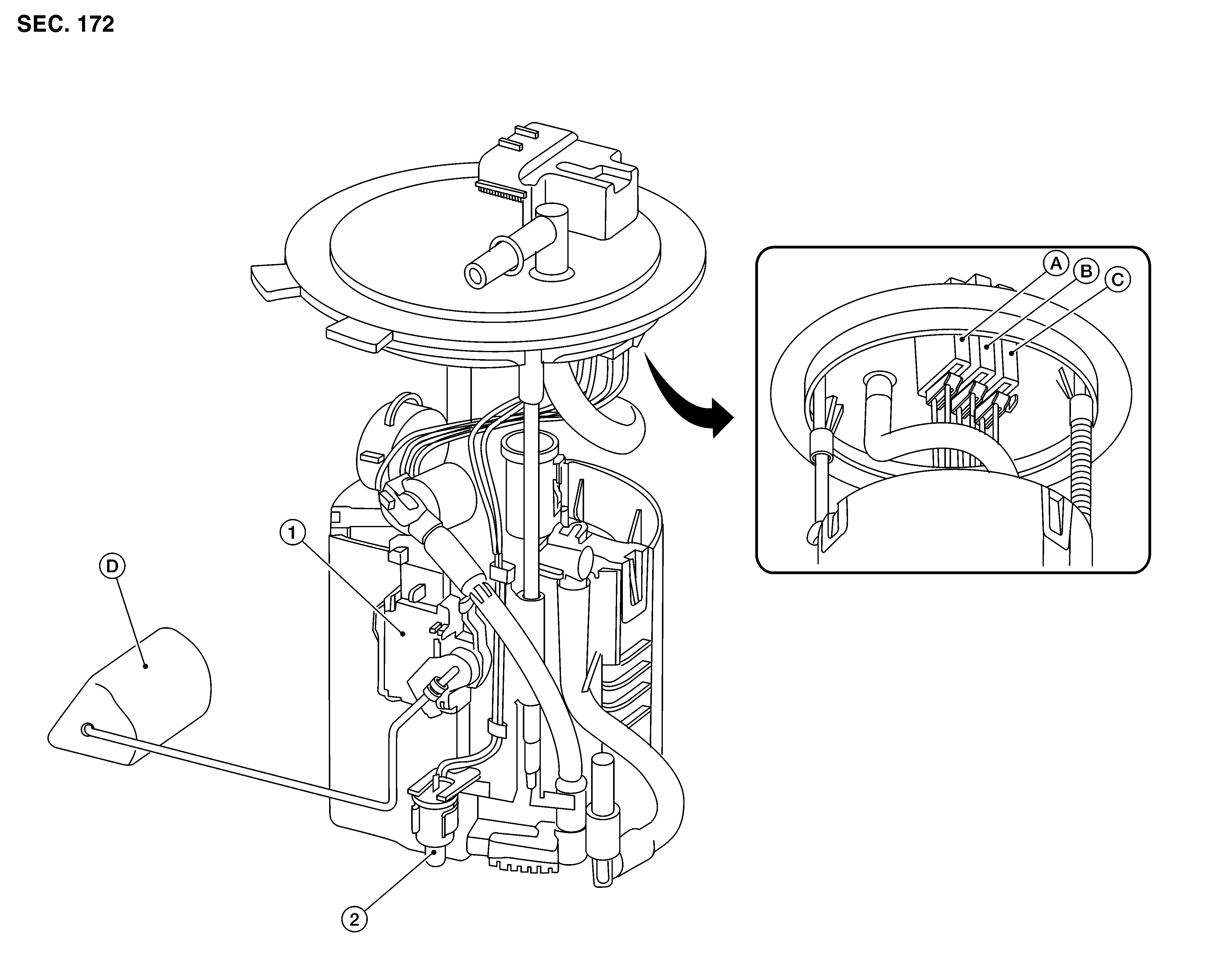

Exploded View
Exploded View
Fuel Level Sensor Unit
Courtesy of NISSAN
1.
Fuel level sensor unit
2.
Fuel tank temperature sensor
A.
Fuel level sensor unit harness connector
B.
Fuel pump harness connector
C.
Fuel tank temperature sensor harness connector
D.
Float arm assembly
