EVAP Canister
›

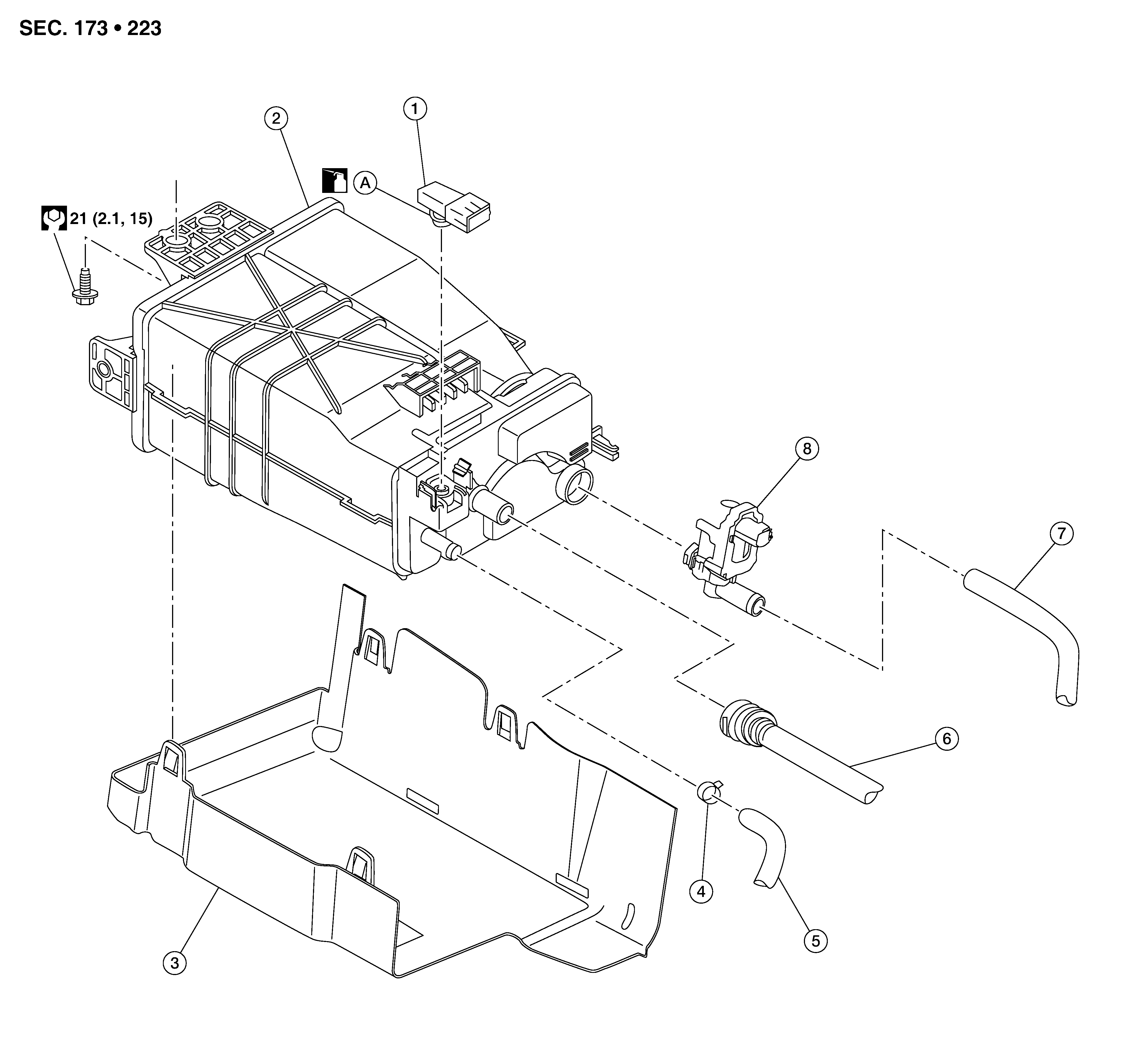

Exploded View
Exploded View
EVAP CANISTER
Courtesy of NISSAN
1.
EVAP canister control pressure sensor
2.
EVAP canister
3.
Shield
4.
Clamp
5.
EVAP canister purge hose
6.
EVAP canister vent line
7.
EVAP canister vent control valve hose
8.
EVAP canister vent control valve
A.
O-ring
