Exploded View

WARNING: This page is about a different car, the 2022 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

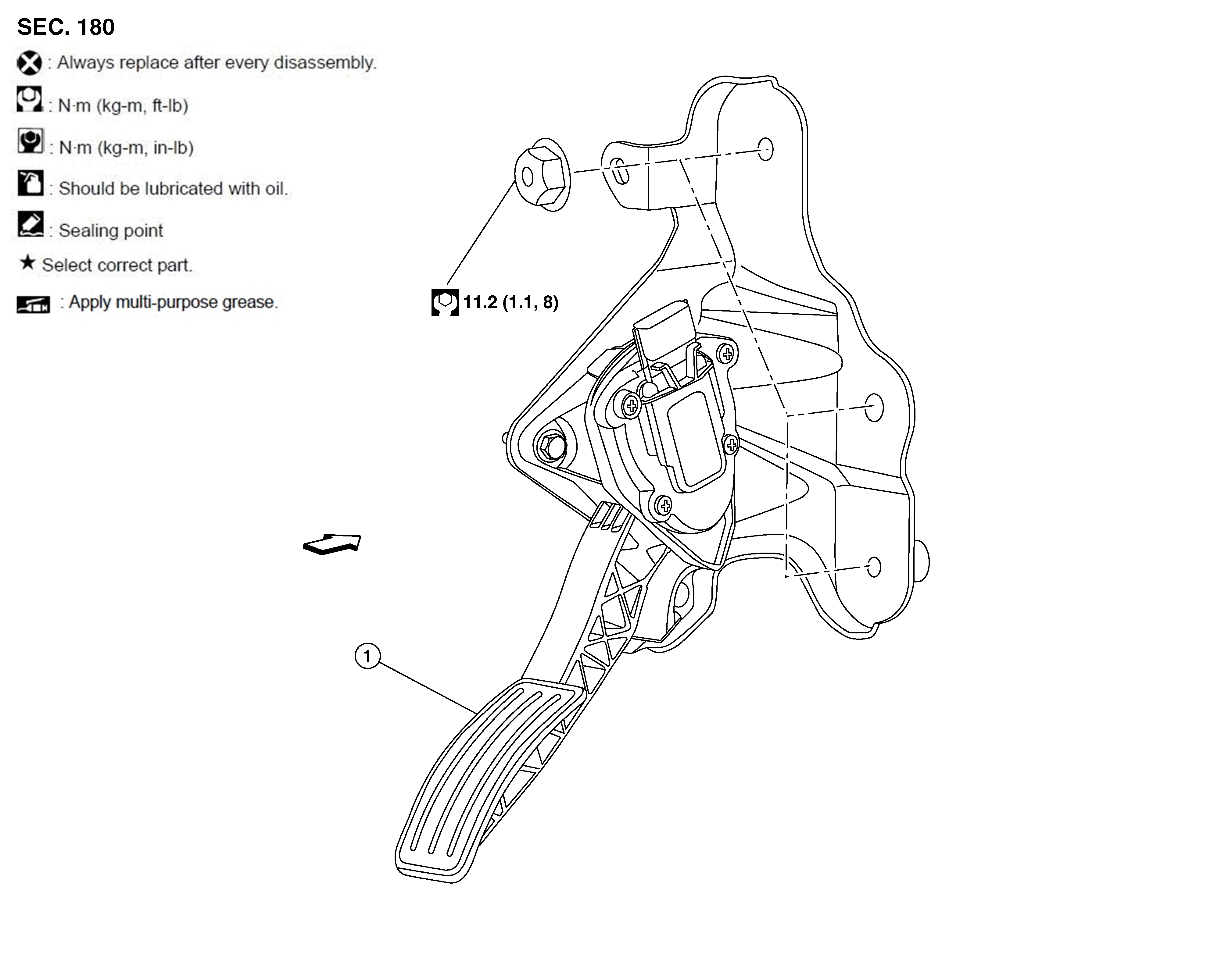

Fig 1: Accelerator Control System Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Accelerator pedal assembly

Front
