Exploded View

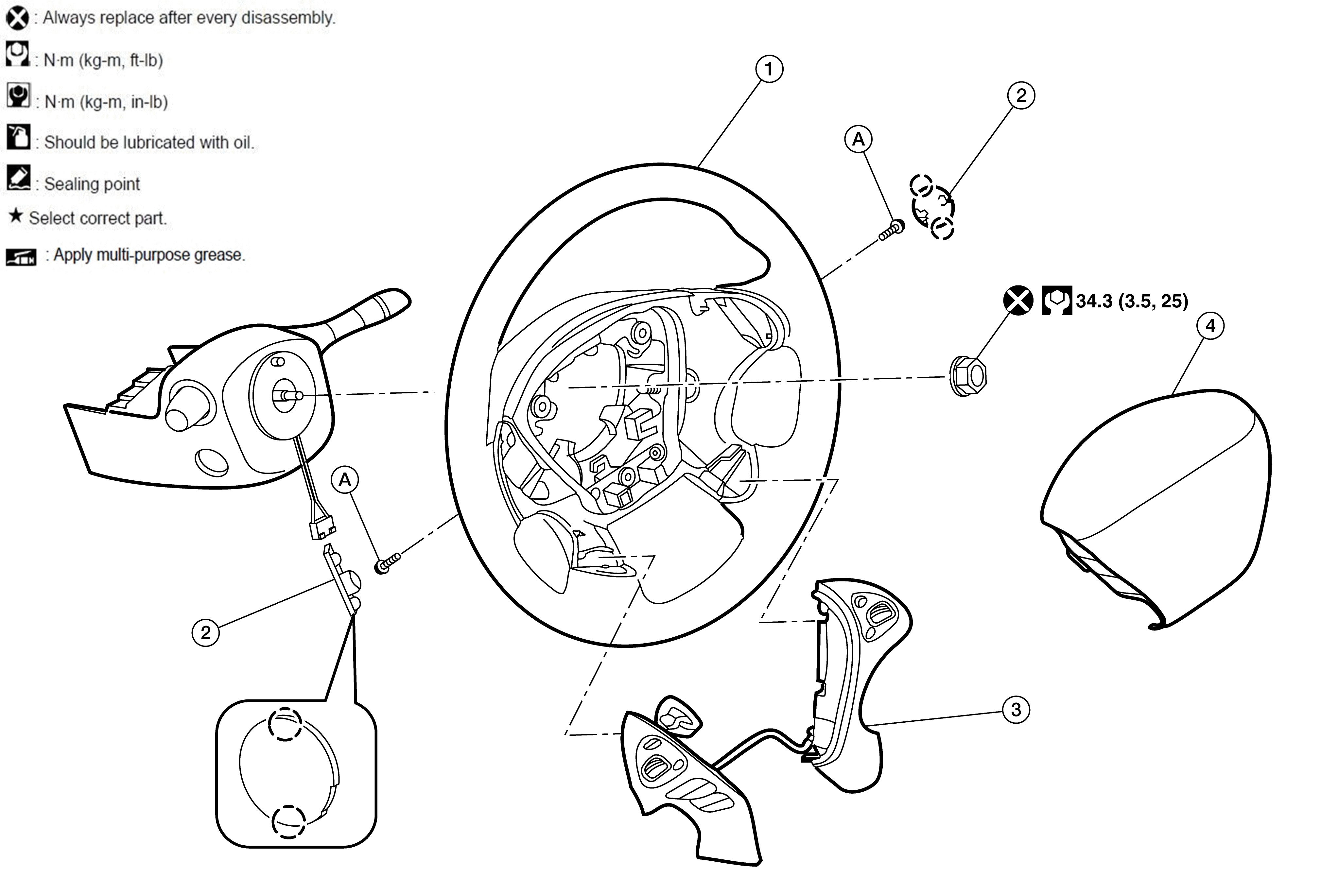

Fig 1: Steering Wheel With Torque Specifications
GNSDB52846Courtesy of NISSAN
1. Steering wheel 2. Cover 3. Steering switches
4. Driver air bag module A. Refer to Exploded View . SYMBOL Pawl
