Exploded View

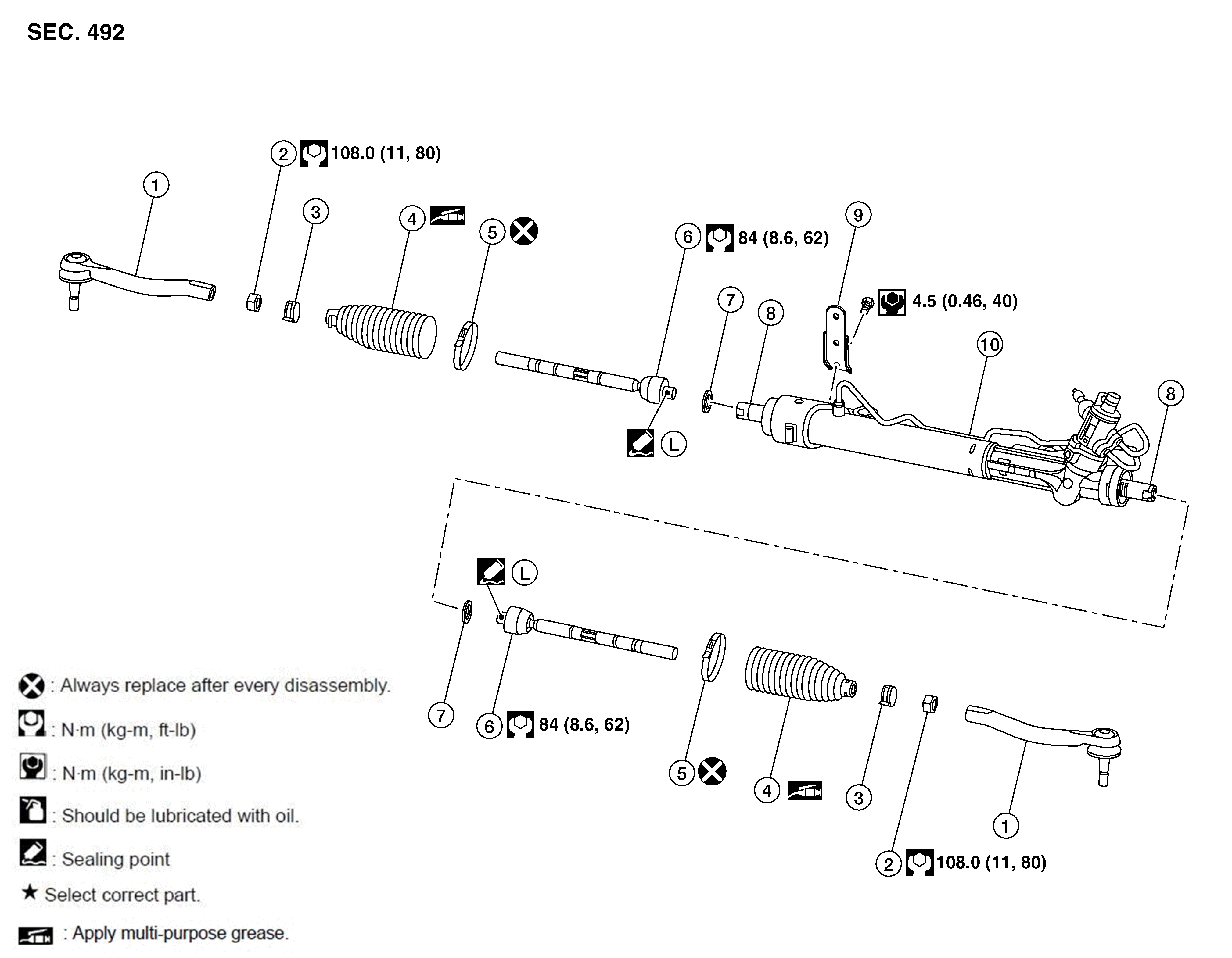

Fig 1: Steering Gear And Linkage With Torque Specifications
GNSDB46704Courtesy of NISSAN
1. Outer socket 2. Inner socket lock nut 3. Small boot clamp
4. Boot 5. Large boot clamp 6. Inner socket
7. Spacer 8. Rack bar (not serviceable) 9. Bracket
10. Steering gear
