Component Location

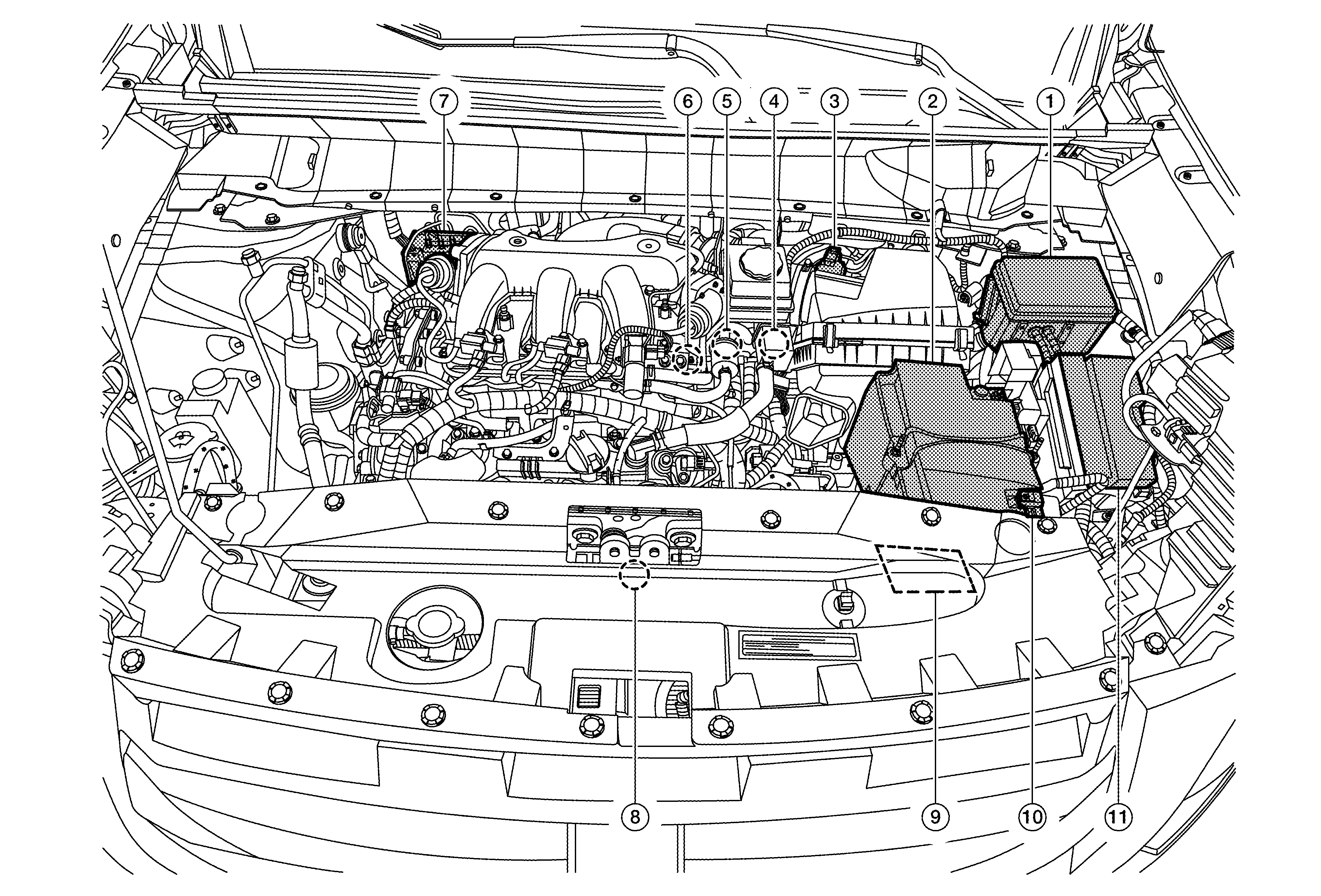

Engine Room Component

Courtesy of NISSAN

	IPDM E/R		12 V Battery		Mass air flow sensor (with intake air temperature sensor)
	Brake booster pressure sensor		Engine coolant temperature sensor		Crankshaft position sensor 2
	ABS actuator and electric unit (control unit)		Hood switch		ECM
	Battery current sensor		Relay box

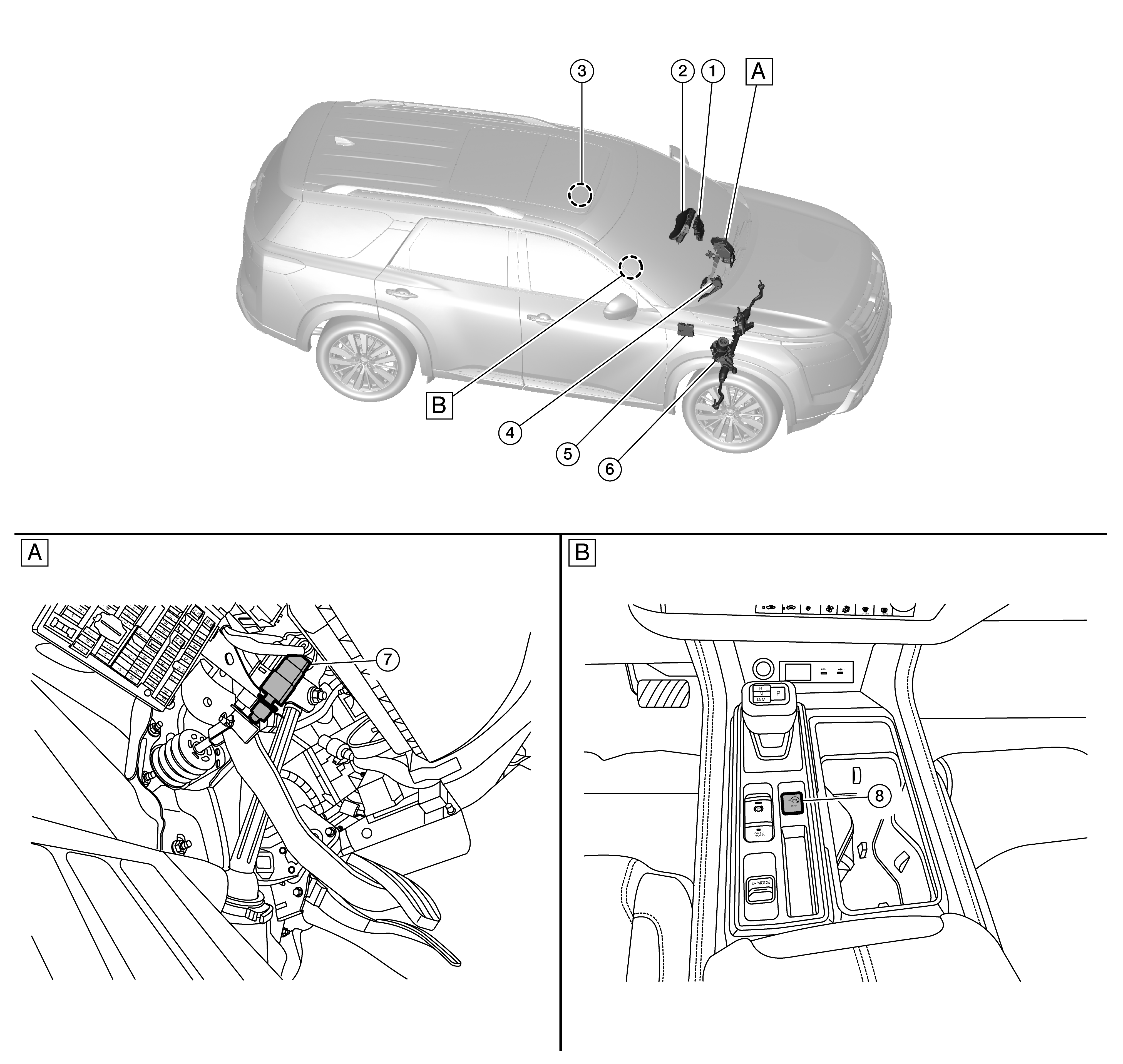

Body Compartment

Courtesy of NISSAN

Pedal periphery

Center console area

	BCM		Combination meter		Door switch (driver side)
	Accelerator pedal position sensor		A/C auto amp.		EPS control unit
	Stop lamp switch		Stop/start OFF switch
