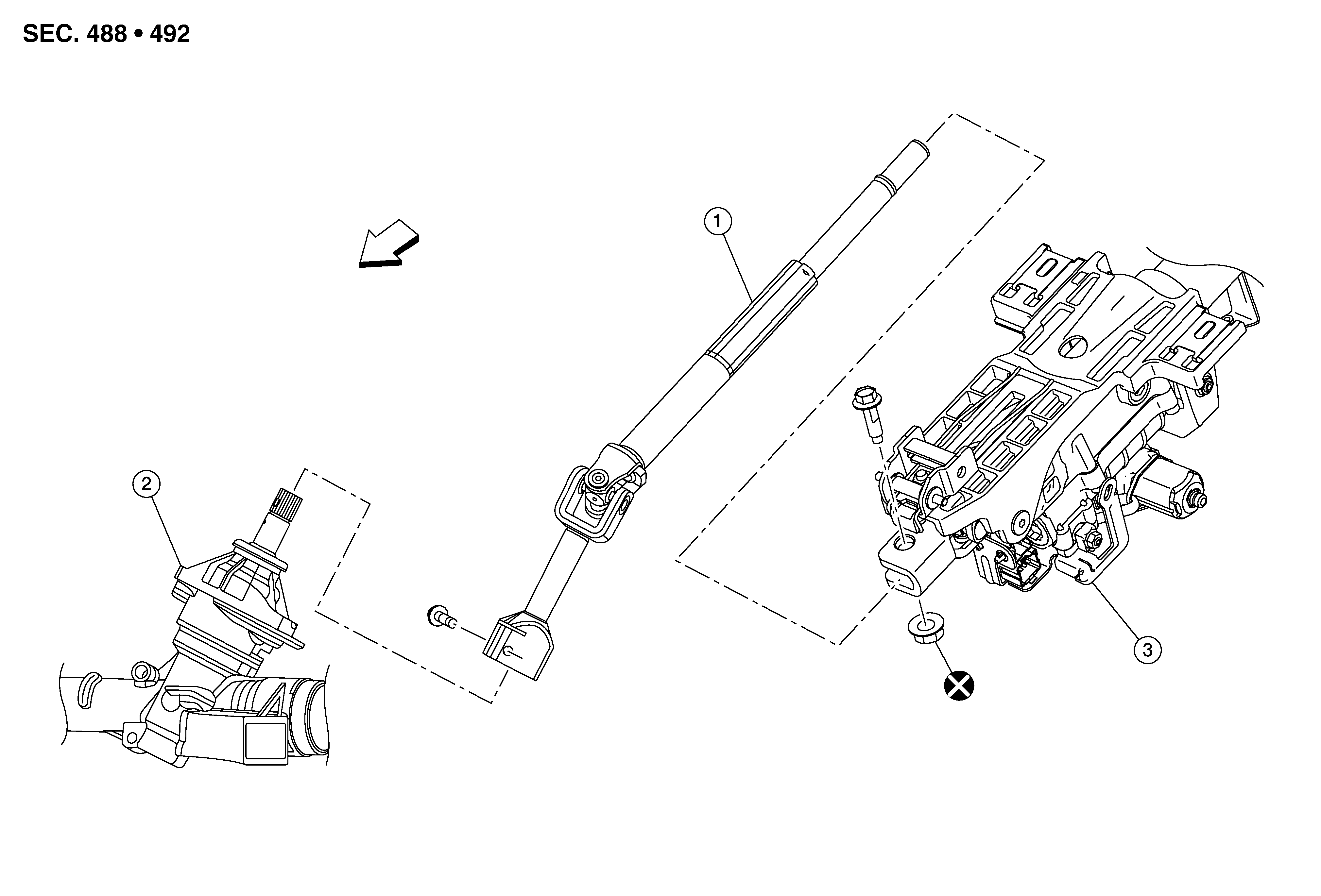

Exploded View

GNSDB46149Courtesy of NISSAN
1. Lower joint 2. Steering gear 3. Steering column
SYMBOL Front
