Exploded View

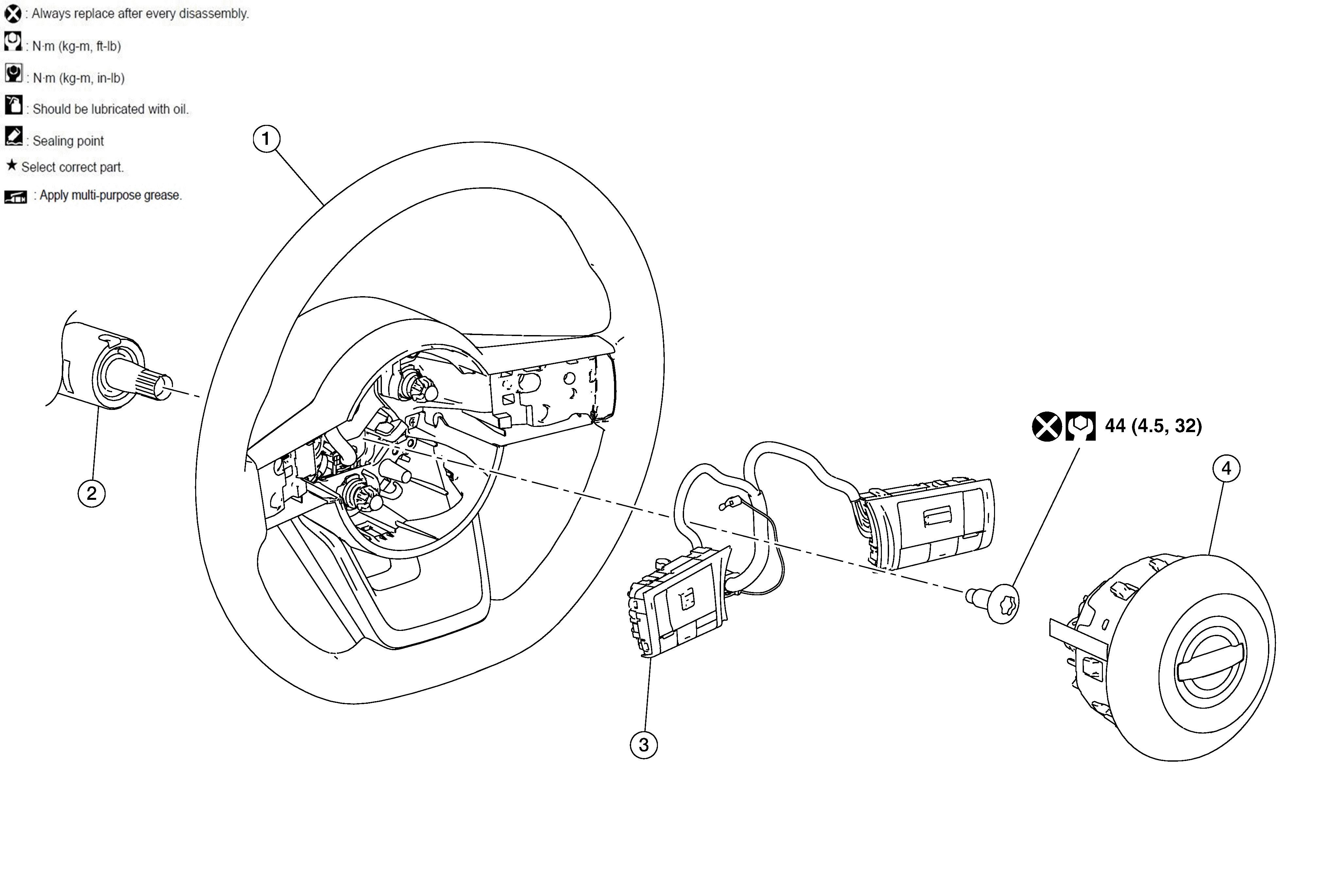

Fig 1: Steering Wheel With Torque Specifications
GNSDB46141Courtesy of NISSAN
1. Steering wheel 2. Steering column 3. ICC Steering switches
4. Driver air bag module
