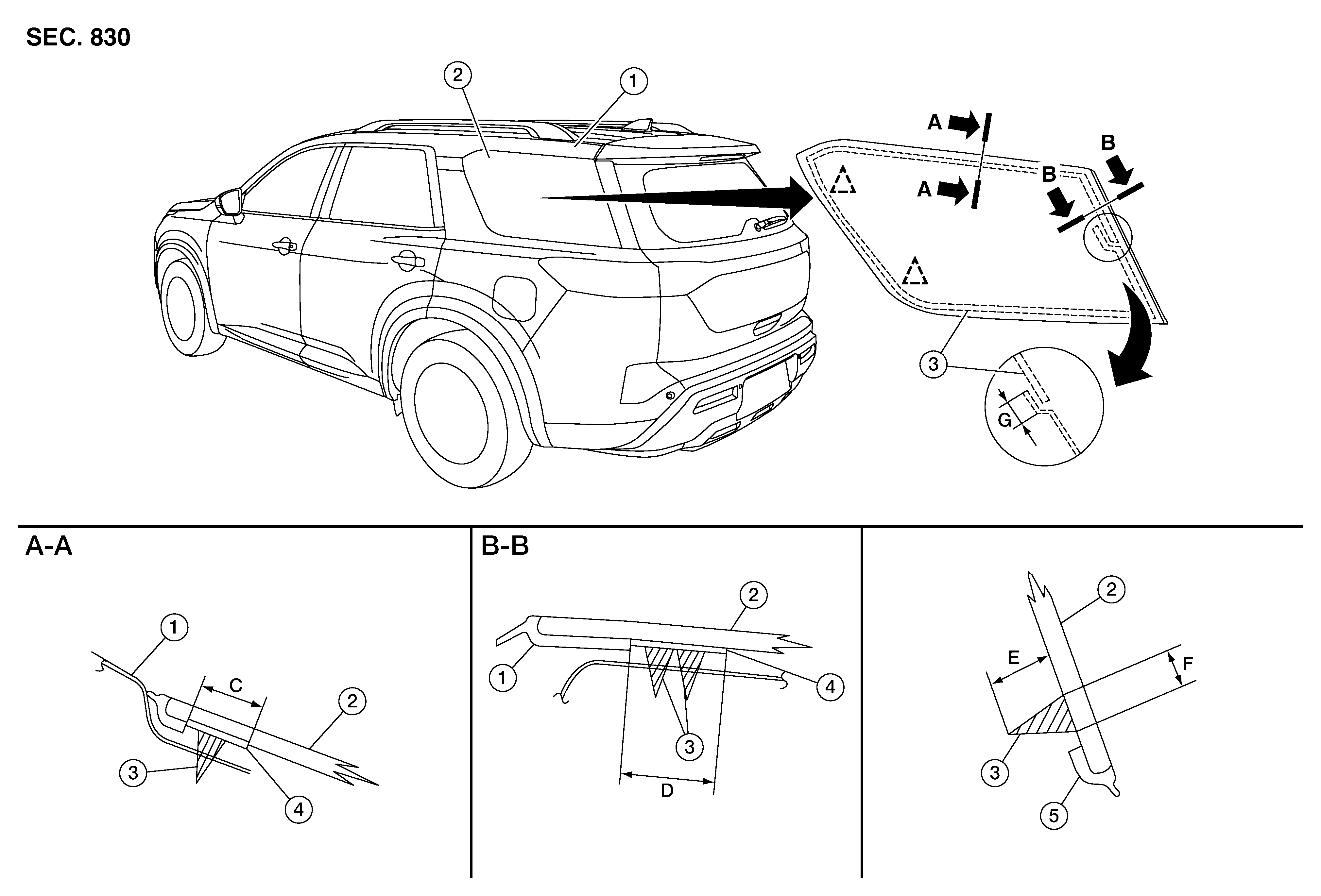

Exploded View

Courtesy of NISSAN

1.	Quarter window glass molding	2.	Quarter window glass	3.	Adhesive
4.	Primer	5.	Quarter window glass molding	C.	15 mm (0.59 in)
D.	21 mm (0.83 in)	E.	12 + 2, - 0 mm (0.47 + 0.08, - 0 in)	F.	7 + 2, - 0 mm (0.27 + 0.08, - 0 in)
G.	30 mm (1.18 in)	:	Clip
