Removal and Installation
REMOVAL
CAUTION:
If replacing chassis control module, Perform "ADDITIONAL SERVICE WHEN REPLACING CHASSIS CONTROL MODULE." Refer to Description .
- Remove the instrument panel assembly. Refer to Removal and Installation .

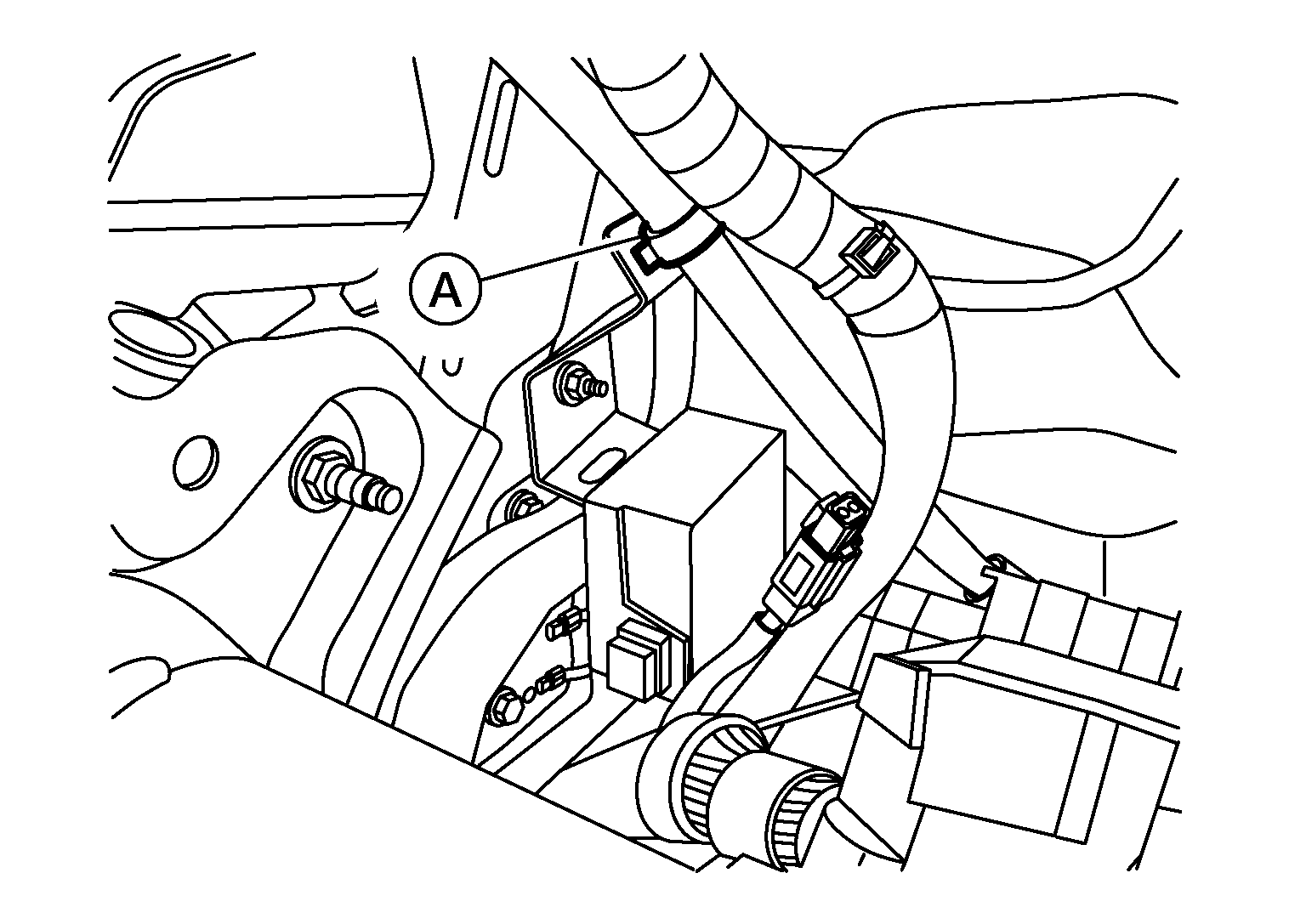

- Release clip (A).
- Disconnect the harness connector from chassis control module.

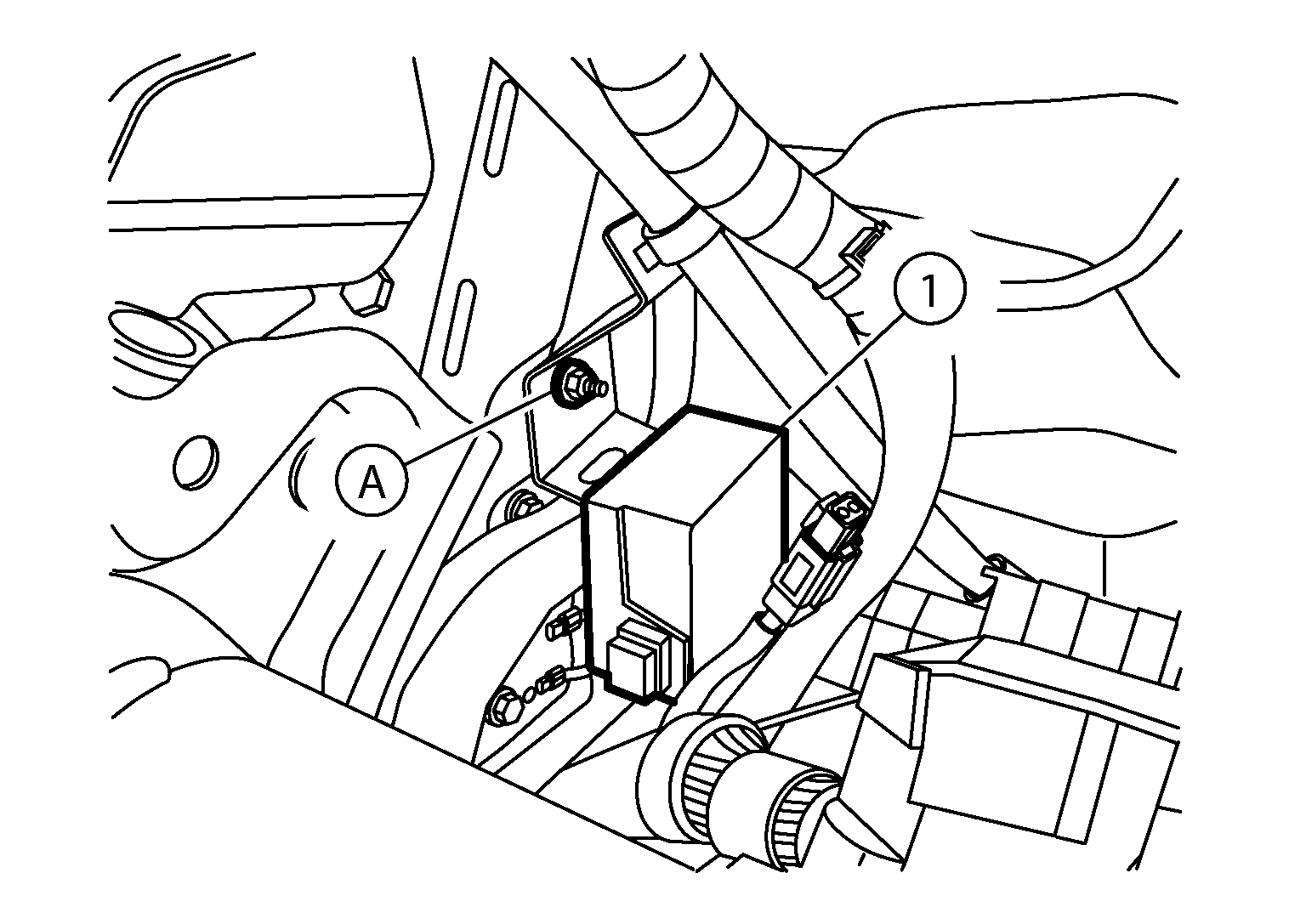

- Remove nut (A), then remove chassis control module (1).CAUTION:
Do not drop the chassis control module.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
If replacing chassis control module, perform "ADDITIONAL SERVICE WHEN REPLACING CHASSIS CONTROL MODULE." Refer to Description .
