Exploded View

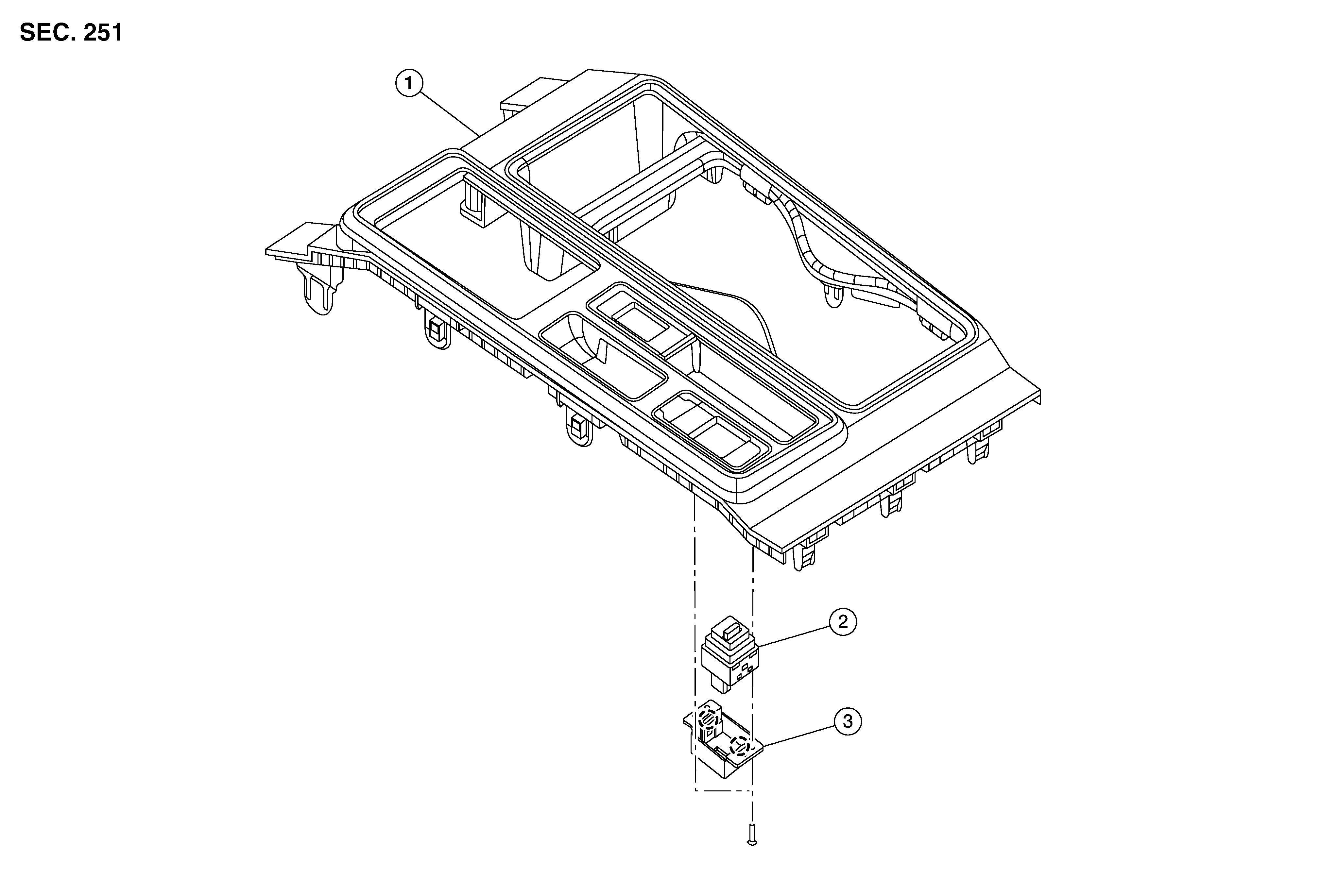

2WD MODELS

GNSDB45112Courtesy of NISSAN
1. Shift selector finisher 2. Drive mode switch 3. Drive mode switch bracket SYMBOL Pawl

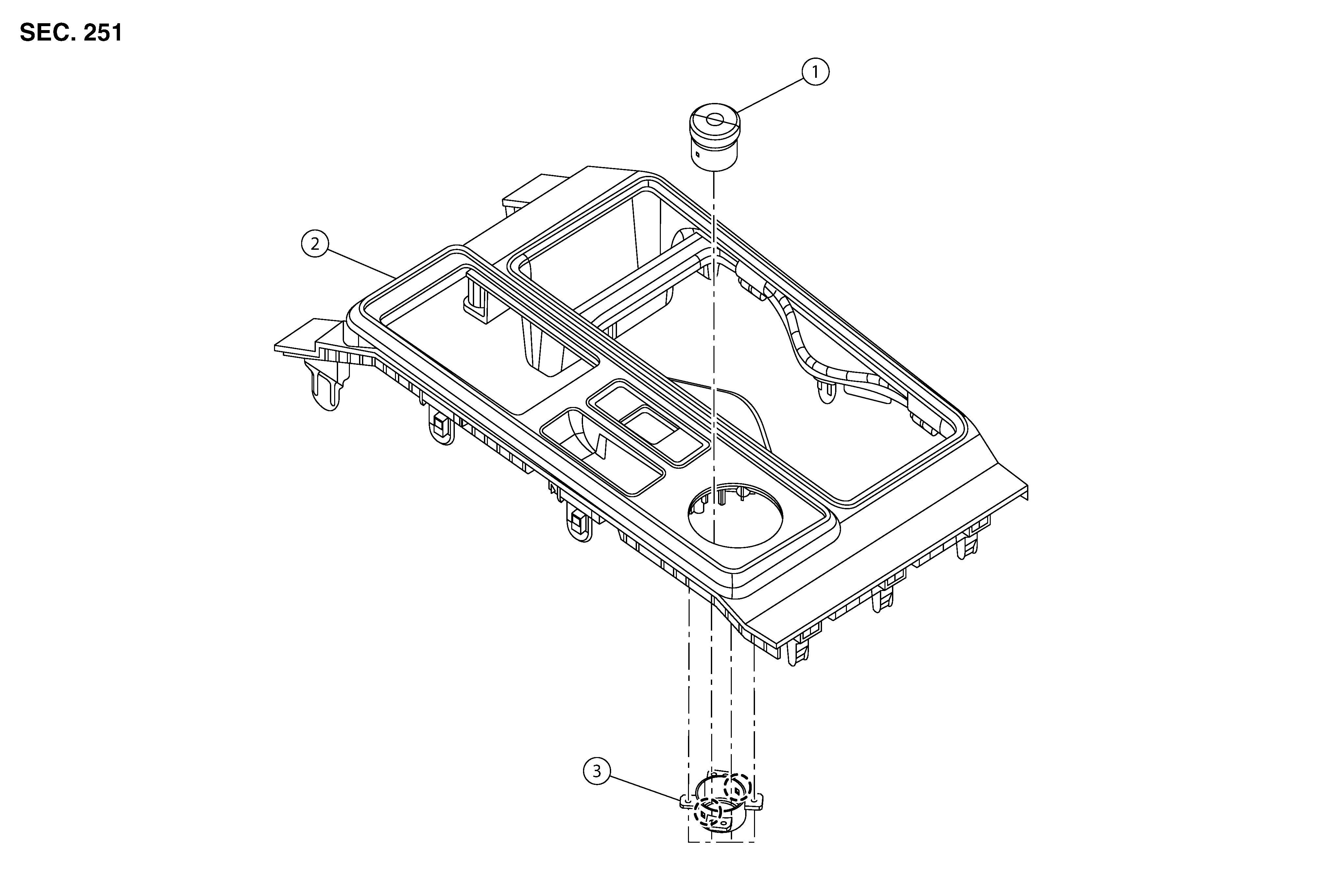

4WD MODELS

GNSDB45113Courtesy of NISSAN
1. Drive mode switch 2. Shift selector finisher 3. Drive mode switch bracket SYMBOL Pawl
