Exploded View

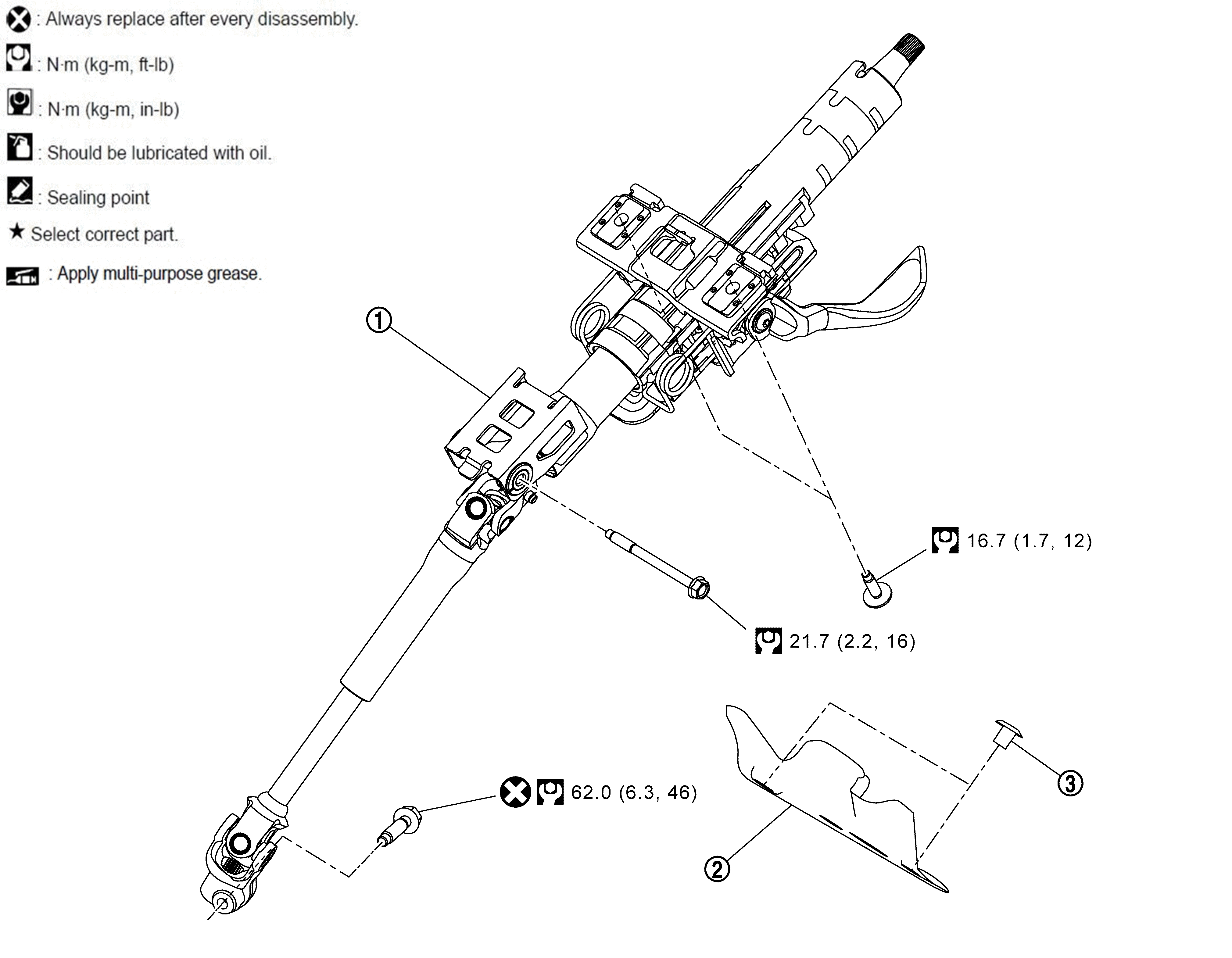

Fig 1: Steering Column With Torque Specifications
GNSDB34285Courtesy of NISSAN
SYMBOL Steering column assembly SYMBOL Steering shaft lower cover SYMBOL Clip
SYMBOL : N.m (kg-m, ft-lb)
SYMBOL : Always replace after every disassembly.
