Engine Lubrication System

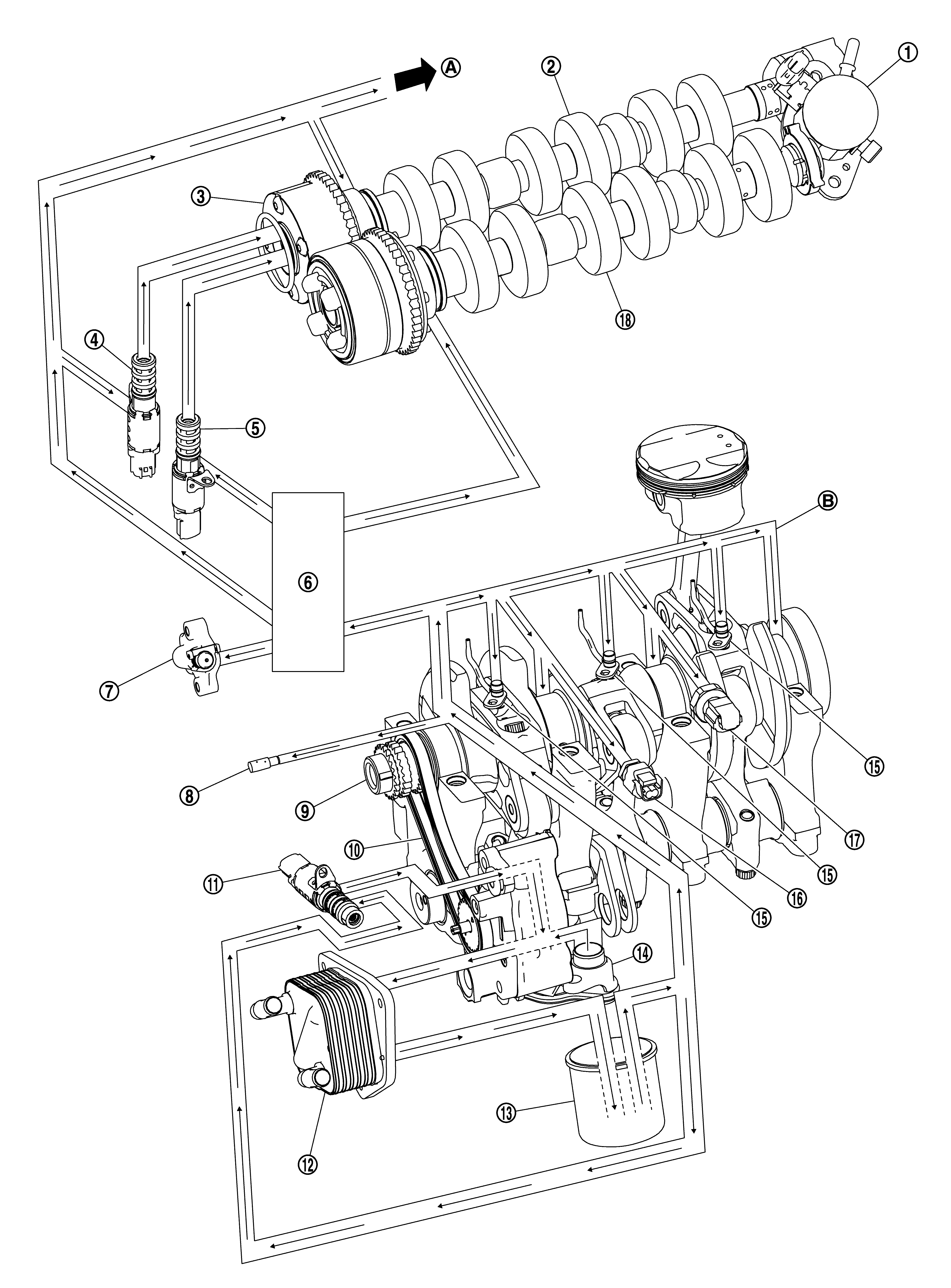

GNSDB37560Courtesy of NISSAN
SYMBOL High pressure fuel pump SYMBOL Camshaft (EXH) SYMBOL Camshaft sprocket (EXH)
SYMBOL Exhaust valve timing control solenoid valve SYMBOL Exhaust valve timing intermediate lock control solenoid valve SYMBOL Front cover
SYMBOL Timing chain tensioner SYMBOL Timing chain oil jet SYMBOL Crankshaft
SYMBOL Oil pump chain SYMBOL Engine oil pressure control solenoid valve SYMBOL Oil cooler
SYMBOL Oil filter SYMBOL Oil strainer SYMBOL Piston oil jet
SYMBOL Engine oil temperature sensor SYMBOL Engine oil pressure sensor SYMBOL Camshaft (INT)
SYMBOL To oil pan SYMBOL Main gallery
