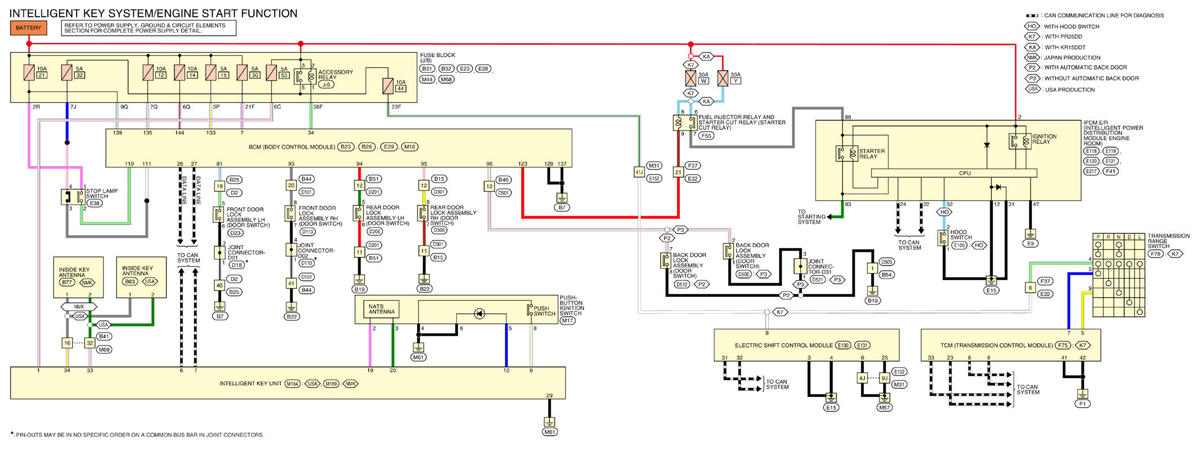

Intelligent Key System/Engine Start Function: Wiring Diagram
Courtesy of NISSAN NORTH AMERICA, INC
Courtesy of NISSAN NORTH AMERICA, INC
