Removal and Installation
CAUTION:
Never bend the fixing pawl of power window switch finisher.
REMOVAL
- Remove power window switch finisher. Refer to Removal and Installation .

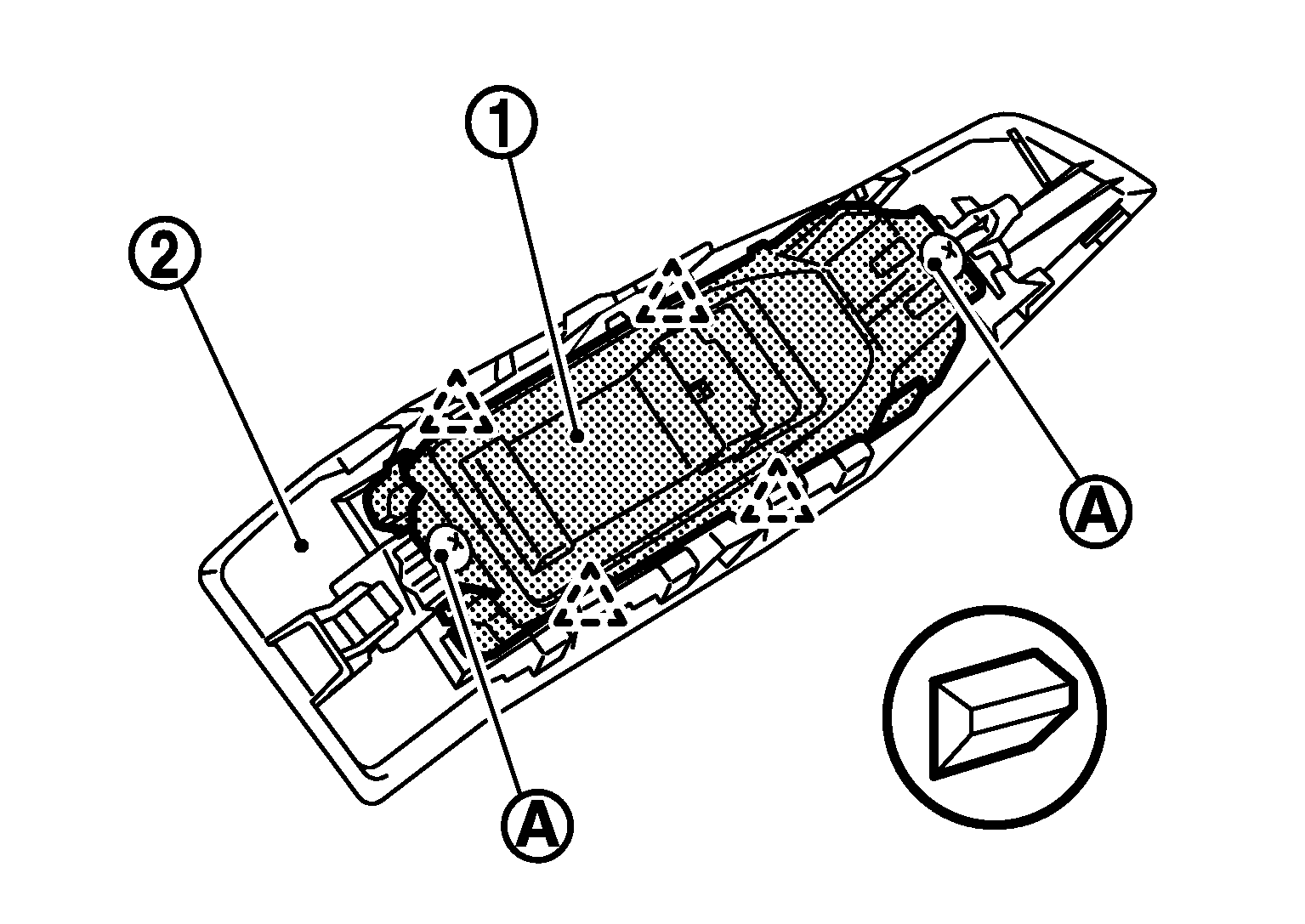

- Remove power window main switch fixing screws
, and then remove power window main switch
from power window switch finisher
.
: Pawl
INSTALLATION
Note the following, and then install in the reverse order of removal.
CAUTION:
When power window main switch in a vehicle with AUTOMATIC DRIVE POSITIONER is replaced, re-register mirror surface position information. Refer to Description .
