Front Power Window Switch (Passenger side)

COMPONENT FUNCTION WITHIN SYSTEM

Courtesy of NISSAN

Front power window switch (passenger side) controls front power window motor (passenger side).

INDIVIDUAL COMPONENT FUNCTION

Transmits signal to front power window motor (passenger side).

COMPONENT OPERATION

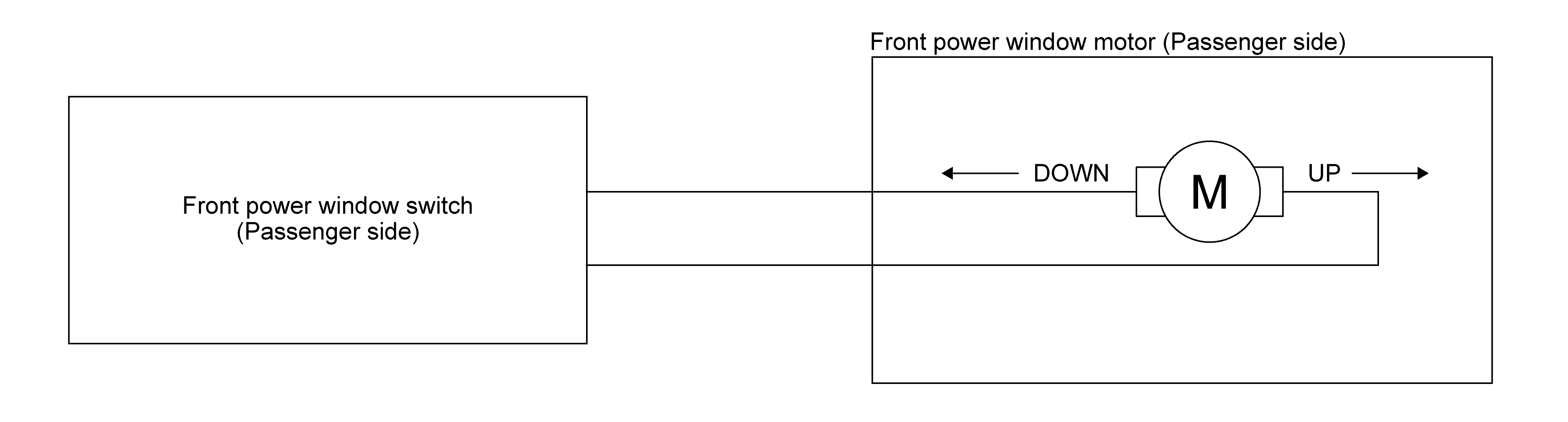

• When front power window switch (passenger side) is operated, it transmits signal to front power window motor (passenger side).

  Courtesy of NISSAN

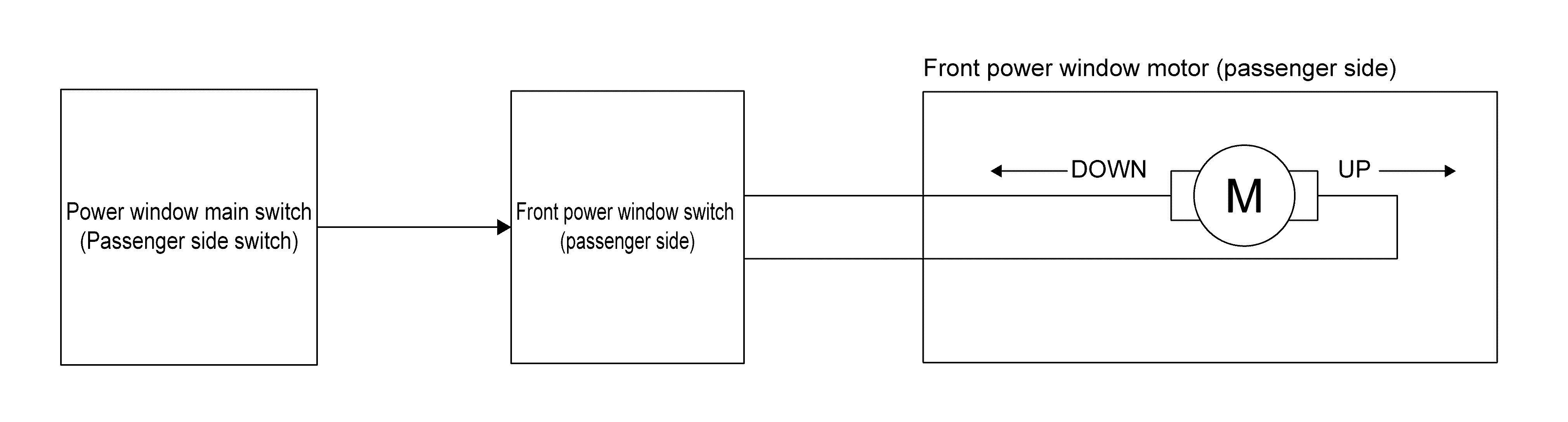

• Transmits the operation signal from power window main switch (passenger side switch) to front power window motor (passenger side).

  Courtesy of NISSAN

COMPONENT LOCATION

Front power window switch (passenger side) is installed to front door finisher (passenger side). Refer to Component Location .
