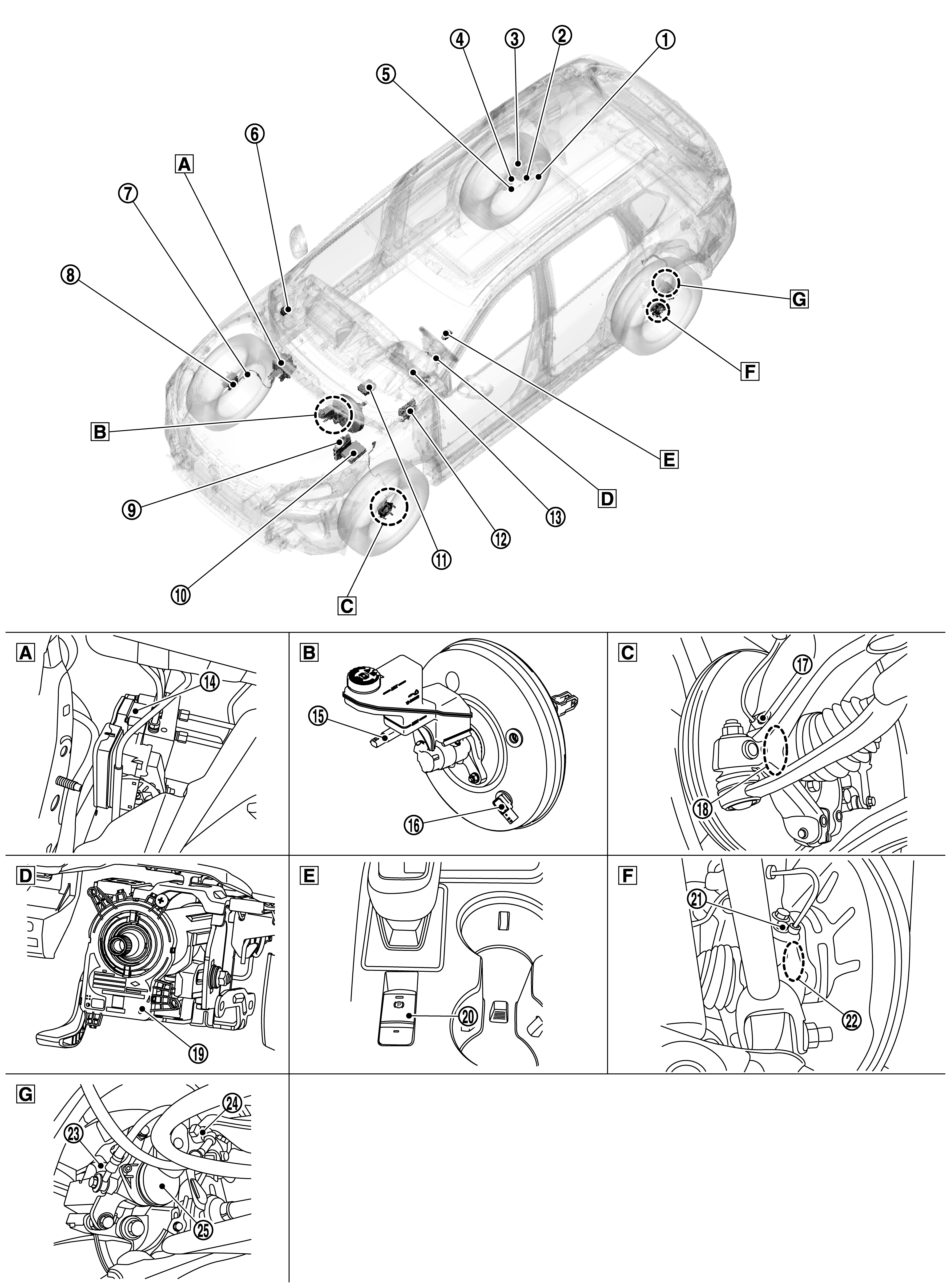

| 1. |
Parking brake actuator harness (RH) |
2. |
Parking brake actuator (RH) |
3. |
Rear brake caliper assembly (RH) |
| 4. |
Rear RH sensor rotor |
5. |
REAR WHEEL SENSOR RH |
6. |
Chassis control module. Refer to Component Location
for detailed installation location. |
| 7. |
FRONT WHEEL SENSOR RH |
8. |
Front RH sensor rotor |
9. |
ECM (Engine Control Module). Refer to
Component Location
(KR15DDT engine models) for detailed installation location. |
| 10. |
IPDM E/R (Intelligent Power Distribution Module Engine Room). Refer to Component Location
for detailed installation location. |
11. |
TCM (Transmission Control Module). Refer to
Component Location
(KR15DDT engine models) for detailed installation location. |
12. |
BCM (Body Control Module). Refer to Component Location
for detailed installation location. |
| 13. |
Combination meter. Refer to Component Location
(full TFT meter), Component Location
(7 inch information display) for detailed installation location. |
14. |
ABS (Anti-lock Braking System) actuator and electric unit (control unit) |
15. |
Brake fluid level switch |
| 16. |
Brake vacuum sensor |
17. |
FRONT WHEEL SENSOR LH |
18. |
Front LH sensor rotor |
| 19. |
Steering angle sensor |
20. |
Parking brake switch |
21. |
REAR WHEEL SENSOR LH |
| 22. |
Rear LH sensor rotor |
23. |
Rear brake caliper assembly (LH) |
24. |
Parking brake actuator harness (LH) |
| 25. |
Parking brake actuator (LH) |
