Exploded View

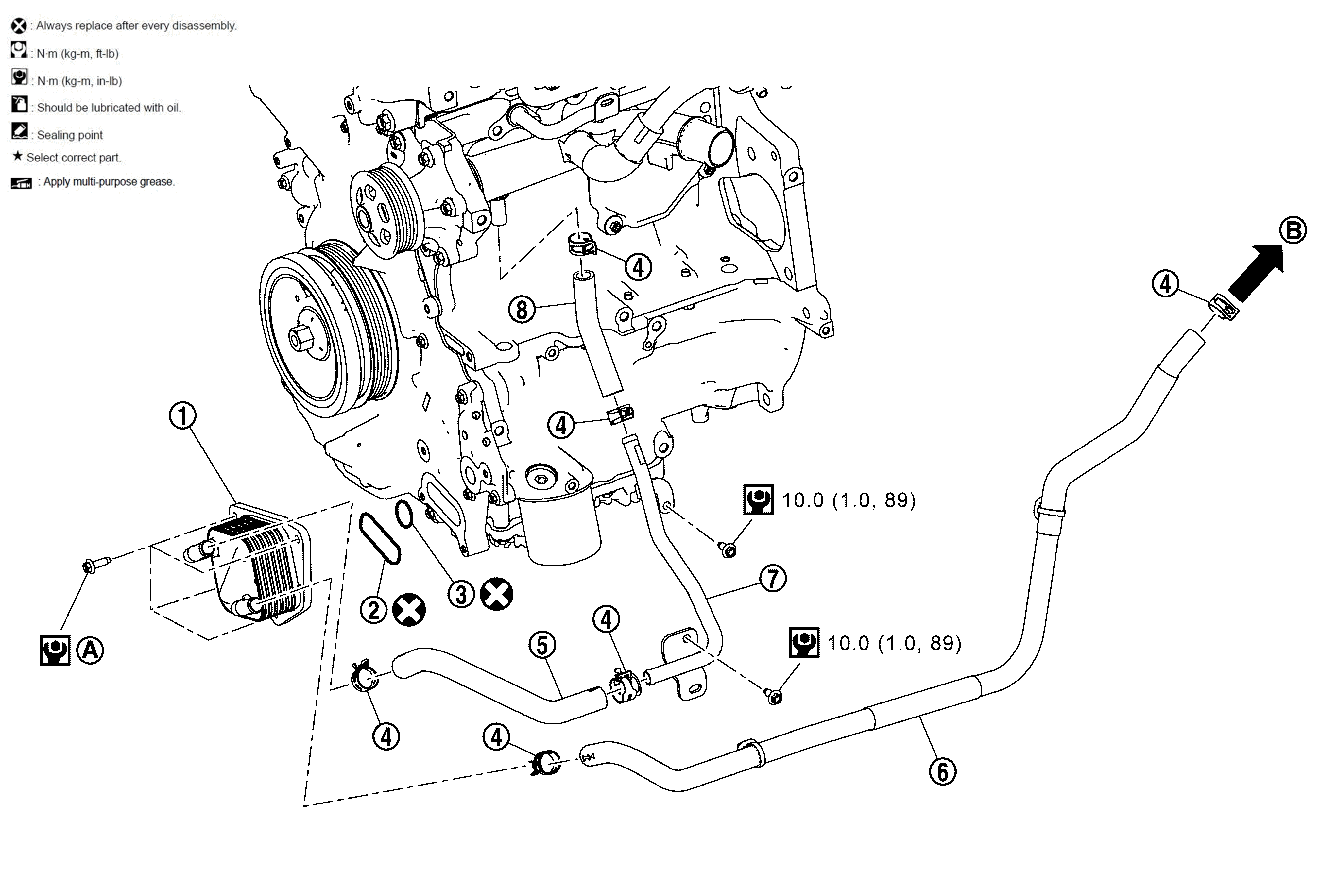

Fig 1: Oil Cooler With Torque Specifications
GNSDB34960Courtesy of NISSAN
SYMBOL Oil cooler SYMBOL Gasket SYMBOL Gasket
SYMBOL Clamp SYMBOL Water hose 1 SYMBOL Water hose 2
SYMBOL Water pipe SYMBOL Water hose 3
SYMBOL Comply with the assembly procedure when tightening. Refer to Removal and Installation . SYMBOL To CVT oil warmer. Refer to Exploded View .
SYMBOL : Always replace after every disassembly.
SYMBOL : N.m (kg-m, in-lb)
