Component Location

WARNING: This page is about a different car, the 2022 Nissan Rogue. However, it is still accessible from the selected car via links, so may be relevant.

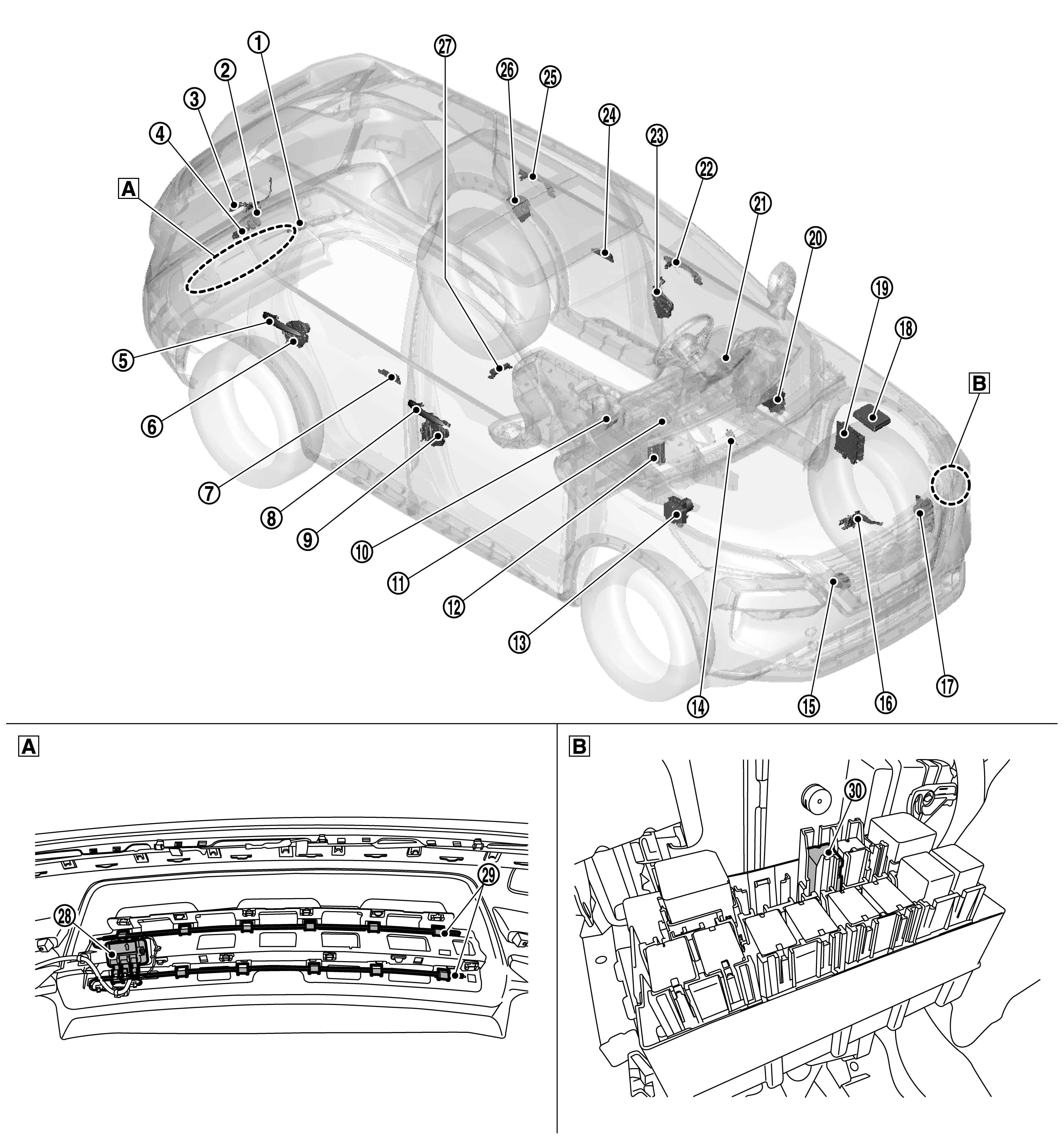

Fig 1: PR25DD

Courtesy of NISSAN NORTH AMERICA, INC.

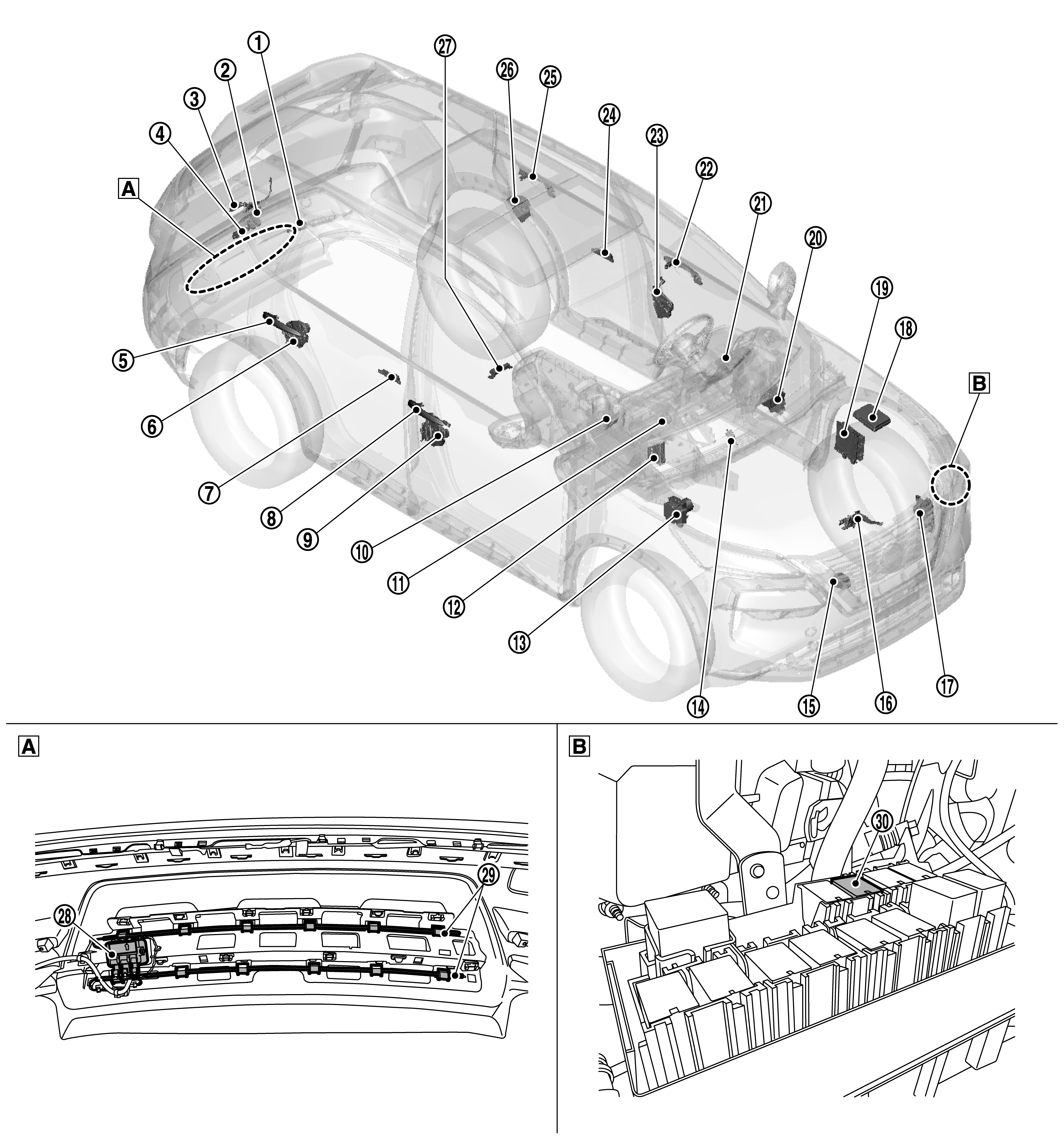

Fig 2: KR15DDT

Courtesy of NISSAN NORTH AMERICA, INC.

Inside key antenna ^*1	Back door lock assembly (back door switch)	Back door opener switch (request switch)
Outside key antenna (rear bumper)	Rear door request switch RH	Rear door lock assembly RH (door switch)
Outside key antenna (rear door RH)	Front door request switch RH	Front door lock assembly RH (door switch)
Intelligent Key unit Refer to Component Location .	Push-button ignition switch	TCU Refer to Component Location .
ABS actuator and electric unit (control unit) Refer to Component Location .	Stop lamp switch	Horn
Hood switch	TCM Refer to Component Location (CVT: GE0F14A).	IPDM E/R Refer to Component Location .
ECM Refer to Component Location (KR15DDT).	BCM Refer to Component Location .	Combination meter
Front door request switch LH	Front door lock assembly LH (door switch)	Outside key antenna (rear door LH)
Rear door request switch LH	Rear door lock assembly LH (door switch)	Inside key antenna ^*2
Hands free sensor control unit Refer to Component Location .	Hands free sensor	Starter cut relay
View with back side of rear bumper fascia assembly	View with front bumper fascia assembly removed

^*1 : Japan production

^*2 : USA production
