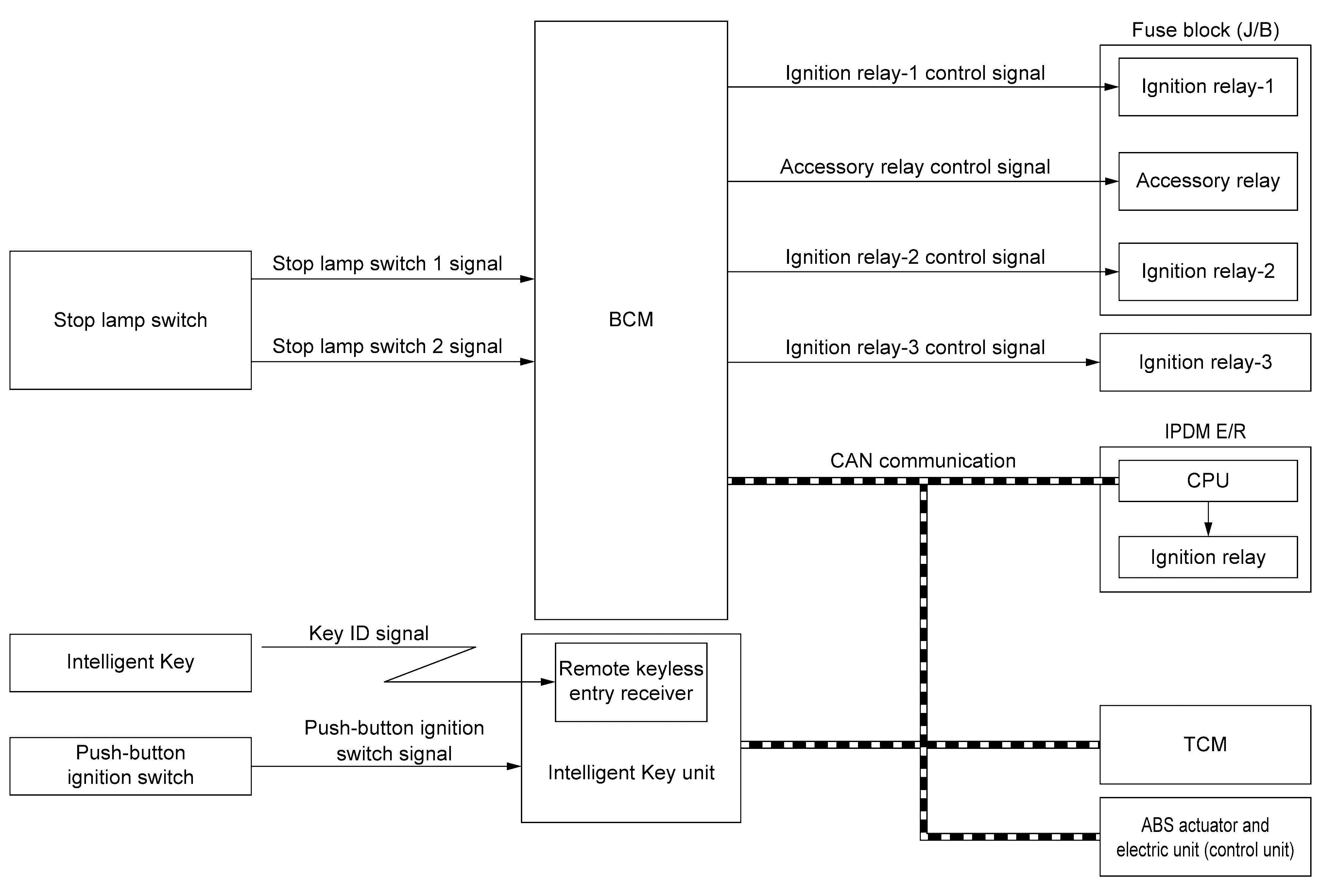

System Diagram
|
Component |
Function |
|
Intelligent Key |
Operates based on the results of electronic ID verification using two-way communication between the Intelligent Key and the vehicle (Intelligent Key unit). |
|
Push-button ignition switch |
Refer to Push-button Ignition Switch . |
|
Stop lamp switch |
Stop lamp switch detects that brake pedal is depressed, and then transmits ON/OFF signal to BCM. |
|
TCM |
Transmits shift position signal and cranking enable signal to BCM via CAN communication. |
|
Intelligent Key unit |
Transmits push-button ignition switch status signal to BCM via CAN communication. |
|
ABS actuator and electric unit (control unit) |
Transmits vehicle speed signal to BCM via CAN communication. |
|
BCM |
|
|
Ignition relay-1 |
Controlled by BCM and turns ON/OFF the battery power supply to each parts. |
|
Accessory relay |
|
|
Ignition relay-2 |
|
|
Ignition relay-3 |
|
|
IPDM E/R |
IPDM E/R controls the integrated ignition relay, and supplies voltage to the load according to the request from BCM via CAN communication. |
