Exploded View

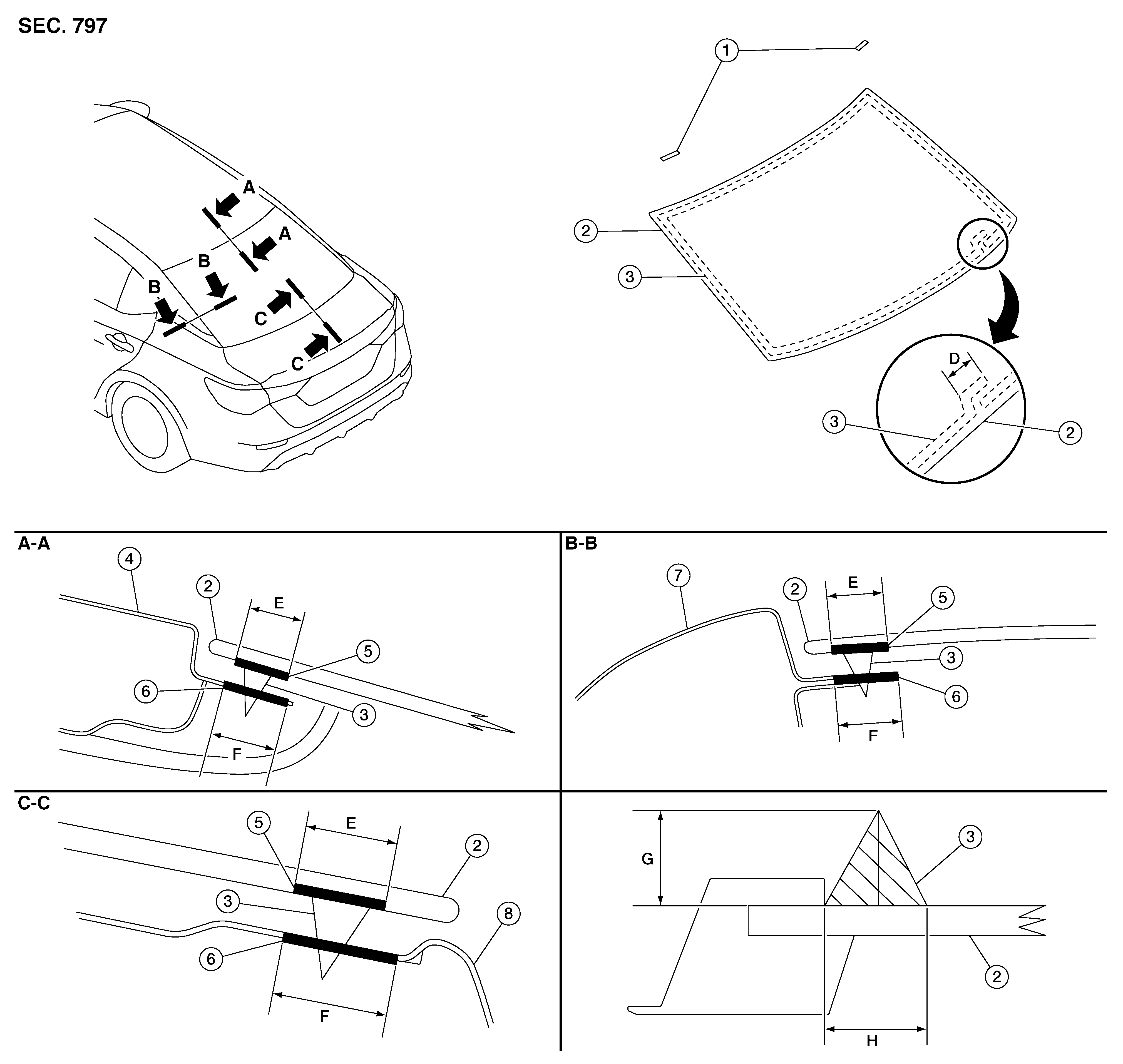

GNSDB46711Courtesy of NISSAN
1. Spacer 2. Rear window glass 3. Adhesive
4. Roof panel 5. Glass primer 6. Body primer
7. Body side outer 8. Body side outer D. 30 mm (1.2 in)
E. 13 mm (0.51 in) F. 15 mm (0.59 in) G. 14 mm ± 1.0 mm (0.55 ± 0.03)
H. 8.0 mm ± 1.0 mm (0.31 ± 0.03)
