Removal and Installation

REMOVAL

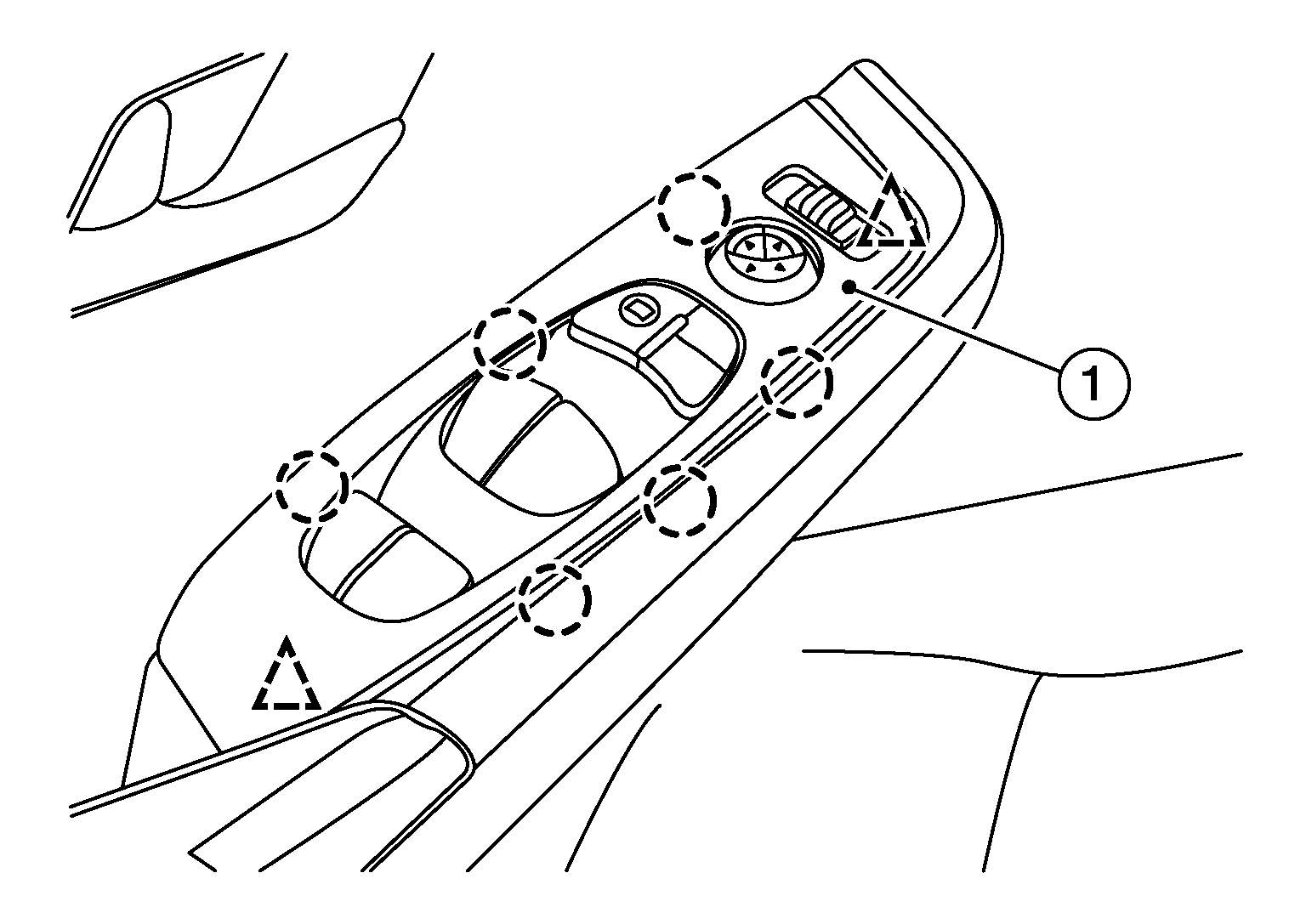

  1. Using suitable tool, release clips and pawls and remove main power window and door lock/unlock switch finisher (1).
    GNSDB47406Courtesy of NISSAN
    SYMBOL : Pawl
    SYMBOL : Clip
  2. Disconnect the harness connectors from the main power window and door lock/unlock switch and door mirror remote control switch.

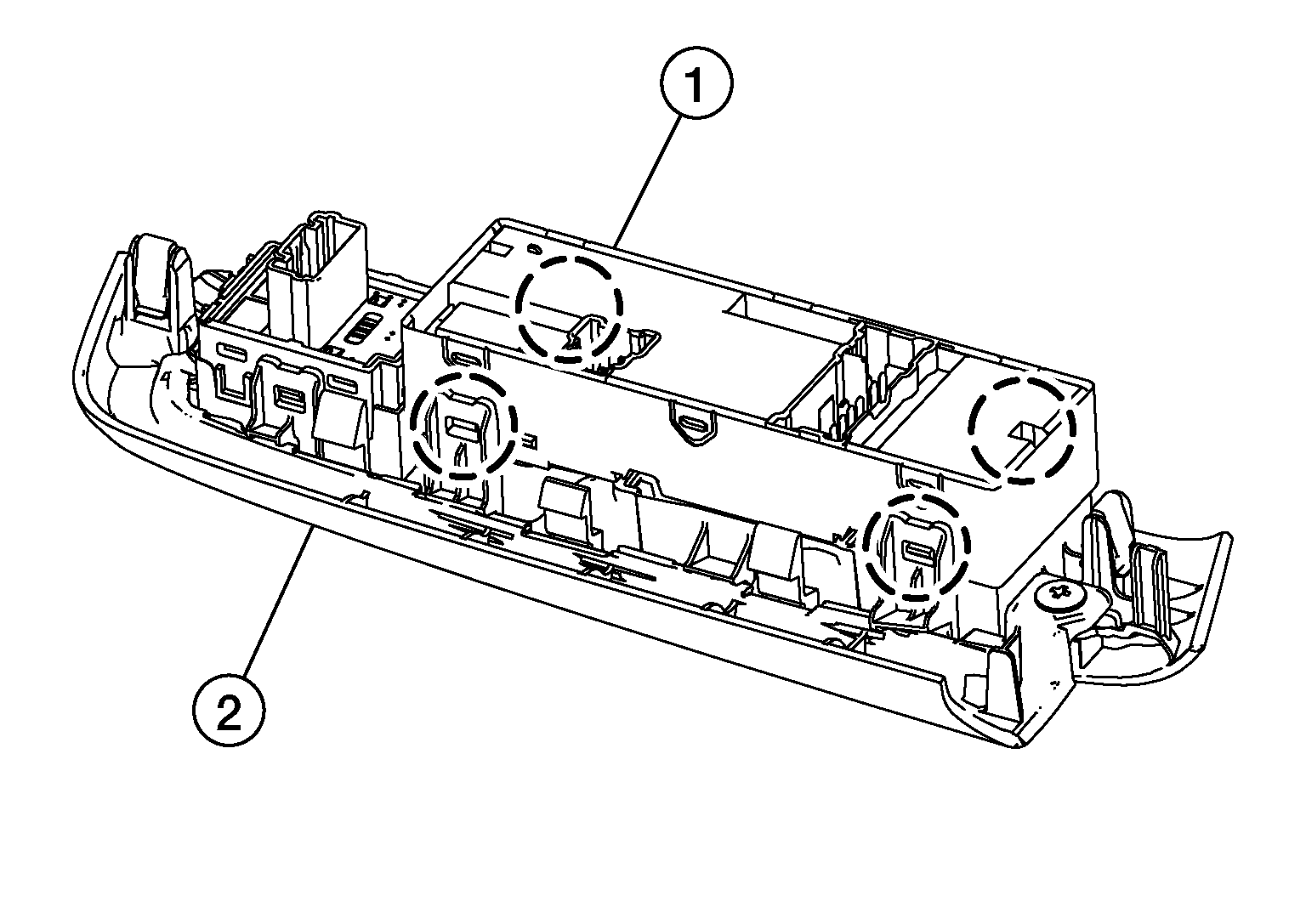

  3. Using a suitable tool, release pawls and remove the main power window and door lock/unlock switch (1) from the main power window and door lock/unlock switch finisher (2).
    GNSDB47960Courtesy of NISSAN
    SYMBOL : Pawl

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When the main power window and door lock/unlock switch is disconnected from the harness connector perform "ADDITIONAL SERVICE WHEN REPLACING MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH". Refer to Description .
