Removal and Installation

REMOVAL

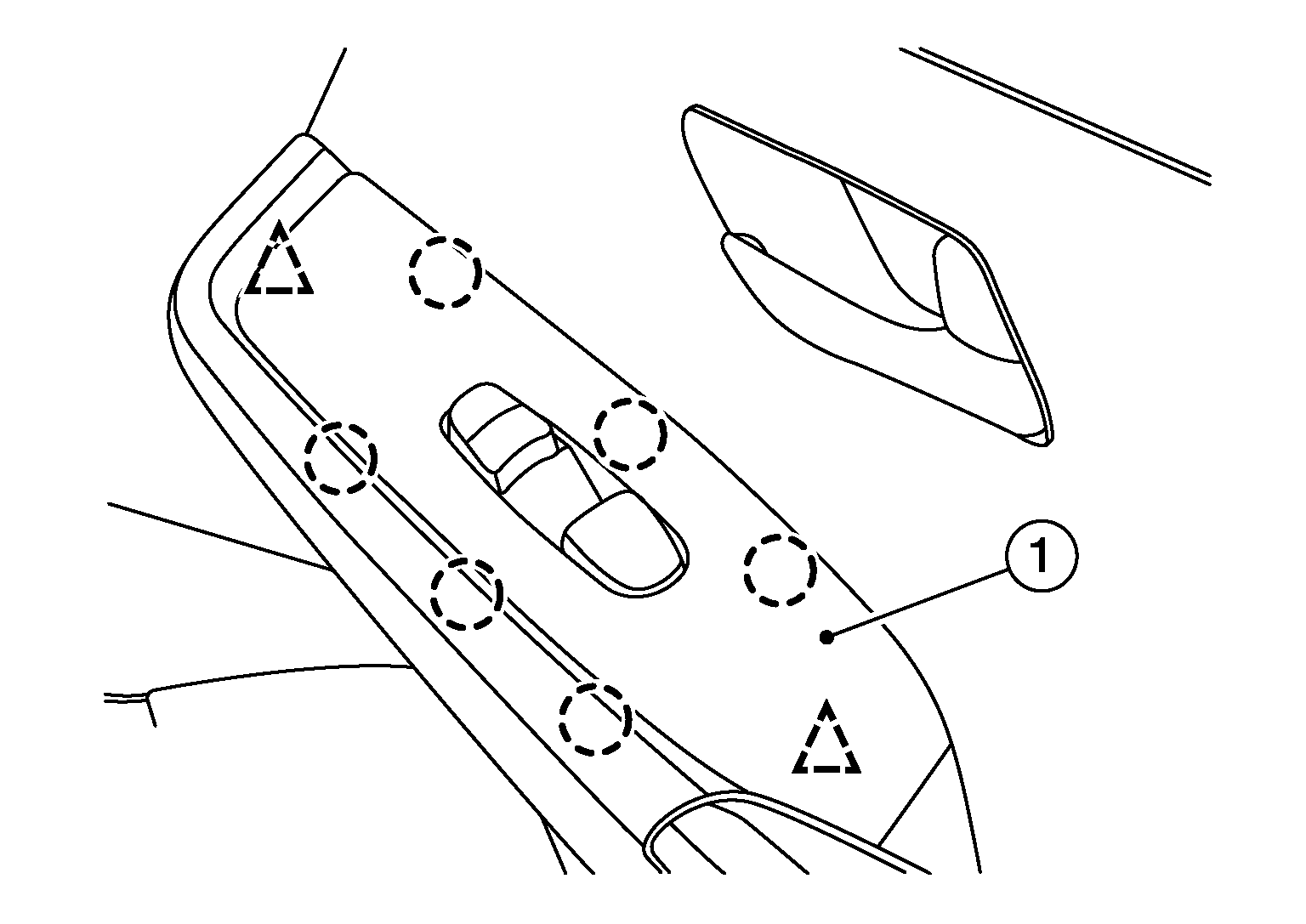

1. Using a suitable tool, release clips and pawls and remove the power window and door lock/unlock switch RH assembly (1).

   Courtesy of NISSAN

   	: Pawl
   	: Clip

2. Disconnect the harness connector from the power window and door lock/unlock switch RH.

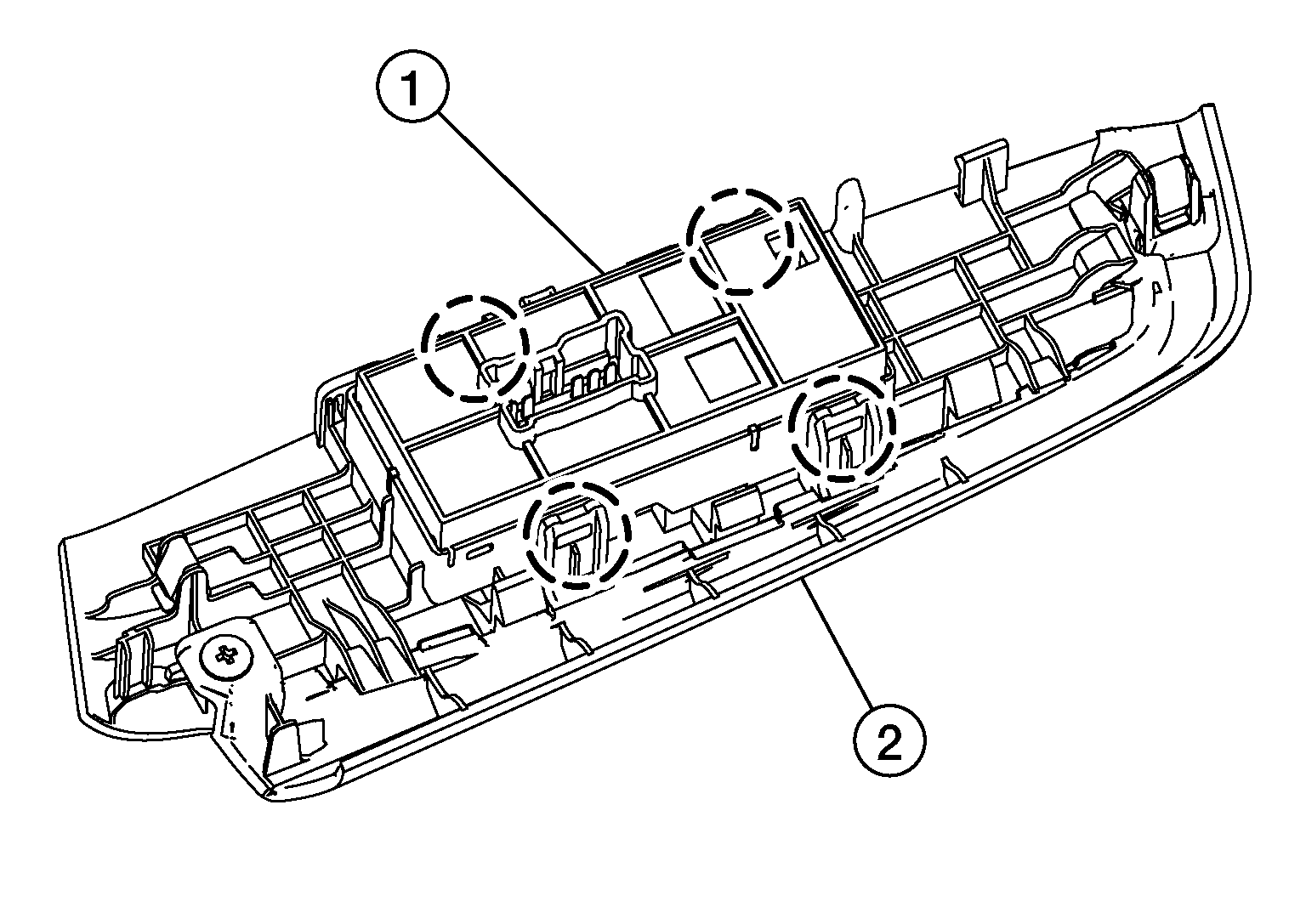

3. Using a suitable tool, release the pawls and remove the power window and door lock/unlock switch RH (1) from the power window and door lock/unlock switch RH finisher (2).

   Courtesy of NISSAN

   : Pawl

INSTALLATION

Installation is in the reverse order of removal.
