Exploded View

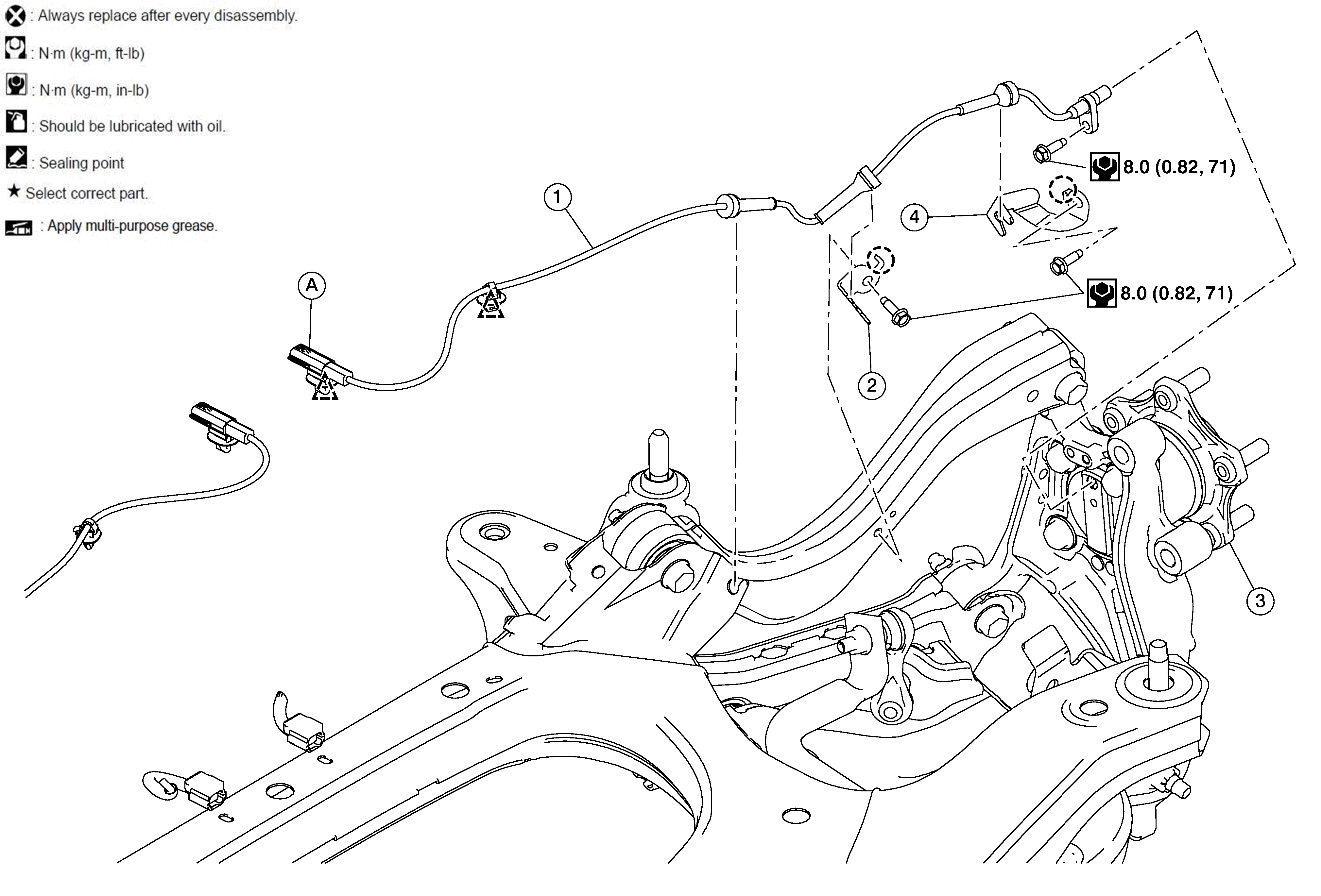

Fig 1: Rear Wheel Sensor With Torque Specifications

Courtesy of NISSAN

1.	Rear wheel sensor	2.	Sensor bracket [LH/RH (inboard)]	3.	Wheel hub assembly (Bearing-integrated type)
4.	Sensor bracket [LH/RH (outboard)]	A.	Harness connector		Pawl
	Clip
