Removal and Installation

REMOVAL

CAUTION:

Before servicing, turn the ignition switch OFF, disconnect both battery terminals and wait at least three minutes.
Do not use air or electric tools when removing or installing the combination switch.

Remove the chassis control module (with built in steering angle sensor). Refer to Removal and Installation .

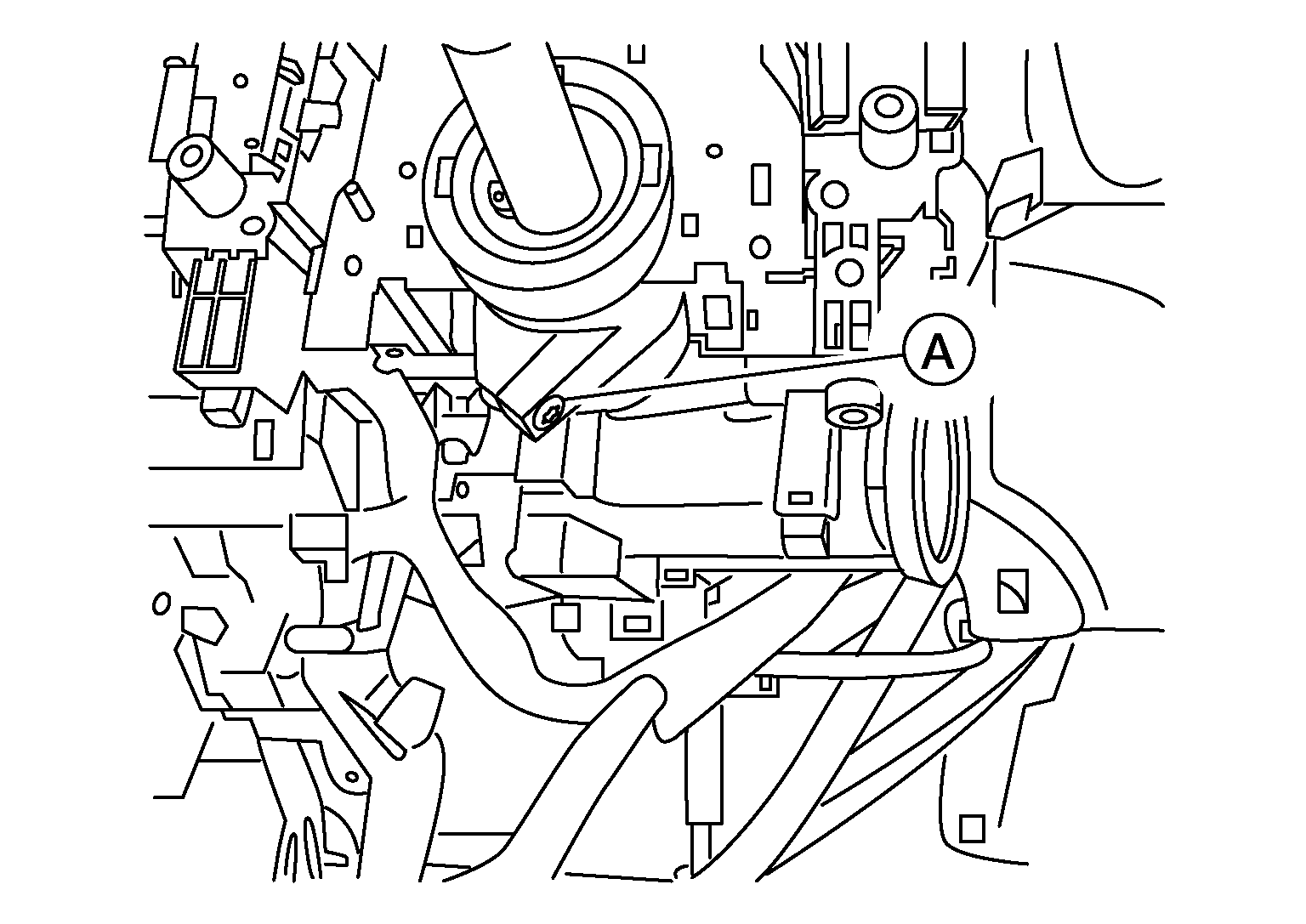

Loosen screw (A).

Courtesy of NISSAN
Disconnect the harness connector from the combination switch and remove.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After the work is completed, make sure no system malfunction is detected by air bag warning lamp.
In case a malfunction is detected by the air bag warning lamp, reset with the self-diagnosis function and delete the memory with CONSULT.
If a malfunction is still detected after the above operation, perform self-diagnosis to repair malfunctions. Refer to Description .
